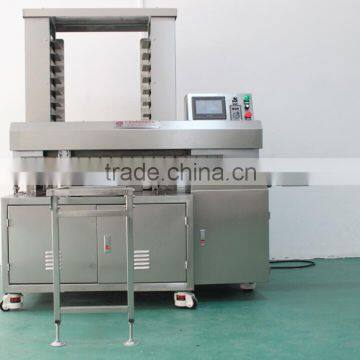

Multi-function High Speed Automatic Tray Aligning Conveyor Machine

Product Application

The utility model discloses an automatic tray arrangement machine with a transformer frame. The automatic tray arrangement machine comprises a rack, a first clamp, a second clamp, a tray placement mechanism, a horizontal movement mechanism and a feeding mechanism. The first clamp and the second clamp are both arranged on the horizontal movement mechanism, and the horizontal movement mechanism and the tray placement mechanism are arranged on the rack. Due to the fact that the tray placement mechanism can automatically recognize the height of empty boxes and full boxes according to the boxing condition of the transformer frame, a left lifting plate and a right lifting plate ascend or descend respectively, discharging of a plurality of packaging boxes can be achieved at a time, and production efficiency is high. Discharging,trays moving and other procedures are automatically completed through the first clamp and the second clamp, and the automation degree is high.

The advantages

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) More than 20 forming dies available

4) Easy to use,Saves time in the production process，Compact, it is easy to fit into a bakery

5) Ideal for creative bread making production，Exceptional bread-making quality

Machine Parts

Name: PLC controll panel

Brand: Mitsubishi

Original: Japan

working stable, easy operation, store 200 program.long usage life time.

Name:Servo motor
Brand:sidakong
Original: taiwan
1, Achieve a closed-loop control of position,

2. high-speed performance,generally rated speed can reach 2000 to 3000 rpm; 3, anti-overload strong, able to withstand three times the rated torque load,4,  Suitable for high-speed response requirements of the occasion; 5, heat and noise significantly reduced.

Name: motor
Original: China
Domestic famous engines, strong driving force,high economic benefits

Name: Inductance transducer
Brand: RIKO
Original: TAIWAN
large LED indicator, clearing checking working operation.

sensing distance:25mm.

Operating voltage:DC12-24V
