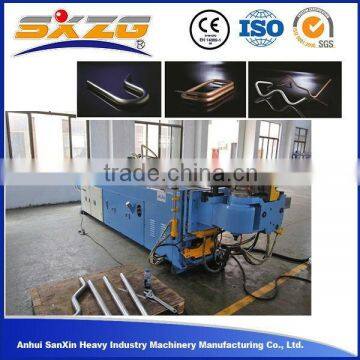

DW50 Single Head Cnc Copper Tube Bending Machine
US$ 4,000 - 10,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Single-head nc Rule Tube Bending Machine Factory
-
High Precision Single-head Cnc Rolling Pipe Bending Machine nc Pipe Bending Machine
-
High Quality Single-head nc Tube Rolling Machine Supplier
-
Single-head Pipe Rolling Machine Manufacturer From Anhui Sanxin
-
CE, ISO and SGS Ceritification Single-head Pipe Rolling Machine Price
-
Export to America Single-head Tube Roll Bending Machine Pipe Bending Machine
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | SXZG | Model Number | DW50NC | |
| Machine Type | Pipe and Tube Bending Machine | Raw Material | Pipe | |
| Material / Metal Processed | Carbon Steel | Power | Other, Hydraulic, 5.5KW | |
| Automation | Automatic | Extra Services | End Forming | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

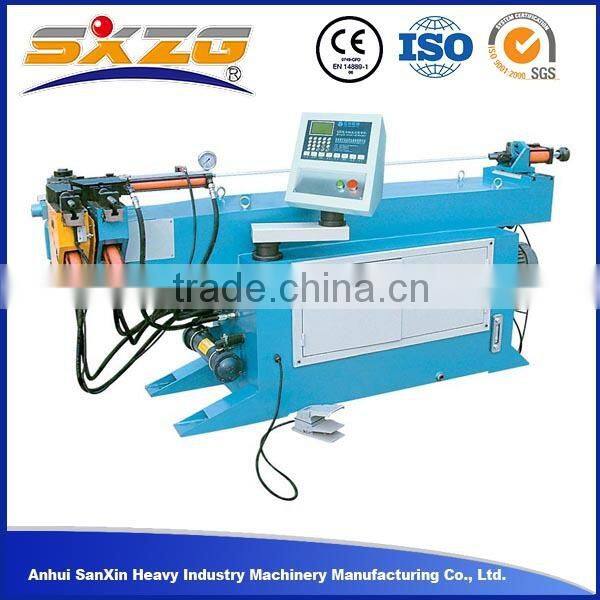

DW50 Single head cnc copper tube bending machine
Machine specification:
| No. | Name | Unite | Parameter | Note |
| 1 | Max bending capability | mm | Φ50×3 | |
| 2 | Max bending radius | mm | R350 | According to customer |
| 3 | Min bending radius | mm | According to diameter | |
| 4 | Max bending degree | Degree | 190 | |
| 5 | Max effective distance of mandrel | mm | 2200 | According to customer |
| 6 | Control system | NC Control | ||
| 7 | Max elbow bend pipe | 16 | ||
| 8 | Max storable sections | 16 ×16 | ||
| 9 | Motor power | Kw | 5.5 | |
| 10 | Max hydraulic pressure | Mpa | 12 | |
| 11 | hydraulic system control | Electromagnetic valve | Japan Yuken | |
| 12 | Oil tank capability | L | 150 | |
| 13 | Measurement | mm | 3000 ×700 ×1030 | |
| 14 | Weight of machine | Kg | 1220 |
Machine peformance:
| 1. Automatic recognition of power in machine and work piece, the processing is both quick and good |
| 2. Slow returning core, boosted by barrow, imporving the apprearance of the angle. |
| 3. The whole operation is in the computer, simple, quick and correct |
| 4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct |
| 5. Rebound test: comparison test on the features of lots of pipe materials |
| 6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies. |
| 7. Automatic drawing of the graphics of dies-clear help to develop new products |
| 8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles |
| 9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production |

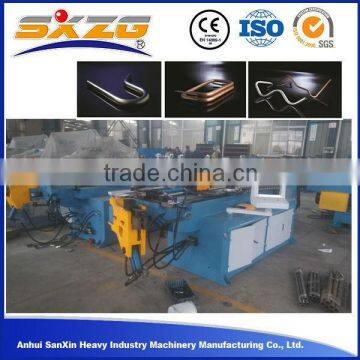

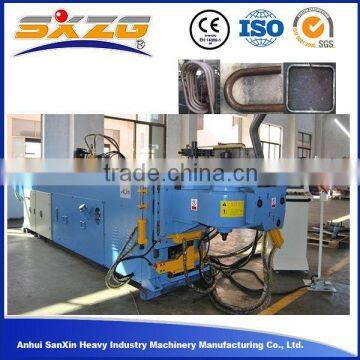

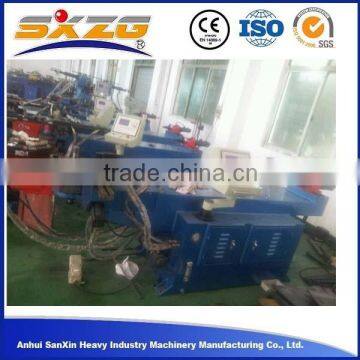

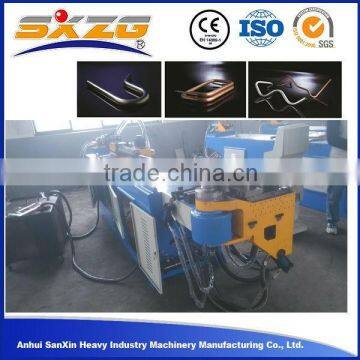

Machine details

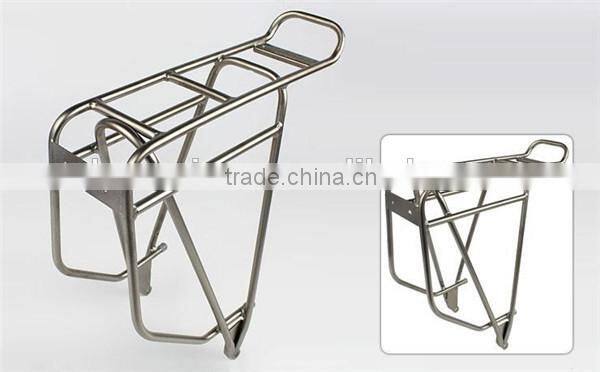

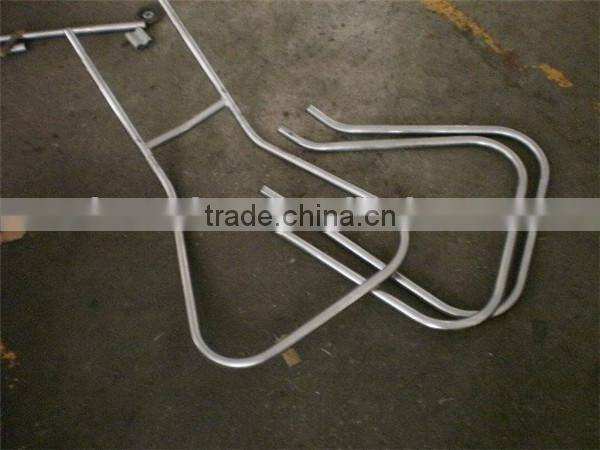

Bending samples
Our service
| 1. Quality Guarantee |
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making) Machine warranty is 2 year. We offer flexible extended warranties if needed. |
2. Installation and Training Service |
| Our engineer is available to your factory and offer installation and training service. As well, you may send your engineers to our company to learn how to operate machines. |
Any questions, free to contact us
