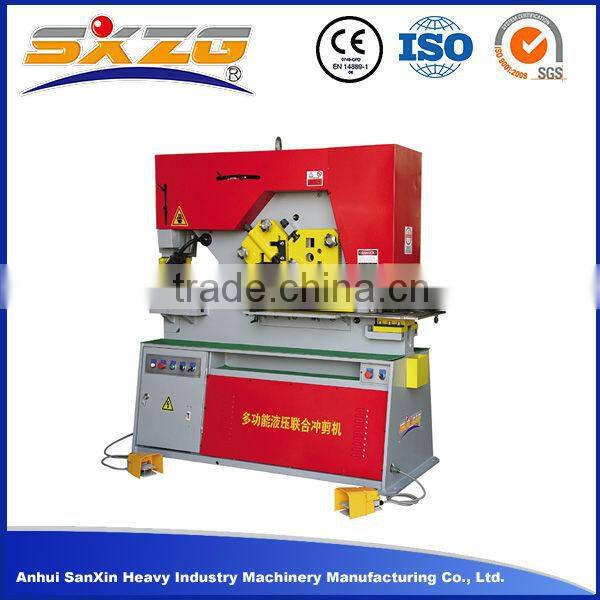

Mechanical Ironworker Machine for Sale
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Punching and Shearing Machine for Sale, Ironworker Manufacturer
-
Punch and Shear Machine Manufacturer From Anhui
-
Ironworker Rates, Ironworker With ISO Certification, Punching Machine
-
High Quality Hydraulic Ironworker With CE
-
Hydraulic Ironworker Machine Factory and Trader
-
Q35Y-30 Machine Bender Flat Iron Ironworker Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Hydraulic | Place of Origin | Anhui, China | |
| Brand Name | SXZG | Model Number | Q35Y-30 | |
| Voltage | 220V or 380V | Power(W) | 11kw | |
| Weight | 6800kg | Dimension(L*W*H) | 2680*1040*2300mm | |
| Certification | CE, ISO | Warranty | 3 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
mechanical ironworker machine for sale
Specifications

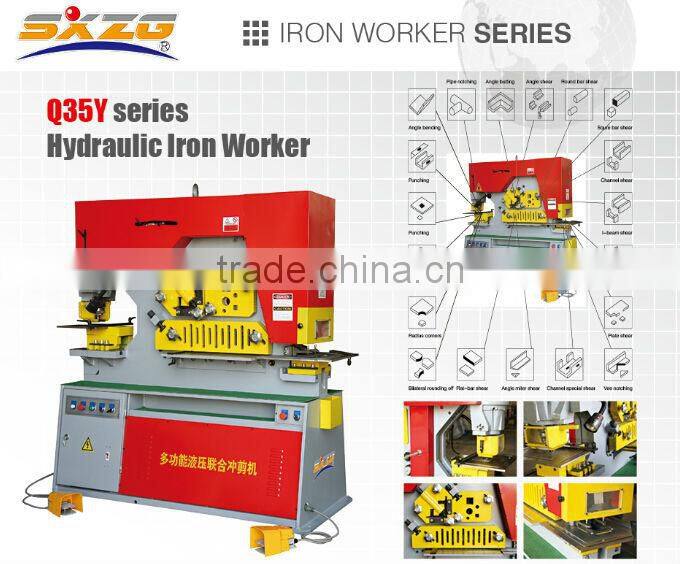

1. Q35Y-30 Multifunctional Hydraulic combined aluminum punching and shearing machine
2. Competitive price
3. Stable performance
4. Fast delivery
Features
1.Whole structure of the hydraulic iron worker: |
| 1.Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. |
| 2. SanxinIndustrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come |
| 3. The machine by the European Union CE certification and ISO quality system certification |
2. Hydraulic system: |
| 1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from |
| 2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance |
| 3. Being able to work under rated load continuously,stable working and high precision. |
3. Machine Blade: |

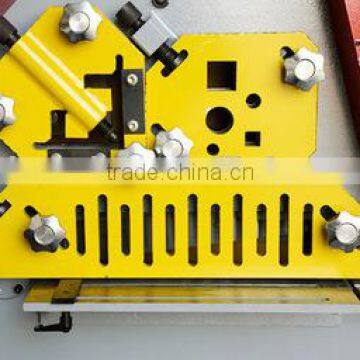

| 1. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades SKD11 quality. |
4. Electrical system and the safety interlock: |
| 1. Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet. |
| 2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. |
| 3. Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation |

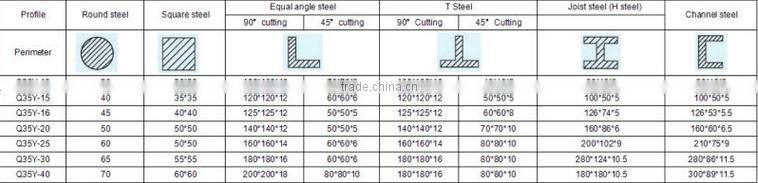

Technical parameter
Model | Q35Y-12 | Q35Y-15 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 |
Pressure(Ton) | 45 | 55 | 60 | 90 | 110 | 140 | 200 |
Max cutting thickness | 12 | 15 | 16 | 20 | 25 | 30 | 40 |
Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
Cutting angle | 7° | 7° | 7° | 8° | 8° | 8° | 8° |
Cuttings size of one stroke (thickness x width)(mm) | 12*250 | 15*300 | 16*250 | 20*330 | 25*330 | 30*355 | 35*400 |
Slide strokes | 60 | 60 | 80 | 80 | 80 | 80 | 100 |
Number of strokes/min | 8 | 8 | 8 | 8 | 6 | 6 | 8-25 |
Throat depth(mm) | 200 | 200 | 300 | 355 | 400 | 600 | 600 |
Punching thickness(mm) | 12 | 15 | 16 | 20 | 25 | 26 | 35 |
Max punching diameter(mm) | 22 | 24 | 25 | 30 | 35 | 38 | 41 |
Main motor(KW) | 3 | 4 | 4 | 5.5 | 7.5 | 11 | 15 |
Overall dimension (L*W*H)(cm) | 120*52*150 | 132*59*162 | 164*73*177 | 186*80*190 | 235*96*209 | 268*104*230 | 285*130*240 |
Machine weight(KG) | 1000 | 1400 | 1600 | 2500 | 4500 | 6800 | 9500 |

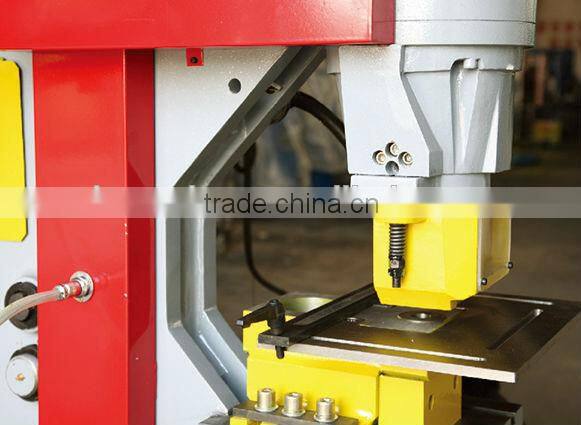

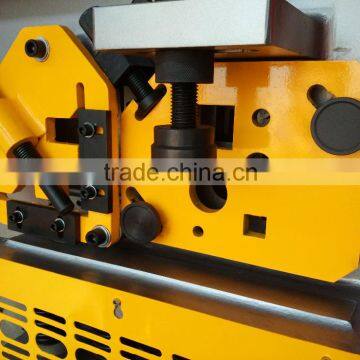

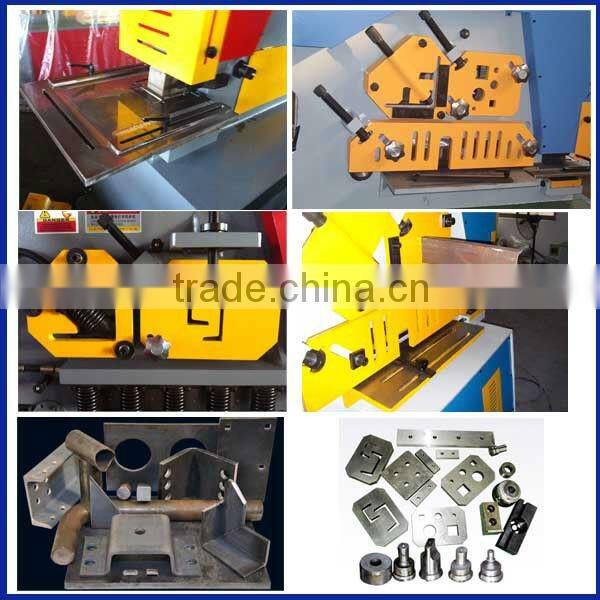

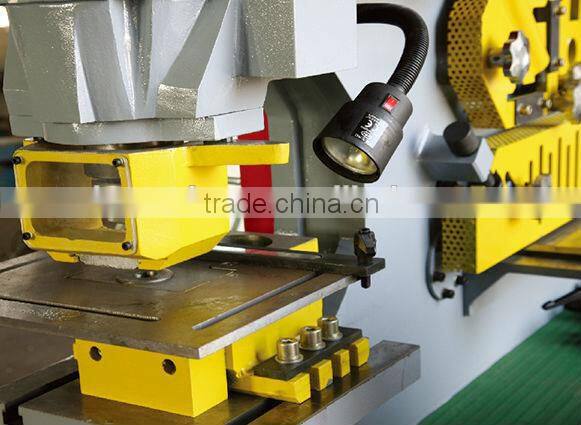

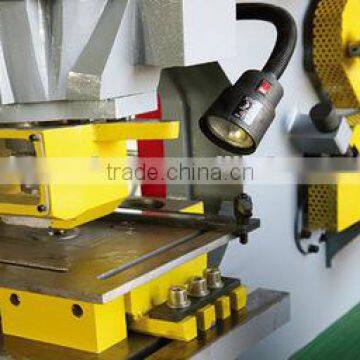

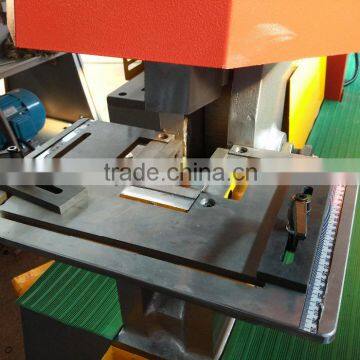

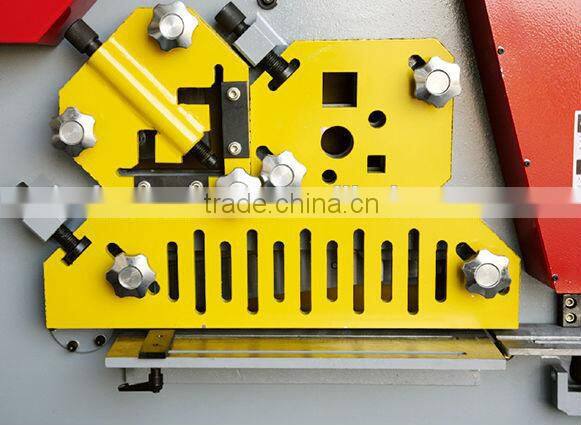

Pictures

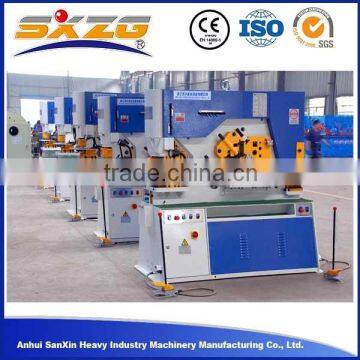

Producing Capacity
Any questions, feel free to contact us:
| 1. Company name: Anhui Sanxin Heavy Industry Mechinery manufacturing Co.,ltd |
| 2. Brand: SXZG |
| 4. Phone: +0086-555-8358750 Tel: +0086-15655560053 |
| 5. Email: Ann(at) whatsapp: 008615655560053 |
| 6. Skype: annyshen5 QQ: 2860861986 |
| 7. Website: |
