pu injection machine

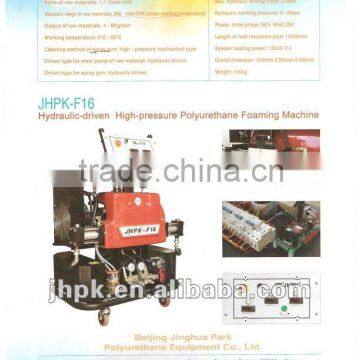

JHPK-F16 polyurethane foaming equipment is the newly series of foaming equipment that launched by Beijing Jinghua Park Polyurethane Equipment Co.Ltd.

Technical Parameter

Raw Material Proportioning: 1:1 constant proportion

Viscosity range of raw materials: 200~1000CPS (under the operating temperature)

Output: 4~8kg/min

Operating temperature: 0~60

The way of cleaning the perfusion gun: High-pressure machine cleaning

The way of driving the main raw material pump:

The way of driving the perfusion gun: Hydraulic Driven

Maximum hydraulic driving power: 21Mpa

Hydraulic working pressure: 6~8 Mpa

Electrical requirements: 3-phase, 4-line 380v, 50Hz, 20A

The length of material heating pipe: 12000mm

The power of system heating: 1250w×2

Weight: 1040mm×950mm×600mm

The weight of shipping: 240kg

Compared with the material pump pushing vertically of the traditional equipment, its unique hydraulic driven material pump pushing parallel has solved the problem of seals are damaged by the tilted pump caused by the uneven pressure of two material pumps.

The complete, closed, immersed and lubricated material pumps of isocyanate have completely against the air. It has solved the problem that isocyanate crystallizes when comes to the water.

The external heating way of pipe line with ultra thin flat copper wires increases the pipe power so the speed of pipe heating is faster, and the function of heat preservation is more perfect.

Simple, compact machine layout makes the equipment decorous and fashionable. Simple and intuitive operating mechanism saves the steps of resetting the machine over and over again.
