Home > Products > polyurethane spray foam machine > polyurethane injection equipment JHPK-F16 for packaging

polyurethane injection equipment JHPK-F16 for packaging

FOB Price

US$ 6,800 - 8,000 / Set

1 Set(Min. Order)

Port Tianjin

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Other, foam
Place of Origin	Beijing, China	Brand Name	JHPK
Model Number	JHPK-F16	Voltage	380v
Dimension(LWH)	1180mm890mm1140mm
Weight	322kg	Certification	CE
Warranty	one year	After-sales Service Provided	Overseas third-party support available

Product Description

Packaging & Shipping

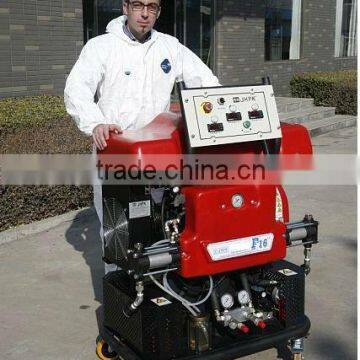

JHPK-F16 polyurethane foaming equipment is the newly series of foaming equipment that launched by Beijing Jinghua Park Polyurethane Equipment Co.Ltd.

Compared with the traditional material pump pushing vertically of the traditional equipment, its unique hydraulic driven material pump pushing parallel has solved the problem of seals are damaged by the tilted pump caused by the uneven pressure of two material pumps.

The complete, closed, immersed and lubricated material pumps of isocyanate have completely against the air. It has solved the problem that isocyanate crystallizes when comes to the water.

The external heating way of pipe line with ultra thin flat copper wires increases the pipe power so the speed of pipe heating is faster, and the function of heat preservation is more perfect.

Simple, compact machine layout makes the equipment decorous and fashionable. Simple and intuitive operating mechanism saves the steps of resetting the machine over and over again.

Technical Data:
Raw Material Proportioning: 1:1 constant proportion Viscosity range of raw materials: 300~1000CPS (under the operating temperature) Output: 4~8kg/min Operating temperature: 0℃~60℃ The way of cleaning the perfusion gun: High-pressure machine cleaning The way of driving the main raw material pump: Hydraulic Driven The way of driving the perfusion gun: Hydraulic Driven Maximum hydraulic driving power: 21Mpa Hydraulic working pressure: 6~8 Mpa Electrical requirements: 380v, 50Hz, 20A The length of material heating pipe: 12000mm The power of system heating: 1250w×2
Technical Data:
Dimension: 1040mm×950mm×600mm Weight: 240kg

Our Services

overseas third-party support available
