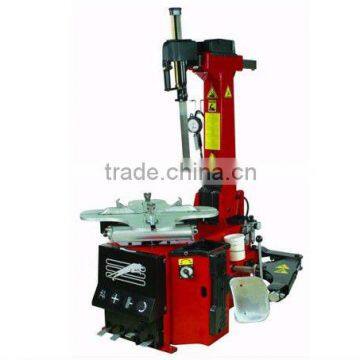

FASEP Tire Changer RASE2031

Specifications

FASEP Tire Changer RASE2031

RASE.2031 Super-automatic up to 26" is super automatic tire changer, particularly recommended for oversize and racing tires and designed for tire specialists. It has an oversized body and it is suitable for car and motorcycle wheels having rim size from 12" to 26" (max. wheel width 410 mm. / 16").

Tilt-back mounting arm

The oversized mounting arms tilts back pneumatically by pedal control. Operation is made easy with tilt-back mounting arm as it can be fully operated hands-free.

Mounting head with 3-position pneumatic control.

Low profile mounting head, especially designed to operate on low profile tires. Mounting head is pneumatically controlled: 3-positions pneumatic control allows lift, descent and lock. The lock position simultaneously adjust mounting head with both vertical and horizontal clearance (height and diameter) from the rim.

Mounting head is also pneumatically lifted.

Other mounting heads and a quick adapter are available as accessories.

Low profile mounting head.

Specially designed to operate on low profile tires, the mounting head is equipped with special Teflon inserts to protect alloy rims against accidental scratches.

2-speed motor.

The tyre changer is equipped with a 2-speed bi-directional motor (3Ph version only) with speed selector.

Bead Breaker.

Oversized pneumatic bead breaker with double-effect cylinder and stroke adjuster. The bead breaker has a specially designed parallelogram movement, to keep a constant angle on tyre bead and prevent any damage to the rim during bead breaking operation.

Special accessories for Run-on-Flat tires.

Optionally, the tire changer can be equipped with HELP and PRESS devices to ease mounting and demounting of low profile tires.

Pedal-controlled inflator (option)

The tire changer can be equipped with pedal controlled inflation.

Built-in roller pad (option).

The tire changer can be equipped with a built-in roller pad to ease bead-breaking operations.

Technical Data:
