HZ-3915 Portable LCD display resistance battery checker

HZ-3915 Portable LCD display resistance battery checker

Portable LCD display resistance battery checker FUNCTION:

1.  Measure the battery voltage and the internal resistance of the monomers

2.  Can automatically estimate the battery capacity

3.  Battery failure alarm

4.  Can communicate with the host computer for data transfer

5.  Data can be saved , query and delete various operations

6.  PC- analysis software to upload data to a variety of operations , including data classification storage, query , and delete , etc., can generate the file , you can file the freedom to operate, you can also back up the database , store an unlimited amount of data to achieve a theoretical , through a variety of charts for data analysis and display , and battery test reports can be automatically generated , the operation is simple and convenient.

Portable LCD display resistance battery checker Advantage:

1.  Entirely online single cell voltage and resistance measurements , the measurement process without the battery discharges, easy to use.

2.   Automatic estimation of battery capacity , intelligent data processing, the data can be a variety of operations , easy maintenance personnel for analysis and processing.

3.   With fault alarm function , to detect battery operation failure . When the upper resistance and voltage monitor settings beyond or below the lower limit, the instrument sound and text alarm.

4.   Measuring parameters of high precision, strong anti-interference , and good reproducibility. Battery charge and discharge waveforms and switching noise does not substantially affect the resistance accuracy.

5.   Adopted to minimize the influence of the contact resistance of special test clips and special test head , and professional protection.

6.   Different height histograms to visualize analog computer interpretation of the results .

7.   Low power consumption , nickel hydrogen battery-powered , easy -powered, and can display the battery power supply , can work for six hours .

8.   There are powerful PC analysis software for data analysis and processing. Various chart shows , and can automatically generate test reports.

Portable LCD display resistance battery checker Parameters:

Measurement Range:

Internal Resistance:0.0mΩ--100mΩ  Valtage:0.000v--16v

Minimum Measurement Resolution

Internal Resistance:0.01 mΩ  Valtage:1mV

Measuring  Accuracy

Internal Resistance:±2.0%rdg±6dgt  Valtage:±0.2%rdg±6dgt

Display:240*320 24bit 3.5 Inches TFT LCD + touch screen

Dimension:190mm*100mm*30mm  Weight:0.5KG

Memory Capacity:16M Byte FLASH

Working Power:Rechargeable lithium battery, full of working 5 ~ 6 hours

External Power Source

AC100~240V/DC8.4V-1A power adapter/charger

Communication Interface:USB interface (can plug USB)

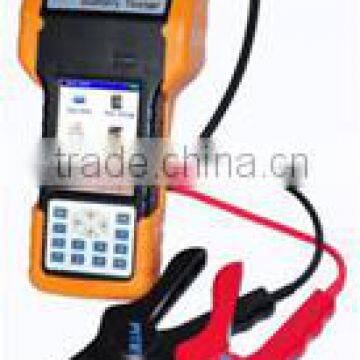

Details of Portable LCD display resistance battery checker:
