Home > Products > Steel Profile > Steel Beam H Beam 200x100 h Beam Standard Sizes Beam Steel Profile H BEAM STEEL

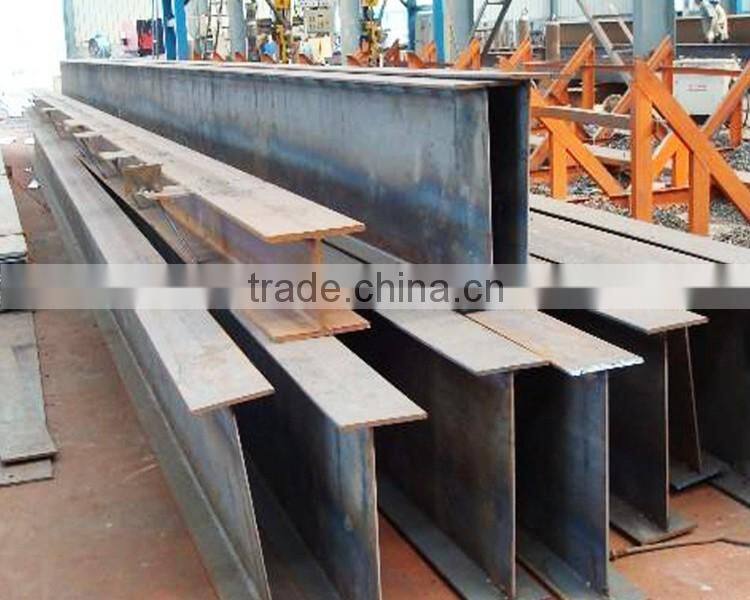

Steel Beam H Beam 200x100 h Beam Standard Sizes Beam Steel Profile H BEAM STEEL
- Tianjin China
- T/T
You May Like
-
Steel Beam H Beam 200x100 h Beam Steel Supplier H Beam Steel Structure H BEAM PRICE
-
Steel Beam H Beam 200x100 h Beam Steel Supplier H Beam Steel Structure H BEAM STEEL
-
China Supplier Square Steel Bar Steel Section
-
China Supplier Price per Square Meter of Steel Square Bar
-
China Supplier Square Steel Hardened Steel Squares
-
China Supplier Steel Hollow Square Bar Square Solid Steel Bar
Product Details
| Place of Origin | Tianjin, China | Grade | Q235 | |
| Technique | Welded | Thickness | 4.5mm-50mm | |
| Application | Construction | Length | Customer's Requirement | |
| Standard | ASTM | Flange Width | 50-400mm | |
| Flange Thickness | 8mm-70mm | Web Width | 100mm~900mm | |
| Web Thickness | 6mm-45mm | Brand Name | Emerson | |
| Model Number | H-Beam |
Product Description
H Beam Steel,H Beam Bar,Steel H Beam,Various Sizes H Beam,Hot Sale H Beam Steel,H Beam High Quality
Chemical Composition & Mechanical Property
Standard | Grade | C max | Mn max | Si max | P | S | Yield strength max | Tensile strength | Elongation% |
JISG3101 | SS400 | 0.22 | - | 0.30 | 0.045 | 0.030 | 245 | 400-500 | 26 |
GB700 | Q235B | 0.14-0.22 | 0.30-0.65 | 0.30 | 0.045 | 0.030 | 235 | 375-460 | 21-26 |
ASTM | A36 | 0.24 | - | 0.40 | 0.045 | 0.030 | 250 | 400-52 | 26 |
EN10025 | S235JR | 0.22 | 1.50 | --- | 0.045 | 0.045 | 175Mpa | 340-510 Mpa | 17 |
| Products | SS400/A36/Q235 Steel H Beam Structural |
| Type | HW,HM,HN,HT,HU,with hot dip galvanized or without galvanzied or coated |
| Standard | ASTM,JIS,BS,EN,DIN |
| Material | Q235,Q345,SS400,St35,St37,A36,S235JR,etc |
| Length | 5.8m, 6m, 12m, or as the customers’ required |
| Delivery Time | Prompt delivery according to the order quantity |
| Payment Term | T/T,L/C |
| Package | bags,bundled by steel strip,wooden case,etc |
Common H Beam Sizes
Steel Beam H Beam 200x100 h beam Standard Sizes Beam Steel Profile H BEAM STEEL
| Sizes (H×B) | Sizes mm | ||||
| H×B | t1 | t2 | r | ||
| HW | 100×100 | 100×100 | 6 | 8 | 10 |
| 125×125 | 125×125 | 5.5 | 9 | 10 | |
| 150×150 | 150×150 | 7 | 10 | 13 | |
| 175×175 | 175×175 | 7.5 | 11 | 13 | |
| 200×200 | 200×200 | 8 | 12 | 16 | |
| #200×204 | 12 | 12 | 16 | ||
| 250×250 | 250×250 | 9 | 14 | 16 | |
| #250×255 | 14 | 14 | 16 | ||
| 300×300 | #294×302 | 12 | 12 | 20 | |
| 300×300 | 10 | 15 | 20 | ||
| 300×305 | 15 | 15 | 20 | ||
| 350×350 | #344×348 | 10 | 16 | 20 | |
| 350×350 | 12 | 19 | 20 | ||
| 400×400 | #388×402 | 15 | 15 | 24 | |
| #394×398 | 11 | 18 | 24 | ||
| 400×400 | 13 | 21 | 24 | ||
| #400×408 | 21 | 21 | 24 | ||
| #414×405 | 18 | 28 | 24 | ||
| #428×407 | 20 | 35 | 24 | ||
| #458×417 | 30 | 50 | 24 | ||
| #498×432 | 45 | 70 | 24 | ||
| HM | 150×100 | 148×100 | 8 | 9 | 13 |
| 200×150 | 194×150 | 6 | 9 | 16 | |
| 250×175 | 244×175 | 7 | 11 | 16 | |
| 300×200 | 294×200 | 8 | 12 | 20 | |
| 350×250 | 340×250 | 9 | 14 | 20 | |
| 400×300 | 390×300 | 10 | 16 | 24 | |
| 450×300 | 440×300 | 11 | 18 | 24 | |
| 500×300 | 482×300 | 11 | 15 | 28 | |
| 488×300 | 11 | 18 | 28 | ||
| 600×300 | 582×300 | 12 | 17 | 28 | |
| 588×300 | 12 | 20 | 28 | ||
| #594×302 | 14 | 23 | 28 | ||
| HN | 100×50 | 100×50 | 5 | 7 | 10 |
| 126×50 | 125×50 | 6 | 8 | 10 | |
| 150×75 | 150×75 | 5 | 7 | 10 | |
| 175×90 | 175×90 | 5 | 8 | 10 | |
| 200×100 | 198×99 | 4.5 | 7 | 13 | |
| 200×100 | 5.5 | 8 | 13 | ||
| 250×125 | 248×124 | 5 | 8 | 13 | |
| 250×125 | 6 | 9 | 13 | ||
| 300×150 | 298×149 | 5.5 | 8 | 16 | |
| 300×150 | 6.5 | 9 | 16 | ||
| 350×175 | 346×174 | 6 | 9 | 16 | |
| 350×175 | 7 | 11 | 16 | ||
| #400×150 | #400×150 | 8 | 13 | 16 | |
| 400×200 | 396×199 | 7 | 11 | 16 | |
| 400×200 | 8 | 13 | 16 | ||
| #450×150 | #450×150 | 9 | 14 | 20 | |
| 450×200 | 446×199 | 10 | 12 | 20 | |
| 450×200 | 9 | 14 | 20 | ||
| #500×150 | #500×150 | 10 | 16 | 20 | |
| 500×200 | 496×199 | 11 | 14 | 20 | |
| 500×200 | 12 | 16 | 20 | ||
| #506×201 | 13 | 19 | 20 | ||
| 600×200 | 596×199 | 14 | 15 | 24 | |
| 600×200 | 14 | 17 | 24 | ||
| #606×201 | 15 | 20 | 24 | ||
| 700×300 | 692×300 | 16 | 20 | 28 | |
| 700×300 | 18 | 24 | 28 | ||
| 800×300 | 729×300 | 16 | 22 | 28 | |
| 800×300 | 18 | 26 | 28 | ||
| 900×300 | 890×299 | 15 | 23 | 28 | |
| 900×300 | 16 | 28 | 28 | ||
| #912×302 | 18 | 34 | 28 | ||
The technical of H Beam
Steel Beam H Beam 200x100 h beam Standard Sizes Beam Steel Profile H BEAM STEEL
Our Services
Steel Beam H Beam 200x100 h beam Standard Sizes Beam Steel Profile H BEAM STEEL
*1.Feedback: Any enquiry and comments will be feedback within 12 hours by email.
*2.Fast delivery,Guarantee.
*3.Common material stock available,we can also cuatomize product special material.
*4.Shipping photo: Shall offer the product photoes after loading into container.
*5.Payment term: Both TT and L/C are acceptable.
*6.Documents: Offer all the relvant professional documents on time.
*7.Service: Give the feedback services after the buyer received the products by email
Other steel product we can offer
Steel Beam H Beam 200x100 h beam Standard Sizes Beam Steel Profile H BEAM STEEL
H beam Packing & Shipping
Steel Beam H Beam 200x100 h beam Standard Sizes Beam Steel Profile H BEAM STEEL
Tianjin Emerson Commercial and Trade Co.,Ltd located in Baodi District, Tianjin, China, mainly provide stock steel plate and sheet and processed steel plate. The processing plates conclude cutting the larger plate into the small sizes customer demand, cut by drawing, cut to special sizes, weld the cut parts by drawing, also make galvanizing processing or surface painting on the final processed parts. Having large stocks for the carbon steel and low alloy steel plates and sheets, especially have the thick plate and heavy plates on stock, also can provide the special material and large size steel plates, boiler and pressure vessel steel plate, marine steel plate, hot rolled steel plate for new production. Also has hollow bars, thick wall seamless pipes and tubes on stock. Tianjin Emerson Commercial and Trade Co.,Ltd can provide good service for customer, good quality products, fast delivery, and after-sale service, Tianjin Emerson hopes to build good cooperation with everyone interested.
