Max. swing over bed: 460mm metal cutting china C6246 lathe machine
- Qing Dao / Shang Hai
You May Like
-
5.5KW ,ISO, CE ,metal cutting china C6246 lathe machine
-
High precision Digital display Economic type C6246 lathe machine
-
Max. length of work piece: 1000mm 1500mm 2000mm C6246 lathe machine
-
Belt driven 305mm mini lathe, bench lathe CZ1224 made in China
-
China hot sale gear driven bench lathe CZ1224G, CZ1237G
-
Gear driven mini lathe, bench lathe CZ1340G, 1000mm length
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 460mm | Place of Origin | Zhejiang, China | |
| Brand Name | FINDMC | Model Number | C6246 | |
| Voltage | 380V 50HZ | Power(W) | 5.5 KW | |
| Dimension(L*W*H) | 275*108*137 cm | Weight | 1810 Kg | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The spindle system with C6246 Chinese Metal Lathe Machine is high in rigidity and accuracy.The design of the main dribe is optimized and the gears in the headstock are precision ground.The noise of the Chinese metal lathe machine is low. There is no need for change gears. Even this Chinese Metal Lathe Machine is basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Ingreasing the application area of this model significantly.
| Item/Model | C6246×1000 | C6246×1500 | C6246×2000 |
| Max.swing over bed | Φ460mm(18") | ||
| Max.swing over cross slide | Φ270mm(8 3/4") | ||
| Max. swing over gap | Φ690mm(27 1/8") | ||
| Length of gap | 165mm(6 1/2") | ||
| Max.length of workpiece | 1000mm(40") | 1500mm(60") | 2000mm(80') |
| Width of bed | 300mm(11 13/16") | ||
| Spindle nose | D1-6 | ||
| Spindle bore | Φ58mm(2-1/4") | ||
| Taper of spindle bore | M.T.#6 | ||
| Range of spindle speed | 12changes25-2000r/min | ||
| Max.travel of compound rest | 128mm(5") | ||
| Max.travel of cross slide | 285mm(11 1/4") | ||
| Leadscrew pitch | metric 6mm | ||
| Max.section of tool | 25mm×25mm(1×1") | ||
| Range of longitudinal feeds | 42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) | ||
| Range of cross feeds | 42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) | ||
| Metric threads range | 41kinds 0.1-14mm | ||
| Inch threads range | 60kinds 2-112 T.P.I. | ||
| Diametrical pitches range | 50kinds 4-112D.P. | ||
| Module piches rang | 34kinds 0.1-7 M.P. | ||
| Dia. of tailstock sleeve | 60mm(2 5/16") | ||
| Travel of tailstock sleeve | 120mm(4 3/4") | ||
| Morse taper of tailstock sleeve | M.T.#4 | ||
| Power of main motor | 5.5kw(7.5HP)3PH | ||
| Power of coolant pump | 0.1kw(8/1HP)3PH | ||
| Ovelall Dimension(LxWxH)cm | 220x108x137 | 275x108x137 | 325x108x137 |
| Net weight/Gross weight(kg) | 1645/1910 | 1810/2115 | 1965/2295 |
| Standard Accessories: | Optional Accessories: |
| 3 Jaw Chuck | Taper Turning Attachment |
| Change Gears Set | Live Center |
| Chasing Dial Indicator | Work Light |
| Reduction Sleeve | Leadscrew Guard |
| Dead Centers | Digital Readout |
| Full Length Splash Guard | Quick Change Tool Post |
| Coolant System | Chuck Guard |
| Brake System | Digital Readout(2 Axis) |
| 4 Jaw Chuck | Drill Chuck+Drill Arbor |
| Face Plate | |
| Steady Rest | |
| Follow Rest | |
| Tool Box&Tools |
Packaging & Shipping
Machine model: C6246 lathe machine
Packaging Details: wooden box for metal lathe.
Delivery Detail: 30 days after order of metal lathe confirmed
Delivery time: 30 days in usual
Payment terms: TT30% down payment, TT70% before the delivery date.
Port: Shanghai
C6246 lathe machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.

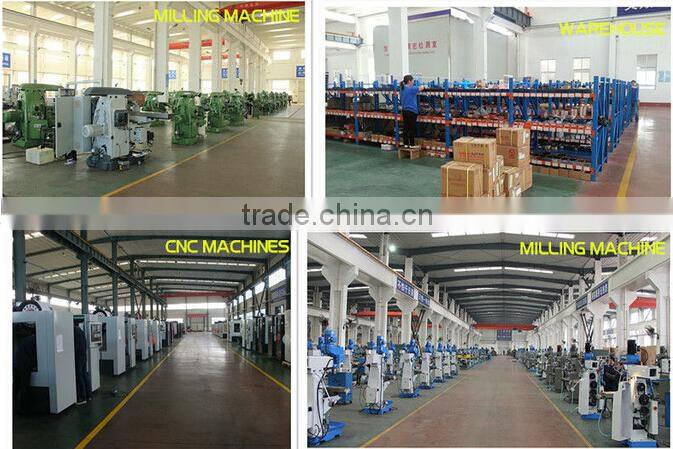

Find Machinery supplys a wide range of products and service to its global customers, including VMC, miling machine, radial drilling machine, lathe machine, CNC engrving machine, HSS annular cutter, TCT annular cutter, rail cutter, steel tools and non-sparking tools. They are widely sold to more than 50 countries and areas in Europe, America, and Middle-east, relying on the reliable product quality, reasonable price and perfect after-sales service system.
Find Machinery follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you to create a bright future.
