Home > Products > Steel Profile > Steel Angle Bar 100x100x7 angle steel bar 100x100x10 angle bar steel with tensile strength of steel angle bar
Steel Angle Bar 100x100x7 angle steel bar 100x100x10 angle bar steel with tensile strength of steel angle bar
- 3000 Ton / Tons per Month
- Tianjin China
- T/T
You May Like
-
Steel Angle Bar hot sale 100x100x12 angle bar steel 110x110x10 steel angle bar v shaped angle steel bar
-
China Supplier steel structure reinforced deformed steel bar steel construction house
Quality Choice
-
China Supplier steel structure reinforced deformed steel bar steel construction turkey
-
China Supplier steel structure reinforced deformed steel bar steel fence
-
China Supplier steel structure reinforced deformed steel bar steel for construction prices
-
China Supplier steel structure reinforced deformed steel bar steel formwork for construction
Product Details
| Standard | AISI, ASTM, DIN, GB, JIS | Dimensions | 20*20*3mm-200*200*24mm | |
| Grade | S235JR-S335JR Series | Place of Origin | Tianjin, China | |
| Brand Name | emerson | Model Number | Q235/Q345/SS400/S235/S275 | |
| Type | Equal | Application | Construction |
Product Description
WHY US
---------You will never be low on supply
With our monthly production capacity of 1000 tons
Chemical Composition & Mechanical Property
Standard | Grade | C max | Mn max | Si max | P | S | Yield strength max | Tensile strength | Elongation% |
Q/BB 107-2009 | Q235B | 0.20 | 1.40 | 0.35 | 0.045 | 0.045 | 205 | 410 | 21 |
Width | 20mm-200mm | |
Length | 1m~6m | |
Package Detail | Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM | |
Delivery Time | 5 days for stock sizes,7-15days for new production sizes | |
Application
Steel Angle Bar 100x100x7 angle steel bar 100x100x10 angle bar steel with tensile strength of steel angle bar
1): Can be used in many fields such as building, automobile, shipbuilding, petrochemical, machinery, medicine, electric power, energy, space, building and decoration, etc.
2): Can be made into mould template, mortise pin, column
3): This kind of steel have good mechanical property, is widely used in structural parts which may support stress alternation, especially made into some connecting rods, bolts, wheel gear...
Theoretical Weight
| Specification | Weight (kg/m) | |
| 2# | 20*20*3 | 0.889 |
| 20*20*4 | 1.145 | |
| 2.5# | 25*25*3 | 1.124 |
| 25*25*4 | 1.459 | |
| 3# | 30*30*3 | 1.373 |
| 30*30*4 | 1.786 | |
| 3.6# | 36*36*3 | 1.656 |
| 36*36*4 | 2.163 | |
| 36*36*5 | 2.654 | |
| 4# | 40*40*3 | 1.852 |
| 40*40*4 | 2.422 | |
| 40*40*5 | 2.976 | |
| 4.5# | 45*45*3 | 2.088 |
| 45*45*4 | 2.736 | |
| 45*45*5 | 3.369 | |
| 45*45*6 | 3.985 | |
| 5# | 50*50*3 | 2.332 |
| 50*50*4 | 3.059 | |
| 50*50*5 | 3.770 | |
| 50*50*6 | 4.465 | |
| 5.6# | 56*56*3 | 2.624 |
| 56*56*4 | 3.446 | |
| 56*56*5 | 4.251 | |
| 56*56*6 | 5.040 | |
| 56*56*7 | 5.812 | |
| 56*56*8 | 6.568 | |
| 6# | 60*60*5 | 4.576 |
| 60*60*6 | 5.427 | |
| 60*60*7 | 6.262 | |
| 60*60*8 | 7.081 | |
| 6.3# | 63*63*4 | 3.907 |
| 63*63*5 | 4.822 | |
| 63*63*6 | 5.721 | |
| 63*63*7 | 6.603 | |
| 63*63*8 | 7.469 | |
| 63*63*10 | 9.151 | |
| 7# | 70*70*4 | 4.372 |
| 70*70*5 | 5.397 | |
| 70*70*6 | 6.406 | |
| 70*70*7 | 7.398 | |
| 70*70*8 | 8.373 | |
| 7.5# | 75*75*5 | 5.818 |
| 75*75*6 | 6.905 | |
| 75*75*7 | 7.976 | |
| 75*75*8 | 9.030 | |
| 75*75*9 | 10.068 | |
| 75*75*10 | 11.089 | |
| 8# | 80*80*5 | 6.211 |
| 80*80*6 | 7.376 | |
| 80*80*7 | 8.525 | |
| 80*80*8 | 9.658 | |
| 80*80*9 | 10.774 | |
| 80*80*10 | 11.874 | |
| 9# | 90*90*6 | 8.350 |
| 90*90*7 | 9.656 | |
| 90*90*8 | 10.946 | |
| 90*90*9 | 12.219 | |
| 90*90*10 | 13.476 | |
| 90*90*12 | 15.940 | |
| 10# | 100*100*6 | 9.366 |
| 100*100*7 | 10.830 | |
| 100*100*8 | 12.276 | |
| 100*100*9 | 13.708 | |
| 100*100*10 | 15.120 | |
| 100*100*12 | 17.898 | |
| 100*100*14 | 20.611 | |
| 100*100*16 | 23.257 | |
| 11# | 110*110*7 | 11.928 |
| 110*110*8 | 13.535 | |
| 110*110*10 | 16.690 | |
| 110*110*12 | 19.782 | |
| 110*110*14 | 22.809 | |
| 12.5# | 125*125*8 | 15.504 |
| 125*125*10 | 19.133 | |
| 125*125*12 | 22.696 | |
| 125*125*14 | 26.193 | |
| 125*125*16 | 29.625 | |
| 14# | 140*140*10 | 21.488 |
| 140*140*12 | 25.522 | |
| 140*104*14 | 29.490 | |
| 140*140*16 | 33.393 | |
| 15# | 150*150*8 | 18.644 |
| 150*150*10 | 23.058 | |
| 150*150*12 | 27.406 | |
| 150*150*14 | 31.688 | |
| 150*150*15 | 33.804 | |
| 150*150*16 | 35.905 | |
| 16# | 160*160*10 | 24.729 |
| 160*160*12 | 29.391 | |
| 160*160*14 | 33.987 | |
| 160*160*16 | 38.518 | |
| 18# | 180*180*12 | 33.159 |
| 180*180*14 | 38.383 | |
| 180*180*16 | 43.542 | |
| 180*180*18 | 48.634 | |
| 20# | 200*200*14 | 42.894 |
| 200*200*16 | 48.680 | |
| 200*200*18 | 54.401 | |
| 200*200*20 | 60.056 | |
| 200*200*24 | 71.168 | |
| 22# | 220*220*16 | 53.901 |
| 220*220*18 | 60.250 | |
| 220*220*20 | 66.533 | |
| 220*220*22 | 72.751 | |
| 220*220*24 | 78.902 | |
| 220*220*26 | 84.987 | |
| 25# | 250*250*18 | 68.956 |
| 250*250*20 | 76.18 | |
| 250*250*24 | 90.433 | |
| 250*250*26 | 97.461 | |
| 250*250*28 | 104.422 | |
| 250*250*30 | 111.318 | |
| 250*250*32 | 118.149 | |
| 250*250*35 | 128.271 |

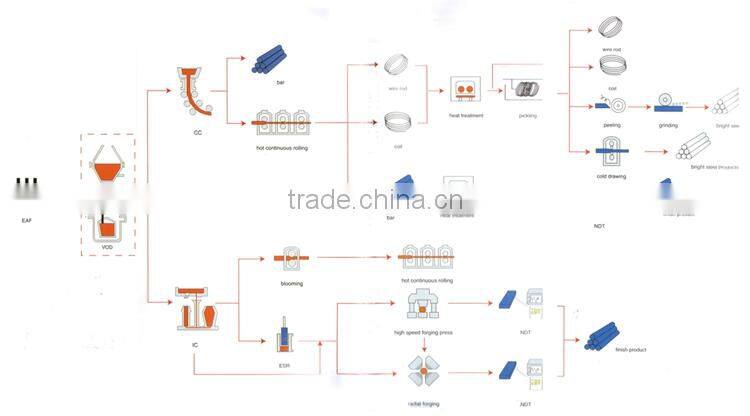

Production Flow Picture
Our Services
Steel Angle Bar 100x100x7 angle steel bar 100x100x10 angle bar steel with tensile strength of steel angle bar
*1.cutting the larger bar into the small piece customer demand,cut to special sizes
*2.can weld by your drawing
Related Product
Packing about our products
Packaging | when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece. |
20 feet container contains dimension | Width under 2300mm, length under 6000mm |
40 feet container contains dimension | Width under 2300mm, length under 12000mm |
By bulk vessel | Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
Detailed Images
1. What is your minimum order quantity?
For steel plate;one piece is ok. For steel pipe;one ton is ok.
Too litter quantity,the cost relatively high added fregiht. Larger quantity, better price.
2.How long will it take to receive my order?
7 days for stock sizes, 20-25 days for new product
3.Which type of shipping do you usually choose?
Packaging | when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece. |
20 feet container contains dimension | Width under 2300mm, length under 6000mm |
40 feet container contains dimension | Width under 2300mm, length under 12000mm |
By bulk vessel | Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
4.Can I visit your company and factory?
100% sure. Our company and warehouse locate in Tianjin, where we can do great marketing and exporting.
If you want to visit us, please contact us to make an appointment.
5.How can I know my order has been done?
We will inspect and test all the goods before shipping.
We can send you pictures of the order; and also you can come or send someone to do the inspection.
