Product Details
| Grade | Q295BZ/Q390BZ/Q420BZ | Dimensions | Various | |
| Standard | DIN, GB, JIS | Place of Origin | Tianjin, China | |
| Brand Name | BOCHI | Model Number | U, Z, HZ, OZ, L/S sheet pile |
Product Description
Hot Sale! High Quality! Different types of Steel sheet piles U type Z type

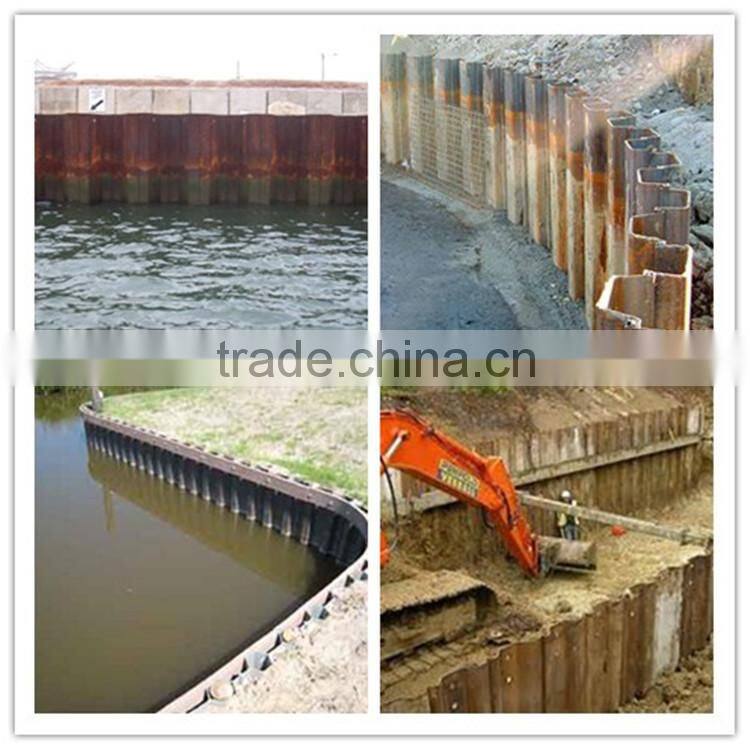

Steel sheet piles are long structural sections with a vertical interlocking system that creates a continuous wall. The walls are most often used to retain either soil or water. The ability of a sheet pile section to perform is dependent upon its geometry and the soils it is driven into. The pile transfers pressure from the high side of the wall to the soil in front of the wall.
There are permanent and temporary applications. Permanent sheet piles remain in the ground and serve as permanent retaining structures. Temporary sheet piles are designed to provide safe access for construction, and are then removed.
Hot rolled and cold formed are two primary methods of manufacturing sheet pile. While there are key differences between these two methods, the most important distinction is the interlock. Since hot rolled sheet piles are produced from steel at high temperatures, the interlock tends to be tighter than its cold formed counterpart. Normally, looser interlocks are not recommended in extremely hard driving conditions or for walls requiring low permeability. Hot rolled sheet piles are generally larger and have a broader range of strengths than cold form sheet piles, but there is a large overlap between the two, especially in the most common sizes.

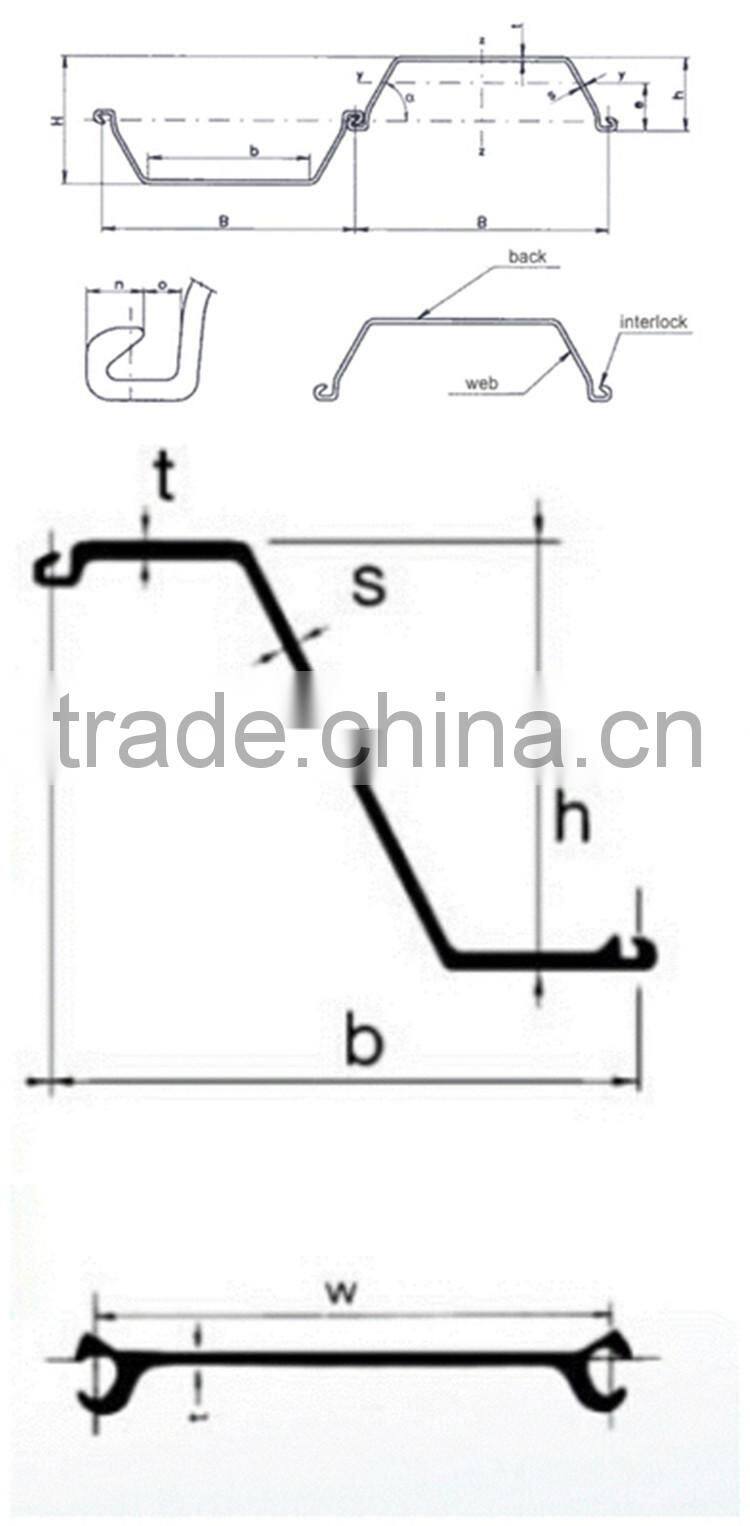

U-Type steel sheet pile
China standard U-type steel sheet pile
GB/T20933-2007
Japan Standard U-stype steel sheet pile
JISA 5523/JISA 5528

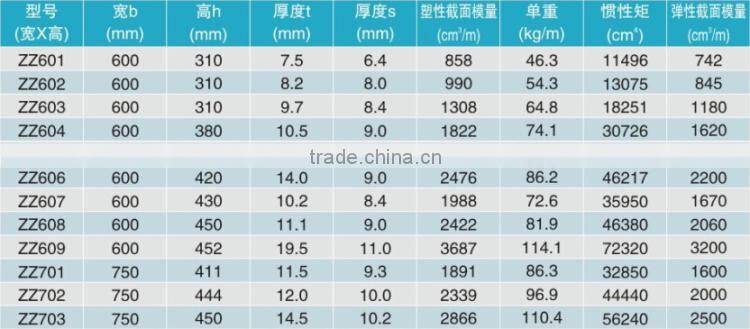

Japan Standard Z-stype steel sheet pile
Japan Standard template steel sheet pile
Europe Standard U-Stype steel sheet pile
Europe Standard U-Stype steel sheet pile
Europe Standard temple steel sheet pile
1. How long can make delivery?
For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.
2. Will the Test Certificate be certified to EN10204 3.1?
For the new production products no need furthur cutting or processing, will provide the Original Mill Test Certificate certified to EN10204 3.1; for the stock products and the products need cutting or furthur processing, will issue Certificate of Quality on our Company, It will show the original mill name and the original datas.
3. Once the received products found not comply with the products the contract demands, what will you do?
Once the received products found not comply with the products the contract lists, when receiving the pictures and the official documents and data from your side, if it is proved not comply, we will compensate the loss at first time.

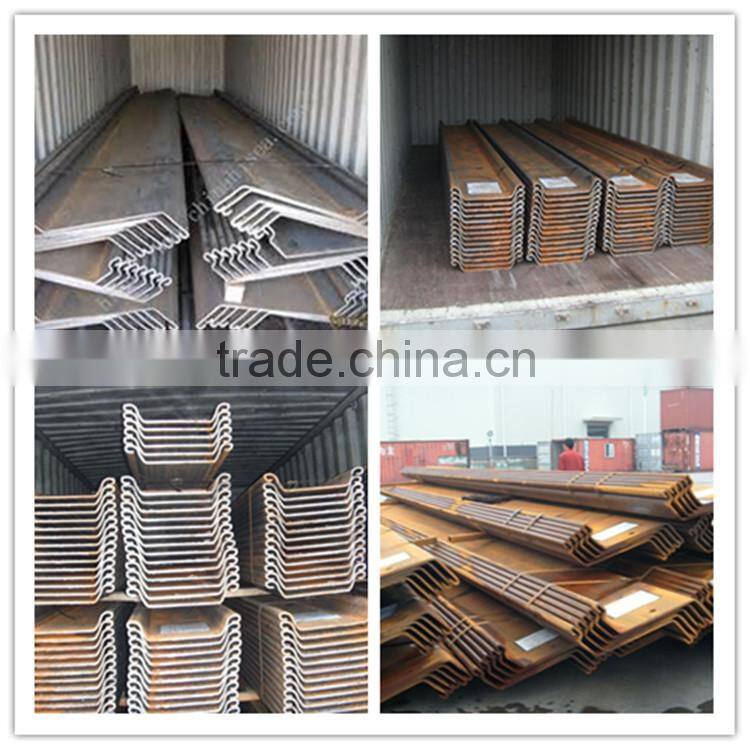

Packaging | when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece. |
20 feet container contains dimension | Width under 2300mm, length under 6000mm |
40 feet container contains dimension | Width under 2300mm, length under 12000mm |
By bulk vessel | Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
Tianjin Emerson Commercial and Trade Co.,Ltd mainly provides steel plate, steel sheet, steel pipe,seamless steel pipe and tube, round bars and steel section, and doing steel products processing service: steel plate and sheet processing service. The processing works concludes cutting the larger plate into the small sizes customer demand, cut by drawing, cut to special sizes, weld the cut parts by drawing, also make galvanizing processing or surface painting on the final processed parts; steel pipe hollow bar cutting and lathe processing to make the outer diameter and wall thickness to meet customers requirement, also make heat treatment for hollow bars and pipes. Tianjin Emerson Commercial and Trade Co.,Ltd has large stocks for the carbon steel and low alloy steel plates and sheets, especially have the thick plate and heavy plates on stock, also can provide the special material and large size steel plates, boiler and pressure vessel steel plate, marine steel plate, hot rolled steel plate for new production.
