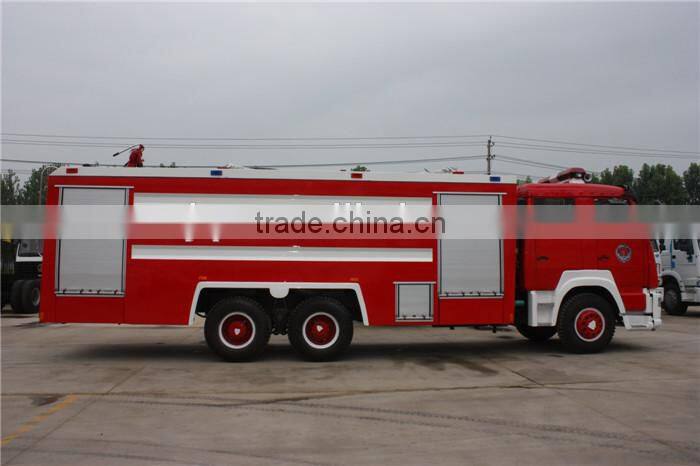

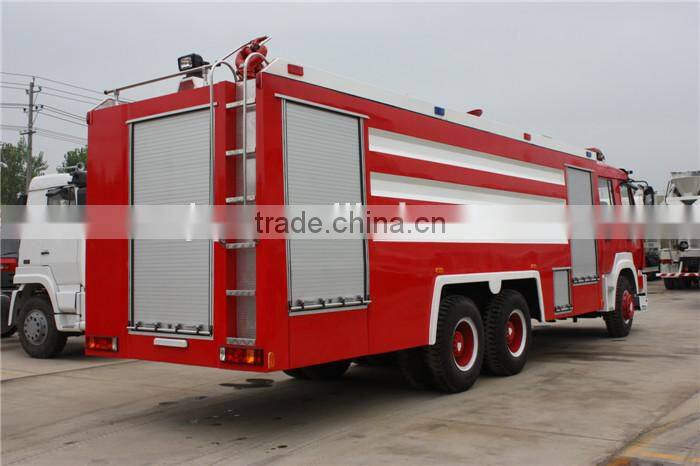

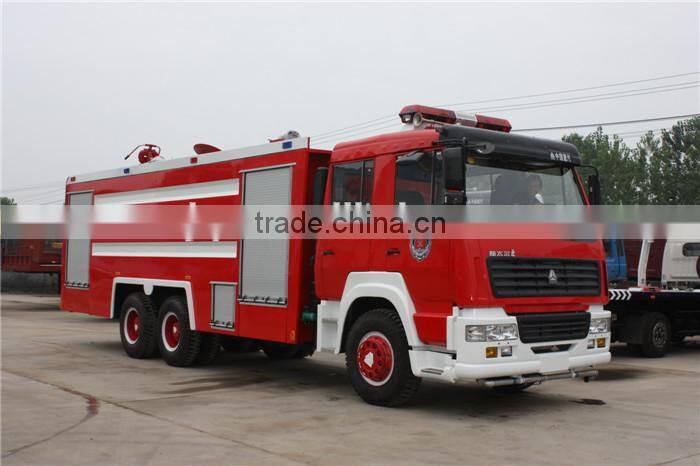

SINOTRUCK STEYR 6*4 Water Tank Fire Truck

(1)  Fire fighting truck:fire-extinguishing water tanker,fire-extinguishing foam tanker,water-foam fire fighting
truck, emergency rescue fire truck and ect.
(2)  Equipped with fire pump,PTO,storage compartment,long-line lights and fire monitor.
(3)  Basic composition:chassis,fire pump,PTO,storage compartment,long-line lights and fire monitor,fire
fighting tools and ect.
(4)  Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. It can
be devided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special
vehicles according to their function.
(5)  Fire Pump: Model: CB10/20 car fire pump, flow rate: 20L / s, and pressure: 1.0MPa
In the low-pressure pump: Model: the CB10.20/20 fire pump, low pressure flow: 40L/s/1.0MPa,
medium-pressure flow: 20L/S/2.0MPa
Fire Gun: Model: PP24-type dual-use fire monitor traffic: 48L/s/1.0MPa water range ≥ 50 m bubble range
of ≥ 45 m.The pitcher Fire gun: Model: SP40, water and a range of ≥ 55 m
(6)  working principle : the body as a whole square tube steel structure, stainless steel water of a tank. The
 front section for the pumping station, the central part of the water of a tank, the rear of the equipment box,
 made of aluminum alloy assembly framework, classification clamping equipment, good looks. Each of the
φ135mm the intake, through four suction pipe at the top of the body from the water absorbent on both sides
of the car. Four outlet of the pump is located on both sides of the pumping station is equipped with a φ80 the
demand valve to control water.



Vehicle main technical information:
Product Name		SINOTRUCK STEYR water tank fire truck
water tank volume		12-15ton
Dimension(L*W*H)		10025×2500×3600mm
Gross weight		27600kgs
Rated capacity		12350kgs
Curb weight		14800kgs
Approaching/Departure Angle		16/13(°)
Front/Rear suspension		1500/2490mm
Max.speed		85km/h
Chassis Parameters:
Chassis Brand		SINOTRUCK
Chassis model		ZZ1257M4647C
Drive type		6X4
Fuel Type		Diesel
Tire Specification		11.00-20,12.00-20
Tire No.		10
Wheelbase		4600+1350,4575+1400mm
Alex No.		3
Leaf Spring No.		10/12,4/12,10/-
Front trend		2022,2041/1830/1830mm
Rear trend		1830/1830mm
Passengers in cab		2+4
Engine Parameters:
Manufacturer		China Heavy Duty Automobile Group
Model		WD615.93E
Horse Power		290HP
Displacement/Power		9726ml/213kw
Emission standard		Euro 3
Special function
fire pump model		CB10/60
fire pump flow		60L/s
fire monitor	model	SP50
	range(m)	≥60
