10X Zoom Lens 1080P Project Night-Vision Outdoor POE Bullet PTZ Camera With Card Slot IR 80M Waterproof

Model

IPCX-SCB405IP-V10-PAA

POE

Yes

With Alarm

Yes

With Audio

Yes

Product name

 2015 New Model CCTV Camera 2MP 10X IP Bullet PTZ Camera IP66 Weatherproof Sony

Sensor

1/2.8" Sony Exmor CMOS Sensor

Effective pixels

1080P(1920X1080)

Zoom

10X optical zoom

Focus lenght

5.1-51mm

Day/night mode

Automatic /multicolour /monochrome

Focus mode

Automatic/ manual

Noise-signal ratio

2D/3D-DNR

Back light compensation

Off/on

White Balance

Automatic/ manual

Electronic shutter

1/25s ~ 1/300000s

Gain control

Automatic/ manual

Min illumination

0lux (IR ON)

Wide dynamic range

Support

Max image

1920*1080(1080P)

Double stream

1080p+D1

 Heartbeat function

 Support

Security mechanism

Password protection, multi user access is controlled

Communications protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6

(SIP,SRTP,optical), ONVIF

Double stream

 Support

Interface

 One network interface, one power input

Infrared lamp

IR View Distance

4 high power array LEDs with IR

IR lamp control

80meters

IR lamp consumption

Automatic  /manual / camera

Pan speed

Pan speed:0.5°~15°/s,speed is settable;pan preset speed:20°/s

Tilt speed

Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s

Rotation

Pan: 250° continuous rotation; Tilt: -5°~55° auto flip

 Preset

256 presets ( Chinese title)

Auto Scan

8 groups, settable boundaries and scan speed

Auto Cruise

8 groups, each with 32 presets with settable time interval

Pattern Tour

4 groups, each with 500 instructions

Video analysis

Support

Auto tracking

Not Support

OSD menu

OSD menu with Chinese and English

Heat dispersion structure

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

DC12V±10%

Levels of protection

IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design

Working temperature

-35-+55

Working  humidity

<90%,No condensation

Consumption

18W Max

Weight

0.92 Kg

Accessory

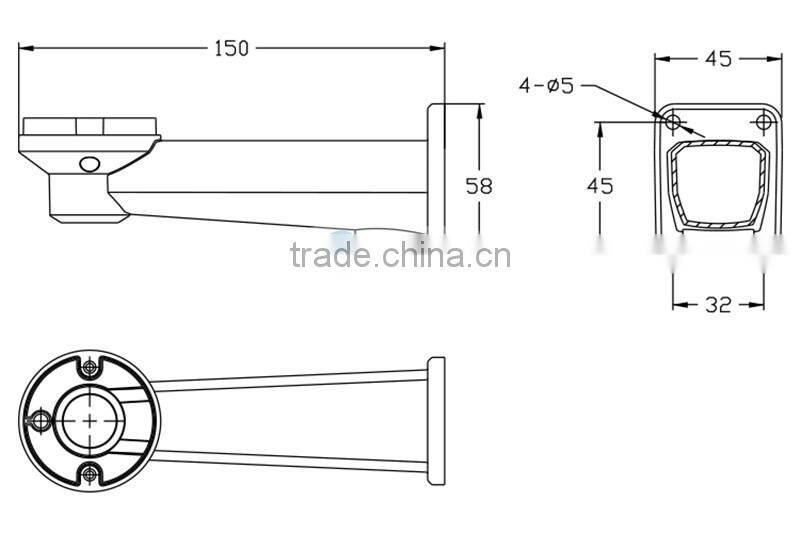

 Wall-mount bracket, DC12V power(not included)
