Home > Products > HD CVI&TVI&AHD Solutions > HDCVI PTZ Camera IR-CUT HD 2MP 1080P 7'' Middle Speed 18X Zoom Outdoor 9*Array Distance IR 120m Camera Auto IRIS
HDCVI PTZ Camera IR-CUT HD 2MP 1080P 7'' Middle Speed 18X Zoom Outdoor 9*Array Distance IR 120m Camera Auto IRIS
- ShenZhen port
- Money Gram Credit Card PayPal
You May Like
-
1.0MP 720P Middle Speed 10X Optical Zoom Camera IR Night-Vision Waterproof Outdoor
-
HDCVI Dome Camera 1080P 2.0MP HDCVI With IR-CUT IR 30M Waterproof/outdoor,4MM Lens,1920*1080 HDMI Output
-
2.0MP 1080P HD CVI CCTV Camera With IR NightVision Waterproof IP66 Outdoor
-
HD CVI CCTV Camera Full HD 25fps 2mp 1080P Waterproof Outdoor Bullet Camera With 2.8-12mm Lens 40M IR Distance
-
IR 20m HD Security Waterproof Night Vision P2P CCTV IP Camera ONVIF IR Cut XMEye
-
Waterproof Night Vision P2P IR Cut XMEye 2MP Bullet IP Camera Outdoor IR 20m
Product Details
| Place of Origin | Guangdong, China | Brand Name | BOAVISION | |
| Model Number | CVI-88C-HB-I-2MP | Type | IP Camera | |
| Style | Other, Dome Camera, hdcvi ptz camera | Sensor | Other, CMOS, 1/3"Ex-view 1.3 Mega Pixel CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description

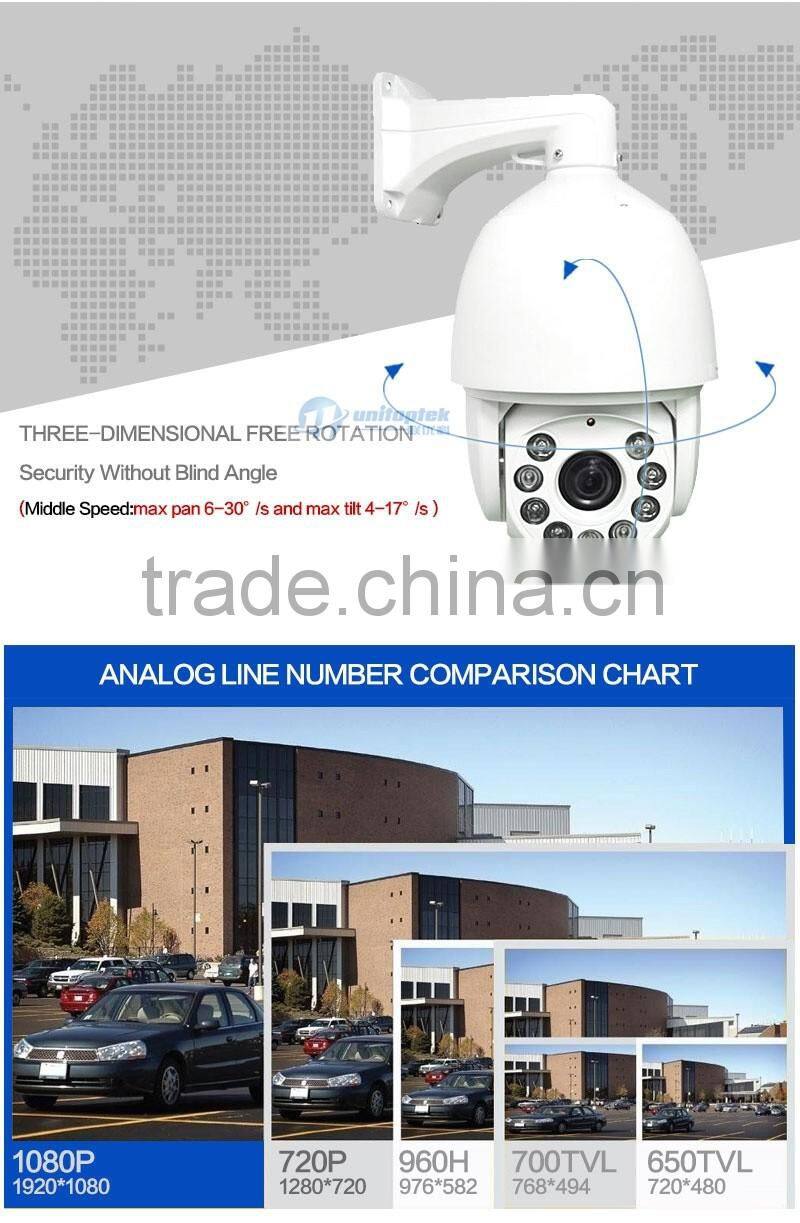

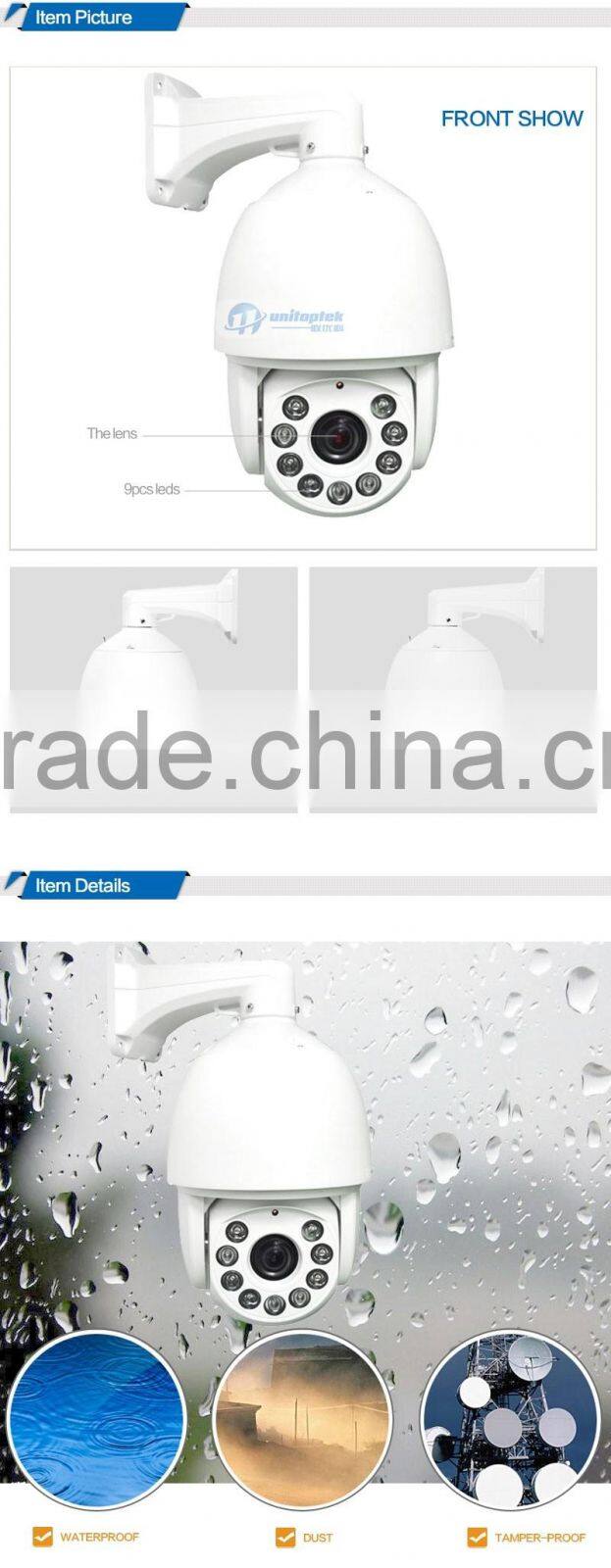

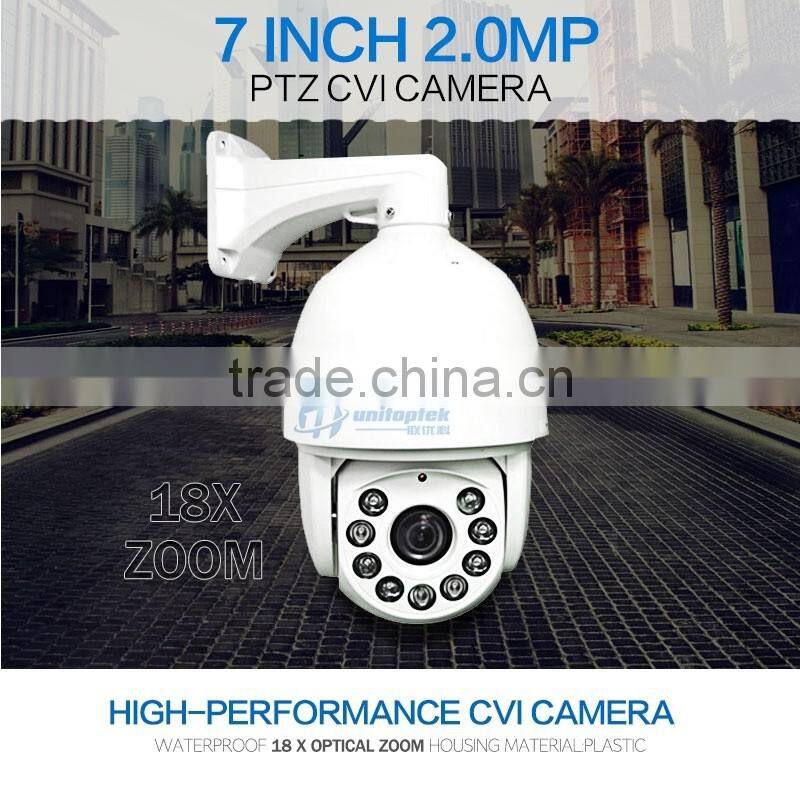

HDCVI PTZ Camera IR-CUT HD 2MP 1080P 7'' Middle Speed 18X Zoom Outdoor 9*Array Distance IR 120m Camera Auto IRIS
Product Introduction:
1/3"CMOS, 18X optical zoom
1). Pan Range: 0°-360°endless
2). Tilt Range: 0°-90°(Auto Flip)
3). rotation speed: Pan:6-30 °/s, Tilt:4-17 °/s
4). Proportional Zoom: Support
5).128 presets, 4 patrols, 1 patterns
6). Weather-proof grade: IP66
7). Focal length:5-90mm
8). IR distance:100m-120m
Application:
It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, etc.
Product Overview:
HD-CVI 2.0MP 1/3”Ex-view Cmos,18X Optical zoom
Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1
degree,
Support lightning protection, anti-surge, anti-surge function;
Protection Grade: IP66
Support Coax cable control,500m transmission distance
PTZ Function:
9 PCS high-power infrared light, no flashlight effect , IR distance 100-120m.
360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area
Pan control speed 6°~30°/s, tilt control speed 4°~17°/s
Support 128 preset 4 patrols, each patrol can contain up to 16 presets ,1 patterns, can totally record up to 100 action.Support AB scan and zone limit.
support Proportional zoom function, rotation speed can be adjusted automatically according to zoom
multiples
Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity(contain the idling condition after the power supply has been turn on)
Note: When the cvi dvr connect ptz dome camera ,It support OSD English Menu only need use the coaxial-cable,and non’t connect RS485 port(amera not including rs485 port )
Specification:
Parameter/Model | CVI-88C-HB-I-2MP(wall mounted) | |
Zoom Module | Image Sensor | 1/3”Ex-view 2.0 Mega Pixel CMOS |
Effective pixels | 1920X1080 | |
illumination | Color: 0.1Lux, B/W: 0.001Lux | |
Image | Pan/Tilt/Pan+Tilt/Off | |
Exposure Mode | Manual/Auto | |
S/N | ≥52dB | |
Back-light compensation | On/off | |
Zone scanning | support | |
Shutter Speed | 1/30-1/30,000s | |
Scanning System | Progressive scan | |
Synchronous | Internal Synchronization | |
Day/Night | Support IR-CUT Color turn Black | |
Focus | Manual/Auto/Auto Focus | |
Lens initialization | Internal | |
Optical zoom | 18 X optical zoom,f=5-90mm | |
Min. Focal Length | 100mm~1000mm | |
Pan Angle of view | H:48°-2.8° | |
penetrate the fog | support | |
PTZ | OSD Menu | No |
IR Distance | 100-120M | |
IR Angle | Following zoom module 3 groups adjust | |
Pan speed | 6°-30°/s | |
Tilt speed | 4°-17° | |
Tilt range | 0°-90°,auto flip180° | |
Manual Speed | High,Middle,Low speed adjustable | |
Proportional Zoom | Support | |
Preset | 128 | |
Patrol | 4,each patrol can contain up to 16 presets | |
Pattern scan | 1,each group can recording 100 action | |
Scan between two presets | support | |
Park Action | Support,Preset Patrol,t,Scan,point scan Auto - Pan | |
Zone Limit | Support | |
Video Output | HDCVI,PAl/NTSC,BNC Cable | |
others | Power supply/Control | DC 12V 4A,RS485 |
Power consumption | Day: 10W ; Night: Max 30W(Without heater) | |
Working Temperature/Humidity | -20-60,≤90%RH(frost less) | |
Protection Grade | TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66 | |
Package dimension(mm) | 300*300*470mm | |
Weight(Kg) | 5.5kg | |


1 x 7 inch Middle speed 1080p ptz cvi Camera
1 X Camera Bracket (standard wall)
1 x User manual & CD
1 x Screws
1 x Power adapter
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
