Full HD 1MP/720P Real-time IR 20M Dome HDCVI Camera With 24Pcs Leds 3.6MM Lens Day&Night Vision Indoor Use
- ShenZhen port
- Credit Card PayPal
You May Like
-
CVI PTZ Camera With IR-CUT HD 2.0MP 1080P 7''High Speed 18X Zoom Outdoor 9*Array IR 120M Dome Camera Auto IRIS Day Vision 500M
-
HDCVI PTZ CCTV Camera 2MP 1080P Middle Speed 10X Optical Zoom Waterproof IR 60M Varifocal Lens
-
HDCVI PTZ Camera IR-CUT HD 2MP 1080P 7'' Middle Speed 18X Zoom Outdoor 9*Array Distance IR 120m Camera Auto IRIS
-
1.0MP 720P Middle Speed 10X Optical Zoom Camera IR Night-Vision Waterproof Outdoor
-
HDCVI Dome Camera 1080P 2.0MP HDCVI With IR-CUT IR 30M Waterproof/outdoor,4MM Lens,1920*1080 HDMI Output
-
2.0MP 1080P HD CVI CCTV Camera With IR NightVision Waterproof IP66 Outdoor
Product Details
| Place of Origin | Guangdong, China | Brand Name | UNITOPTEK | |
| Model Number | CVI-BC293672 | Type | Other, hdcvi camera, CVI Camera | |
| Style | Dome Camera | Sensor | Other, CMOS, 1/2.9 inch CMOS | |
| Technology | Infrared | Special Features | Other, Waterproof / Weatherproof, NightVision |
Product Description

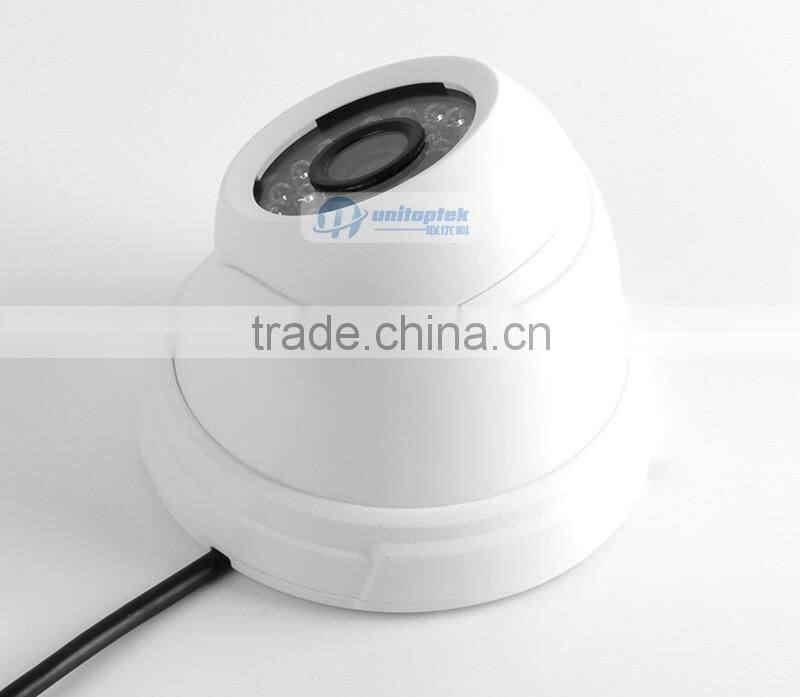

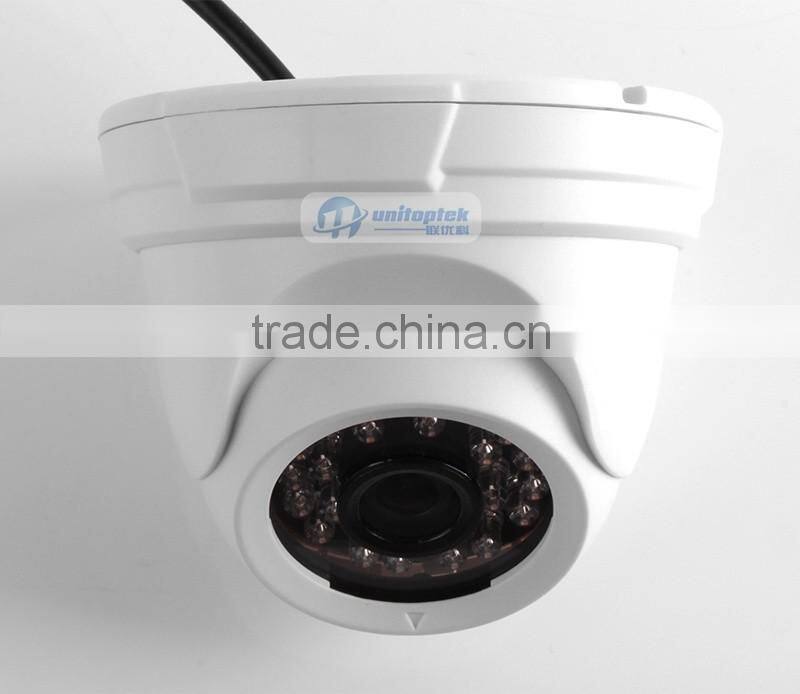

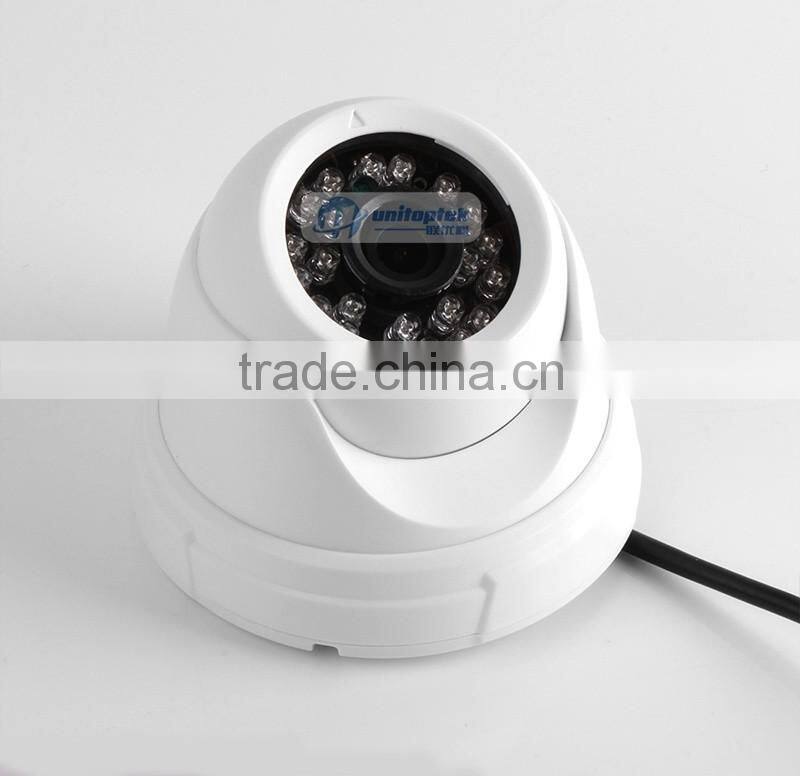

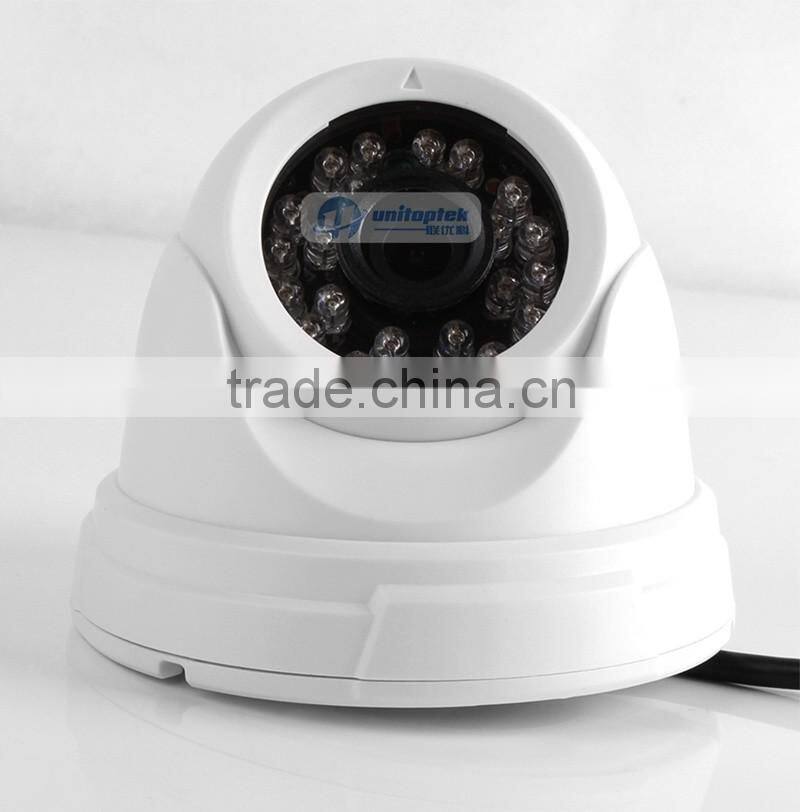

Full HD 1MP/720P Real-time IR 20M Dome HDCVI Camera 24Pcs Leds 3.6MM Lens Day&Night Vision Indoor Use
Features:
1/2.9"Pixel Plus 3100 with Dahua 9801 CMOS Sensor
25/30fps,720P
High speed, Up to 500m long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC
Indoor use
Dome hdcvi camera
Specifications:
CVI-BC293672 | |
Image Sensor | 1/2.9"Pixel Plus 3100 with Dahua 9801 |
Effective Pixel | 1280(H)×720(V) |
Video Frame Rate | PAL:25fps,720P NTSC:30fps,720P |
Electronic Shutter | PAL:1/50s~1/100,000s NTSC:1/60s~1/100,000s |
Min.Illumination | 0.01Lux,F1.2, (0Lux IR on) |
Synchronization | Internal |
TV system | PAL/NTSC |
Lens | |
Lens | 3.6mm |
General | |
IR Led | 24pcs leds |
IR Distance | 20m |
Power Supply | DC 12V |
Power Consumption | 300mA |
Working Temperature | -10°C~+50°C |
Housing Material | ABS plastic |

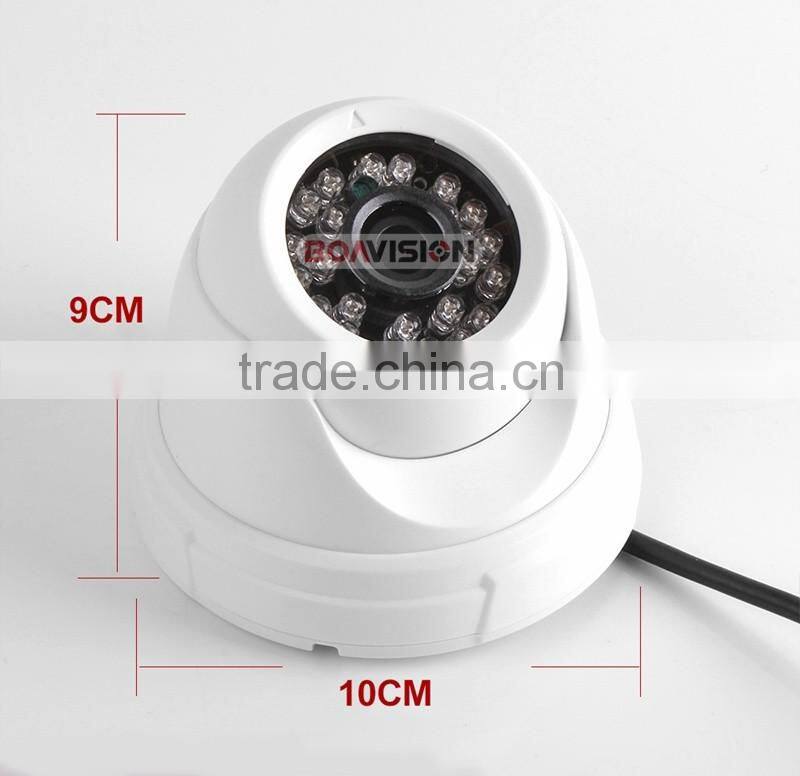

Model Size(diameter*high) | 100*90mm |
weight | 0.20kg |
| HD-CVI | HD-SDI | CVBS | IP CAMERA |
Resolution Pixel | 1MP/1.3MP (720P/960P) | 1MP/2MP (720P/1080P) | Max 552,960pixel | Unlimited |
Image Quality | HD,Real-time,Lossless Compression | HD,Real-time, Lossless Compression | Standard,Real-time,Lossless Compression | HD,lossy Compression |
Coaxial Control | Support | Extra Device | Extra Device | Support |
Coaxial Audio | Support | Support | Not Support | Support |
Transmission Delay | No delay | No delay | No delay | Network latency |
Transmission Medium | SYV75-3 Coaxial Line | More than SYV75-5 Coaxial Line | SYV75-3 Coaxial Line | Cat5 Ethernet Cable |
Transmission Distance | 1-500M | 1-100M | 1-500M | 1-100M |
Construction Deployment | Easy Operate | Easy Operate | Easy Operate | Complex |
Anti-interference | Strong | Weak | Strong | Stronger |
Transmission Reliability | High | Low | High | Low |
Total Cost | Cheap | Expensive | Cheap | Reasonable |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
