Home > Products > LED industury light > Long lifetime high power ce rohs tuv listed IP65 outdoor rgb 20w floodlight led

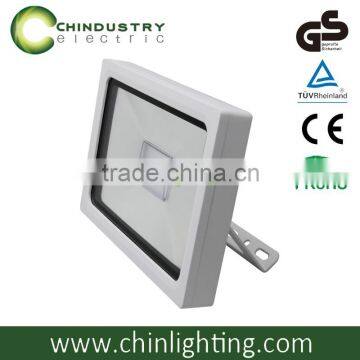

Long lifetime high power ce rohs tuv listed IP65 outdoor rgb 20w floodlight led
- Shenzhen
- T/T Credit Card
You May Like
-
Color change dimmable 45w plant led grow light with one year warranty Quality Choice
-
50000hrs lifespan dimmable 14w cob led grow light, led flat panel lighting
-
High quality new fashion hot sale 50000hrs lifespan 14w cob led plant grow light
-
Direct sale customized color changeable dimmable 45w plant panel led grow light
-
China factory customized color dimmable led grow light 45w with one year warranty
-
High efficiency square shape dimmable 14w led grow panel light
Product Details
LED Light Source | COB | Input Voltage(V) | AC200-240V | |
Lamp Power(W) | 20 | Lamp Luminous Flux(lm) | 1200 | |
Lamp Luminous Efficiency(lm/w) | 60 | Color Temperature(CCT) | Warm White | |
Working Temperature(℃) | -20, 40 | Working Lifetime(Hour) | 35000 | |
Lamp Body Material | Aluminum | IP Rating | IP65 | |
Certification | CE, GS | Place of Origin | Guangdong, China | |
Brand Name | Chinlighting | Model Number | CH-LF02 |
Product Description
Long lifetime high power ce rohs tuv listed IP65 outdoor rgb 20w floodlight led
Dimension:
Item | A(mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) |
CH-LF01-10W | 135 | 90 | 123 | 19.5 | 34 | 52 | 44 | 14.5 | 6.5 | ∅ 6.5 |
CH-LF02-20W | 190 | 130 | 164 | 23.5 | 38 | 56 | 46 | 17 | 7 | ∅7 |
CH-LF03-30W | 240 | 165 | 200 | 29.5 | 47 | 65 | 46 | 17 | 7 | ∅7 |
CH-LF04-50W | 299 | 210 | 264 | 36 | 55 | 76 | 50 | 18 | 8 | ∅8 |
Specification:
Part NO. | CH-LF01-10W | CH-LF02-20W | CH-LF03-30W | CH-LF04-50W |
Working Voltage | AC200-240V | |||
Certificate | TUV-GS+CE+RoHS | |||
Housing | Die-cast aluminum | |||
Finish | White/Black | |||
Luminous Efficiency | 60lm/W | 60lm/W | 70lm/W | 70lm/W |
Color Rendering Index | Ra>80 | |||
Beam angle | 110 Degree | |||
Optional system | Toughened glass+Reflector | |||
Installation | Bracket fixing | |||
IP Grade | IP65 | |||
Life-span(hrs) | ≥ 35000H | |||
Operating Temperature | -20 ℃ ~ +40 ℃ | |||
Storage Temperature | -30 ℃ ~ +50 ℃ |
Part No. | LED Qty | Color | Color Temperature | Power(W) | Luminous flux(lm) |
CH-LF01-10W-CW(TUV) | 10pcs | Cool White | 5665K±355K | 10W | 670 |
CH-LF01-10W-NW(TUV) | Natural White | 3985K±275K | 630 | ||
CH-LF01-10W-WW(TUV) | Warm White | 3045K±175K | 600 | ||
CH-LF02-20W-CW(TUV) | 20pcs | Cool White | 5665K±355K | 20W | 1300 |
CH-LF02-20W-NW(TUV) | Natural White | 3985K±275K | 1240 | ||
CH-LF02-20W-WW(TUV) | Warm White | 3045K±175K | 1200 | ||
CH-LF03-30W-CW(TUV) | 60pcs | Cool White | 5665K±355K | 30W | 2340 |
CH-LF03-30W-NW(TUV) | Natural White | 3985K±275K | 2250 | ||
CH-LF03-30W-WW(TUV) | Warm White | 3045K±175K | 2160 | ||
CH-LF04-50W-CW(TUV) | 100pcs | Cool White | 5665K±355K | 50W | 3800 |
CH-LF04-50W-NW(TUV) | Natural White | 3985K±275K | 3700 | ||
CH-LF04-50W-WW(TUV) | Warm White | 3045K±175K | 3550 |
Part No. | Input Voltage | Input Current | Transfer Efficiency | Power Factor | THD |
CH-LF01-10W | AC200-240V | 50mA(Max.) | >90 % | >0.85 | <20 % |
CH-LF02-20W | AC200-240V | 100mA(Max.) | >90 % | >0.85 | <20 % |
CH-LF03-30W | AC200-240V | 170mA(Max.) | >90 % | >0.9 | <20 % |
CH-LF04-50W | AC200-240V | 280mA(Max.) | >90 % | >0.9 | <20 % |
Pls attention:
(1) Items are shipped only after 100% payment is confirmed received.
(2) Handle time: All item will be shipped within 1 working day with stock, except for mass production item request.
(3) Shipping way: Fast shipping such as DHL,UPS,FEDEX,TNT,EMS and so on or appoint by buyer,but except for mass production item.
(4) Deliver time: most contry takes 4-10 days, we can offer more precise ref time for you when ordering.
(5) Please make sure your shipping address is corrected which we will use only system address.
Package Diagram:
1.Quality assurance both for our products and before/after-sales service
2.Accept samll order and mixed order, sample welcome
3.Great variety of products with competitive price
4.Attractive design,develop new product monthy,available dimmable and non-dimmable version
5.Environment Friendly Technology
6.Shipping port:Yantian, Shekou, Ningbo, Shanghai
7.Discounts are offered base on order quantities.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Any question and suggestion,please freely contact us~
-----------------------------------------------------------------
