Stone-coated Machine, Steel Stone Roof Tile Roll Forming Machine
- xingang
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 6set/moth | Place of Origin | Hebei, China | |
| Brand Name | xingbo | Model Number | FX-Stone-coated | |
| Power(W) | 101kw | Voltage | 380v50hz3p | |
| Dimension(L*W*H) | 55*1.2*1.45m | Weight | about 50T | |
| Certification | BV CE ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

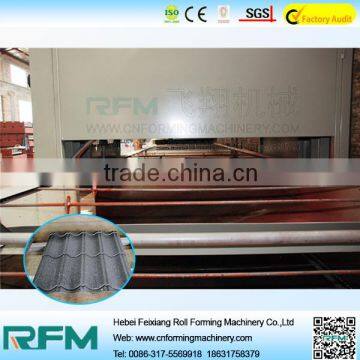

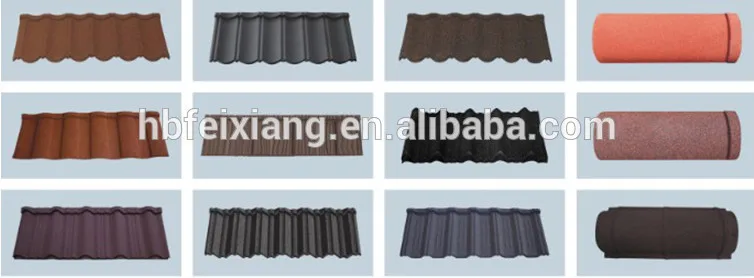

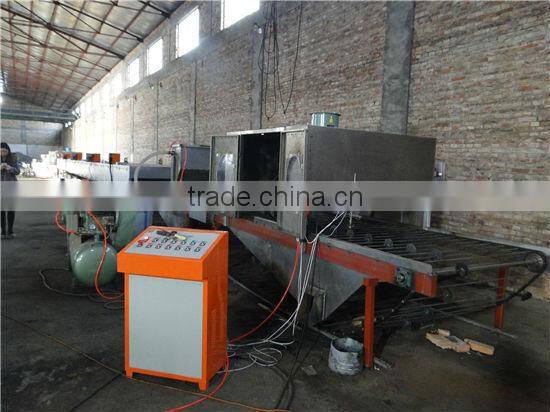

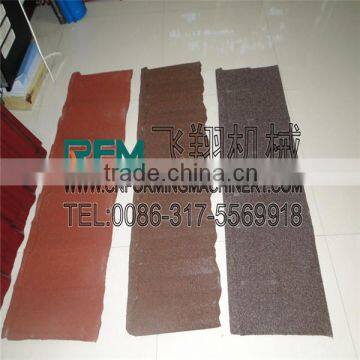

Stone-coated machine,steel stone roof tile roll forming machine
Features:
steel stone roof tile roll forming machine
1.Light weight,environmenttal protection and economical
2.Durability and life-long service
3.Easy installed
4.Nice appearance and fashion windproof
1.Components and Details of steel stone roof tile roll forming machine

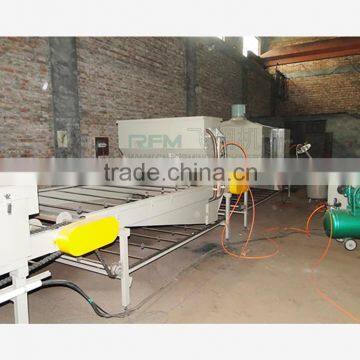

(1)Automatic bottom glue spraying equipment
| Outside Dimension | 4000 × 1350 × 850mm(L*W*H) |
| Transmission | 2.2kw,variable-frequency,adjustable-speed,motor0-32R/Min |
| Conveying device | Beciprocating chain conveys |
| Automatic glue spraying assembly | with motor 0.06kw |
| Adsorption of dust removal equipment | 1 set |
| Air compressor | 1 set 0.9m |
| Automatic pressure glue canister | 1 set range of adjustable pressure 0.1-0.6MPa |
| Automatic glue spraying gun | 4 sets |
| Fill glue gun | 5 sets |
| Glue gun stand | 1 set |

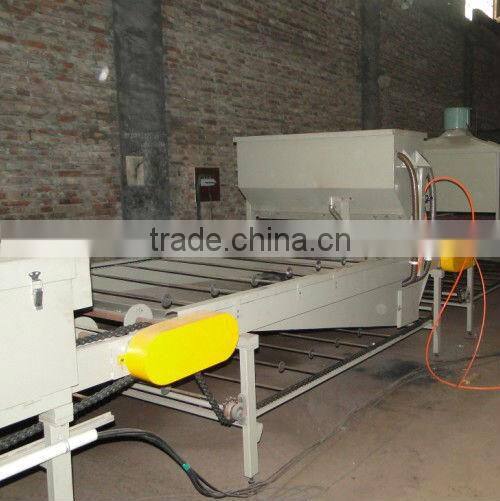

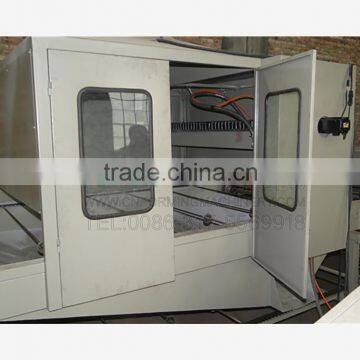

(2)Automatic sandblasting room
| Outside Dimension | 3000 ×1850 ×700mm(L*W*H) |
| Transmission | With glue spraying equipment compound chain transmit |
| Conveying device | Compound chain transmit |
| Automatic sand hopper | 1 set dimension 550*600*500mm |
| Automatic rising machine | 1 set with rising height 1.9m power 300kg/h |
| Sun-blasting gun | 4 sets |

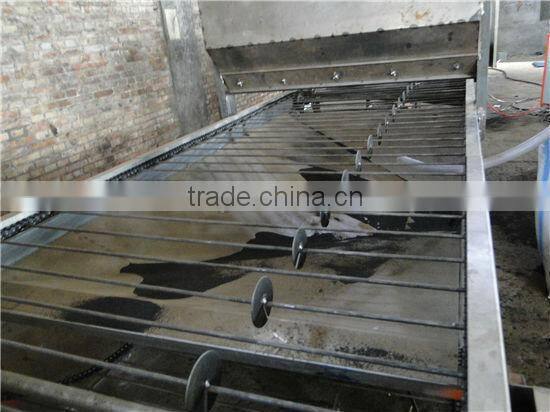

(3)First drying room
| Outside Dimension | 25000 ×800 ×1200mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |

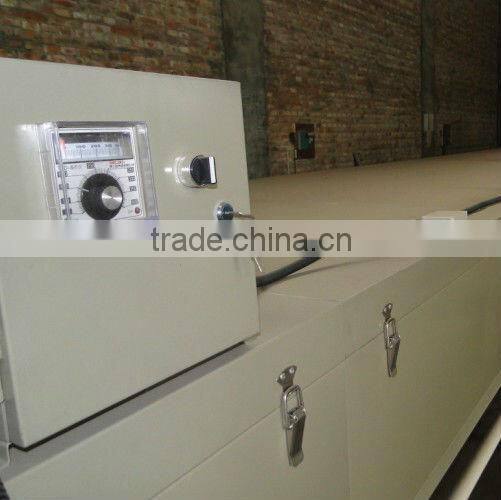

| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Infrared fluorescent tube | 50 pcs |
| Conveying device | Reciprocating chain conveys |
| Cooling device | 1 set |
(4)Automatic surface glue spraying equipment
| Outside Dimension | 3000 ×850 ×700mm(L*W*H) |
| Automatic glue spraying gun | 2 sets |
| Automatic spraying assembly | 1 set range of pressure 0.1-0.6MPa |
| Adsorption of dust removal equipment | 1 set |
| Manual spraying gun | 5 sets |

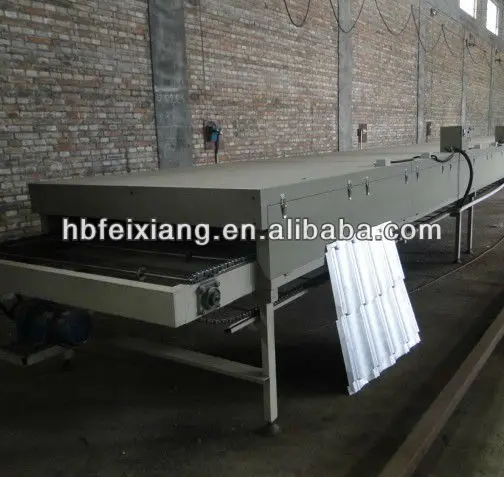

(5)Second drying room equipment
| Outside dimension | 30000 ×850 ×700mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
| Conveying device | Reciprocating chain conveys |
| Infrared heat tube | 50 pcs |
| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Conveying device | Reciprocating connection conveys 30m |
| Cooling device | 1 set |
| Automatic printing code and marking | 1 set of automatic printer |
We can also design and manufacture the machine as your differdent requirements
Our company:

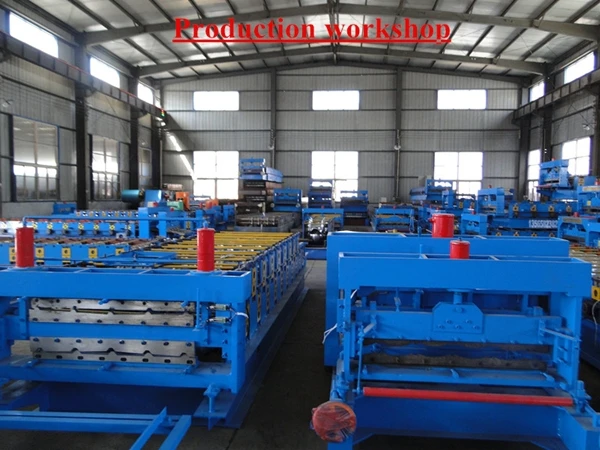

a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
Price and Payment items :
1) FOB Tianjin: 198000USD
2) Payment:50% T/T prepaid, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and CD to teach you to install and operate.
Contact information:
If you have any question ,please contact me.
Besides,welcome to visit our company.Seeing is believing.

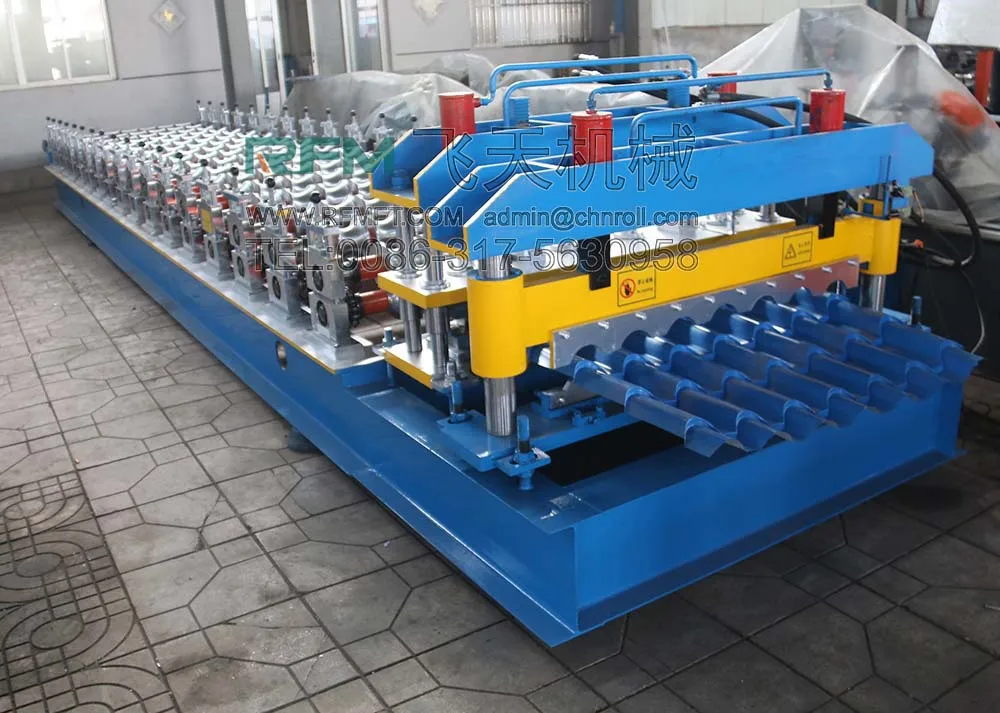

For glazed tile forming machine, click here;

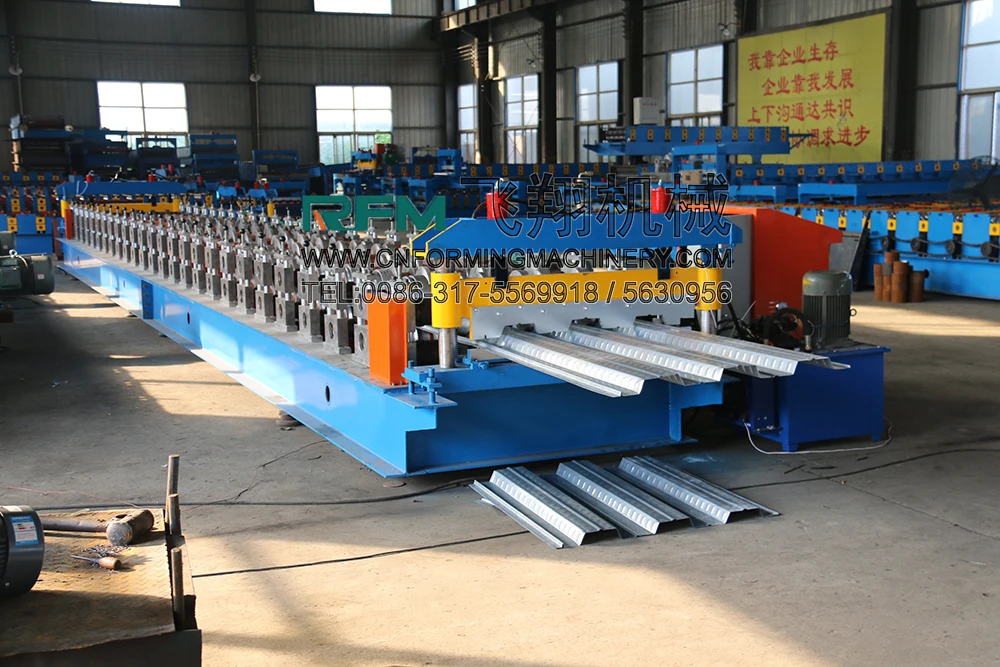

For floor deck making equipments, click here;
