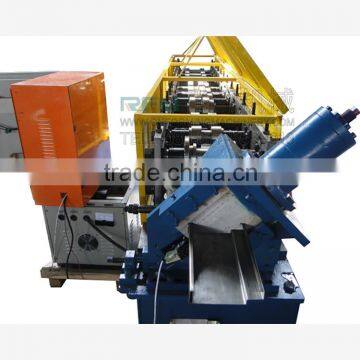

Automatic Frame Moulding Machine
- tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Feixiang | |
| Model Number | shutter door | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
automatic frame moulding machine

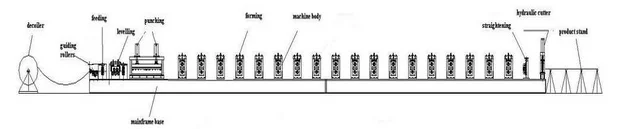

automatic frame moulding machine Process Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

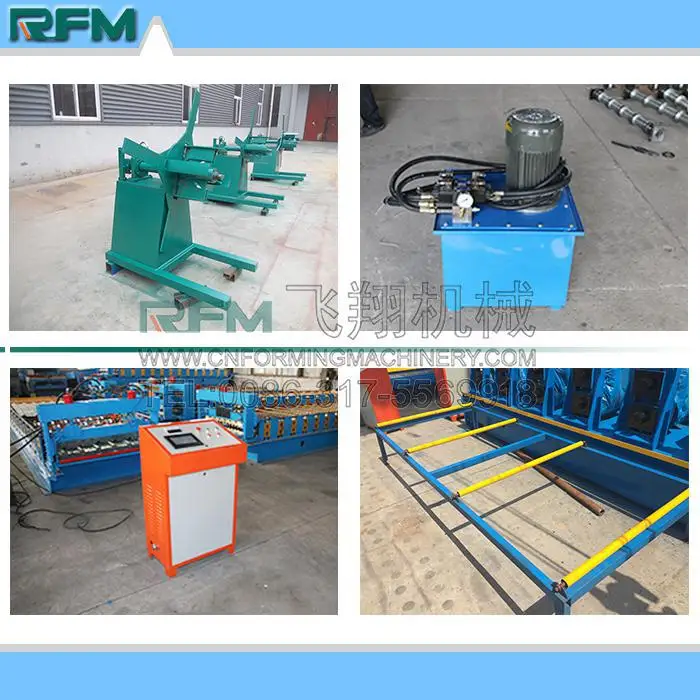

Components of automatic frame moulding machine
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |

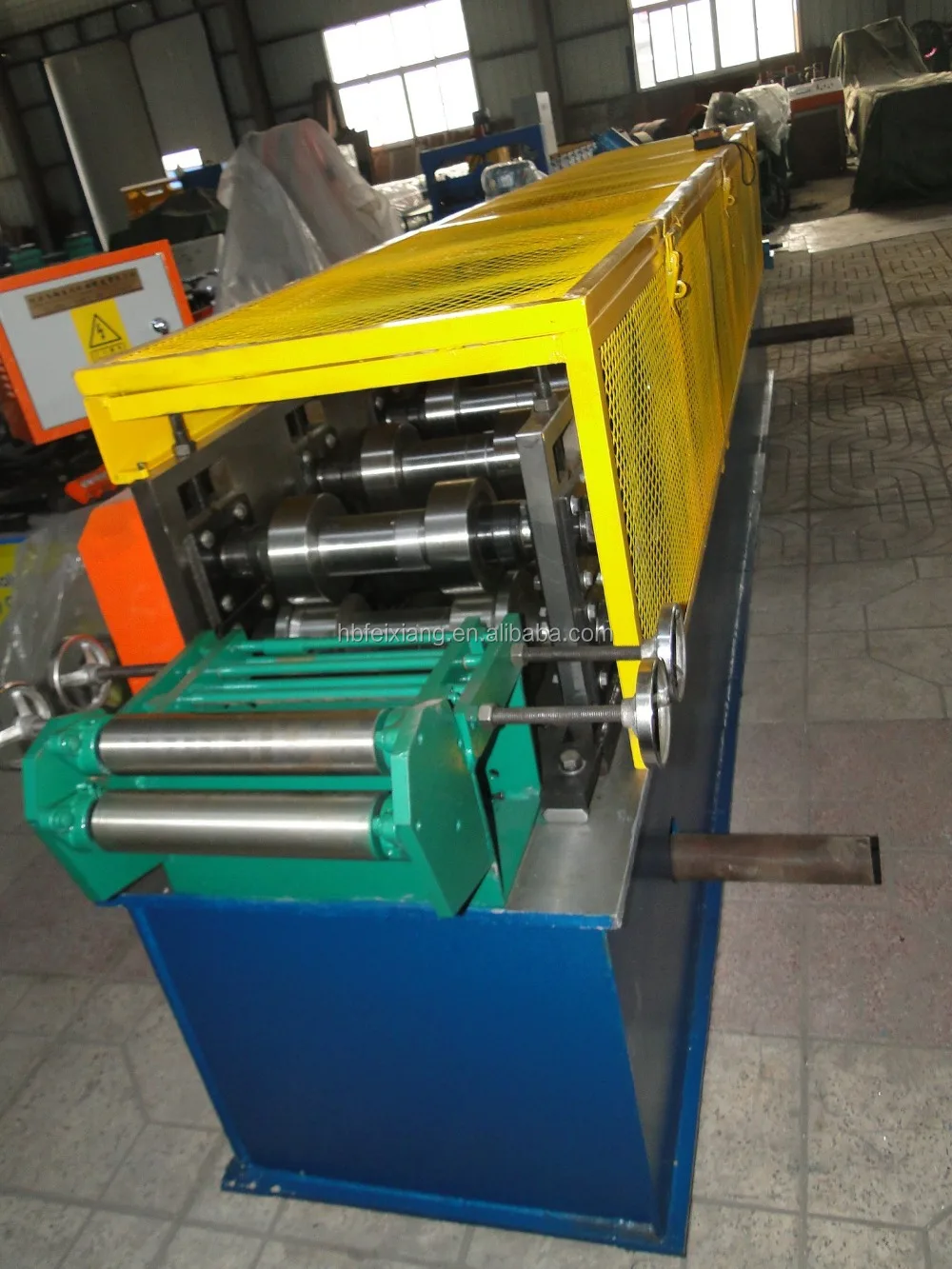

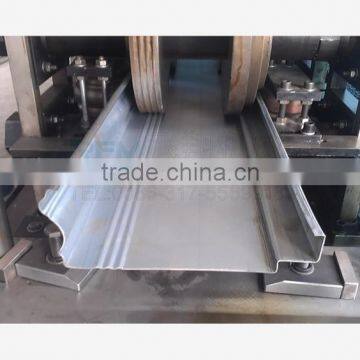

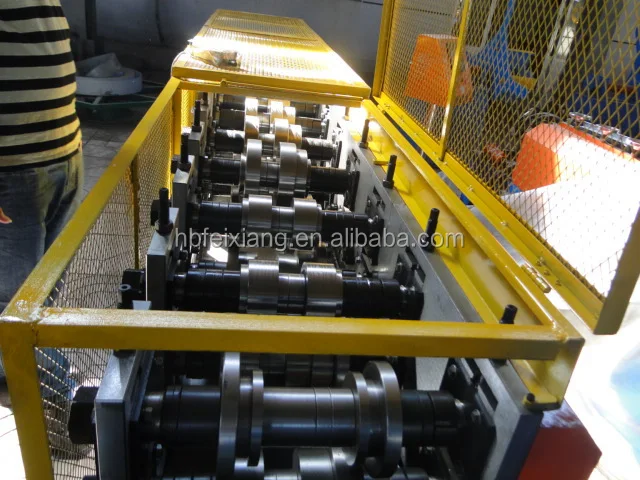

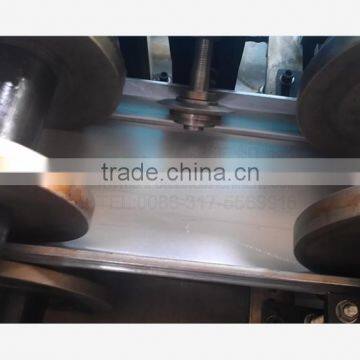

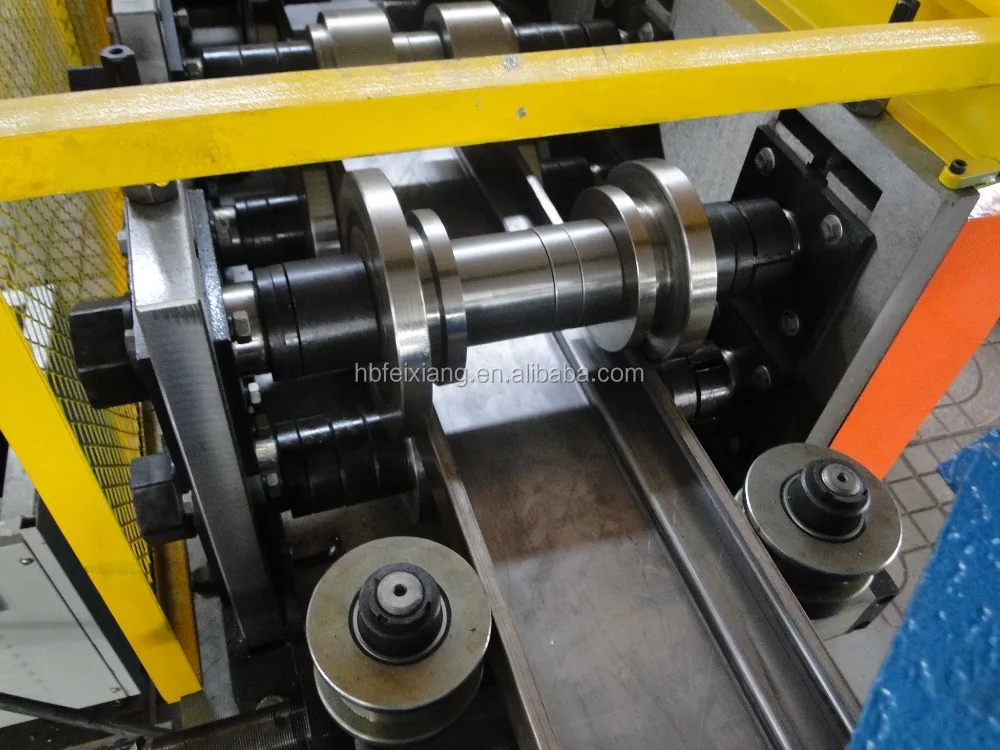

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when
it is working
Feature : Ensure stability , precision and lifetime.
No. | Main parameter of automatic frame moulding machine | |
1 | Length of the main part | 12000*1700*1500mm |
2 | Weight of main part | About 5 t |
3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
4 | Roller fixer | Guide column |
5 | Frame | Middle plate welded Memorial arch frame type |
6 | Frame thickness | 25mm |
7 | Drive mode | Gear or chain |
8 | Material of rollers | 45# steel with tempering |
9 | Material of shafts | 45# steel with tempering |
10 | Diameter of shafts | φ40mm |
11 | Number of rollers | 20 rollers |
14 | Main power | 5.5kw (Cycloidal planetary gear speed reducer) |

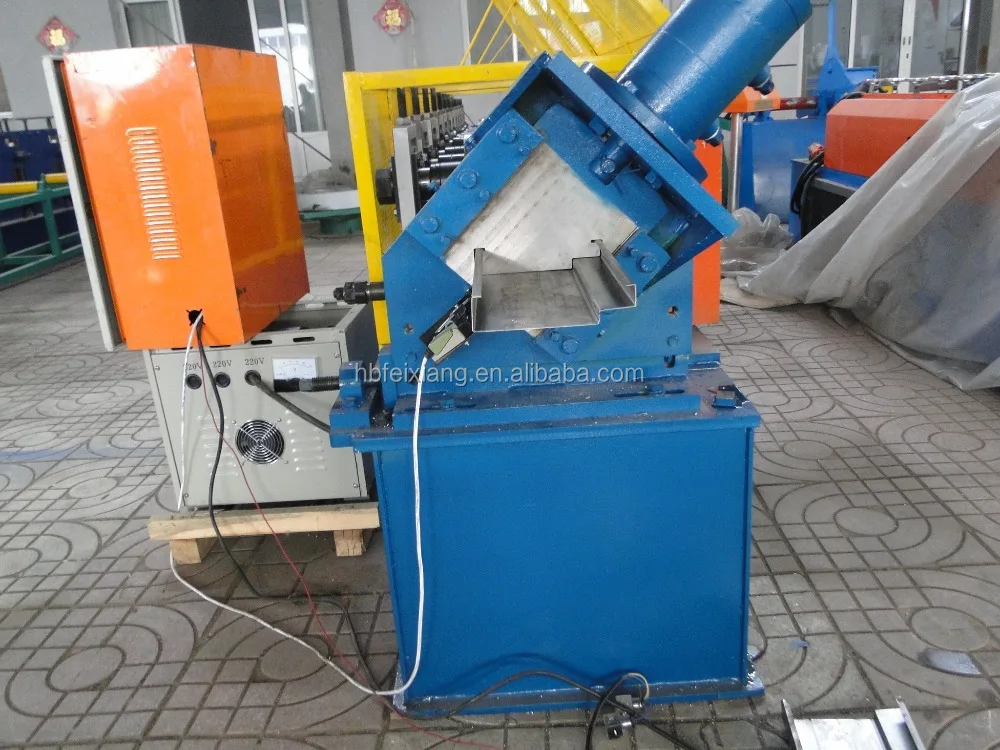

Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety
factor.
Blade Material | Cutting system |
Cr12 steel with quenched treated 60-62°C | Full automatic |
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th
ings.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
