Led T8 Tube 1200mm 4ft 9W-36W SMD2835 Led Tube t8 18w
- Shenzhen
- Credit Card
You May Like
Product Details
| LED Light Source | 2835 SMD LEDs | Warranty(Years) | 5 | |
| Input Voltage(V) | 85-265 AC | Lamp Power(W) | 18 | |
| Lamp Luminous Flux(lm) | 1766 | Lamp Luminous Efficiency(lm/w) | 98 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Other, 6063 aluminum+ PC cover | |
| IP Rating | IP33 | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | led tube t8 18w | |
| Model Number | T8 |
Product Description
Specifications
led tube t8 18w1.96pcs smd2835 leds
2.transparent/stripe/milky cover
3.5 years warranty
4.CE&RoHS
Product Name: Led T8 tube 1200mm 4ft 9W-36W SMD2835 led tube t8 18w
Features:
--Self-produced SMD2835 leds adopted!!!
--Factory price provided!!!
--Easy to install!
--Protectional package, 25pcs/carton!
--Work silent, do not produce any noise!
--Good heat dissipation!
Specifications:
Voltage | AC85-265V |
LED type | 2835 |
LED QTY | 96PCS 2538 LED |
LED source color | cool white |
Color Rendering Index | >75 |
Total power | 18W |
Electrical efficiency | 0.88 |
Power factor | 0.96 |
Power unit | Isolated |
Material | aluminum housing + PC cover |
Luminous Flux | 1766LM |
Power efficiency | 98LM / W |
Color temperature (emitting color) | Cool white: 5000-7000K |
Beam angle | 120° |
Protection grade | IP33 |
Ambient temperature | 40-50°C |
Working temperature | -20-50°C |
Net weight | 0.48KG |
Lamp Dimension | 1200 x 26 mm |
Package Demission | 1270 x 240 x 240 mm(25PCS/CTN) |

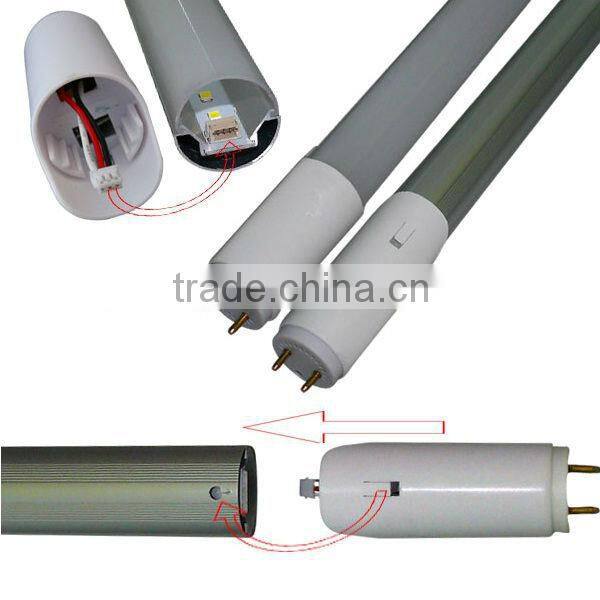

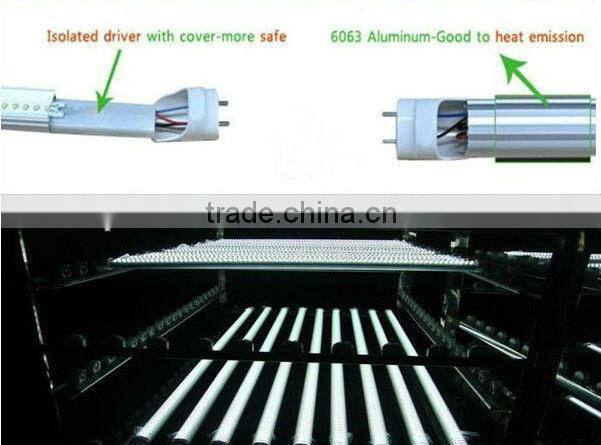

Pictures showing:
A. PC cover
B. Metal Core PCB
C. Silicone thermal resin
D. D-shape aluminous body
E. PC isolation cover of power supply
F. Power supply

Advantages:
1) Using self-produce high power 2835 SMD with super bright and competitive price.
2) Energy conservation and environmental protection. LED tube could conserve more than 80% power compare with conventional lamp tube.
3) There will be no UV ray and infrared and contains no mercury in LED tube, with light emitting diode (LED) working as its lighting source.
4) Special heat sink design of LED tube can considerably reduce body temperature so that assure its lifespan over 50,000 hours.
5) Integrated design (heat sink is lamp shell) ensure request for heat conduction and elimination of LED and its life.
6) Large heat emission area will keep Tj<50°C (Ta=25°C) when LED working.
7) Creative optical design brings excellent illumination evenness.

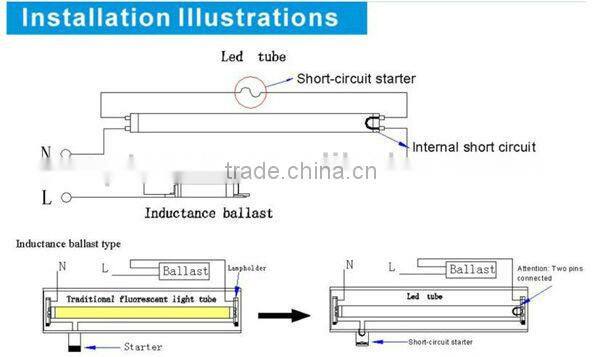

Installation:

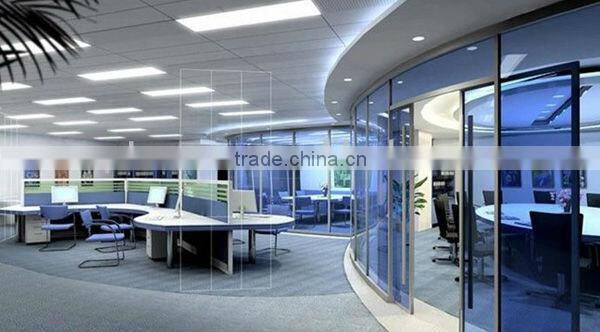

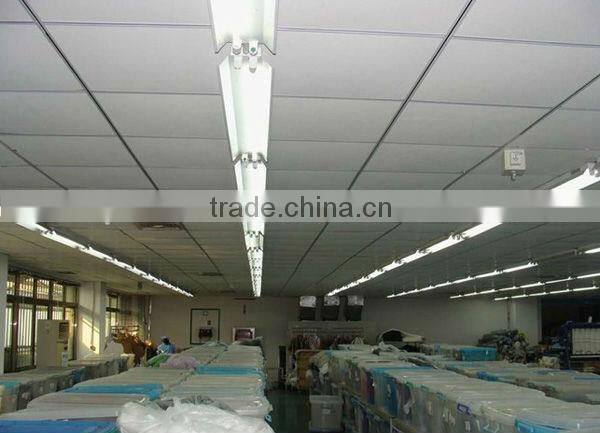

Applications:
1. Supermarket
2. Production line
3. Fitting shop
4. Processing workshop
5. Store
6. Advertising lamp box
7. Office lighting, etc.
Package:

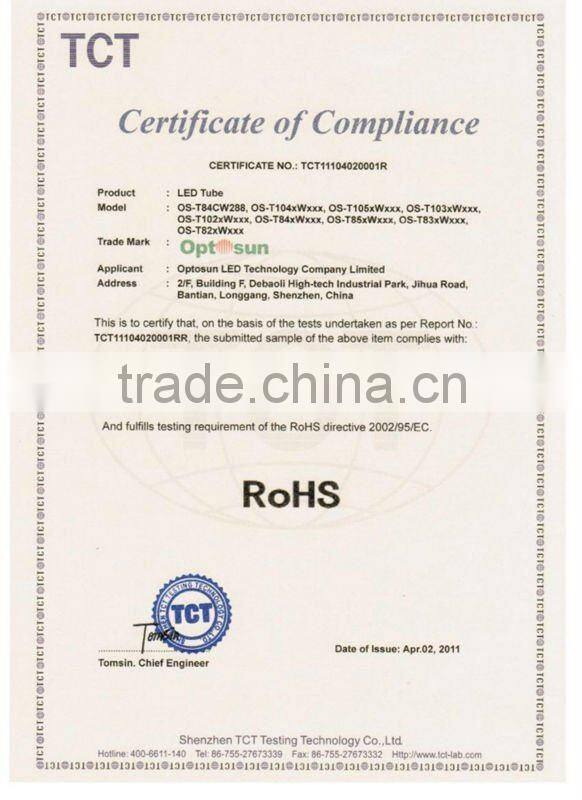

Certifications:


Our Service:
1)Reply your enquiry in 24 working hours.
2)Experienced staffs answer all your questions in fluent English.
3)Customized design is available.OEM&ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.

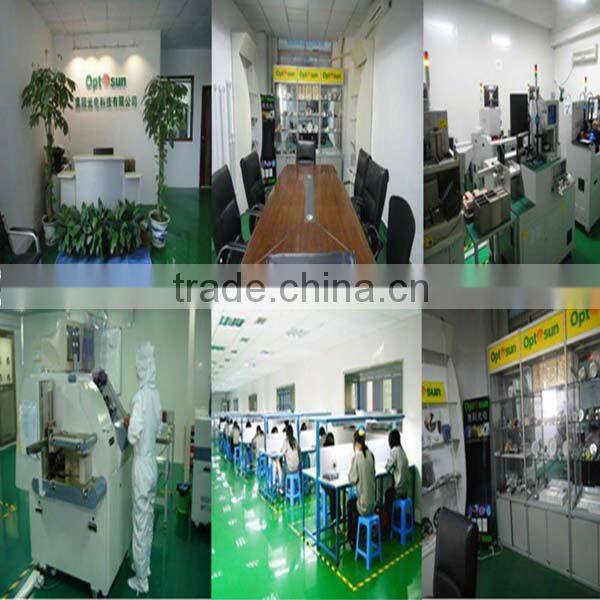

About us:
*100 workers;
*2500 square meter factory;
*6 years experience;
*3 years vendor of Wal-mart,ISO,CE RoHS certificated.
*Half an hour reach to Shenzhen port or HongKong, This is how we keep quality and competitives price for global valued customers.
Contact Us
- Shenzhen Optosun LED Technology Company Limited
- Contact nameCathy Chan Chat Now
- Phone86-755-28862096-604,1372348780
- Address#28, Baigehu Road, Guanlan,Longhua District, Shenzhen City, Shenzhen, Guangdong
