FX no gird and no colume roll forming machine
- 50 Set / Sets per Month
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Arching Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 8m/min | Place of Origin | China | |
| Brand Name | Feixiang | Model Number | large-span | |
| Power(W) | 7.5kw | Voltage | 380V | |
| Dimension(L*W*H) | 9.5*1.45*1.55 | Weight | 4.8t | |
| Certification | CE,ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

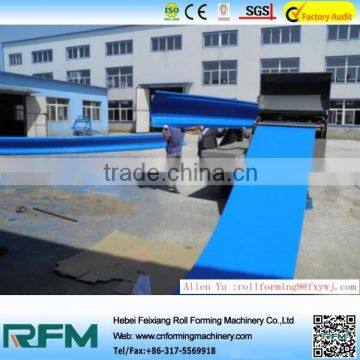

FX no gird and no colume roll forming machine
Large-Span Curve, Roof Roll Forming Machine,forming machine,cold roll forming machine,roll forming, tile forming machine
Description
1. The Chart of Process Flow
Decoiling--active feeding--roll forming--measuring length--pressing--cutting to length--product to stand
2. Main Equipment
Decoiler, main forming machine, hydraulic pressing, hydraulic cutting, product stand, hydraulic system, electric system.
3. Technical Parameters
1) inner tight decoiler
A. Coil inner diameter: 450mm-700mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kg
2) Main forming machine
A. Number of forming steps: 9
B. Material of shaft: 45# steel adjustable treatment.
Outer diameter: 70mm
C. Material of roller: High grade 45# steel(plated chrome on surface)
D. Main motor power: 5.5kw
E. Forming speed: 2-6m/min
F. Stand: 350# steel welding
G. The plating chromium of roller surface: 0.05mm
4.This roll forming machine can rollform metal roofing step tile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
5.Fully Automatic Control System with PLC.
6.Easy operation: Key in the length and quantity on the control panel.
7.we also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.
One roll forming machine only can produce one profile.The following profile drawing are some examples for your reference.
8.Products Warranty: 12 month, and we will provide the technical support for the whole life of the equipment
| Product Name: | Large-Span Curve Roof Forming Machine |
| Place of Origin: | Hebei |
| Trademark: | FEIXIANG |
| Min. Order: | 1/set |
| Delivery Date: | within 30 working days after receipt of deposit |
| Productivity: | 30 sets per month |
| Packing: | fit for ocean shipping |
| Payment Type: | T/T, 30% advance payment, balance payment should be paid before delivery |
| Certificates: | ISO9001:2000 |
| Export Markets: | Global |
