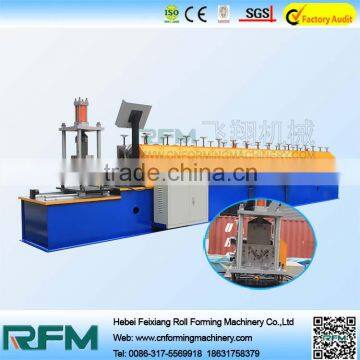

Stud and track roll forming machine, high speed metal stud and track rolling machine
- 30 Set / Sets per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Stud and track roll forming machine, c stud of wall partition
-
Stud and track roll forming machine, china stud making machine for sale
-
Stud and track roll forming machine, light gauge steel stud framing machine
-
Stud and track roll forming machine, stud/track roll forming machine ud cd uw cw profiles
-
Stud and track roll forming machine, standard steel framing studs and track machine
-
Stud and track roll forming machine, steel studs making machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Wall | |
| Production Capacity | 30sets/month | Place of Origin | Hebei, China | |
| Brand Name | xingbo | Model Number | FX | |
| Power(W) | 3kw | Voltage | 380v50hz3p | |
| Dimension(L*W*H) | 5.5*1.2*1.55m | Weight | about 3T | |
| Certification | BV CE ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Stud and track roll forming machine,@alang@
Product catelog:
Stud and track roll forming machine, high speed metal stud and track rolling machine
Color steel roll forming machine, classical glazed tile forming machine, double layer roll forming machine,C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line,fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.
Stud and track roll forming machine, high speed metal stud and track rolling machine
Products made by this machine can be fixed on the device which is specially used for keels, they can tear
down individually.And they are suitable to used as building decorations, especially suitable
to used in bedroom, kitchen, washroom, corridor and so on.
Working flow chart:
Manual Material Uncoiler---Feeding Platform---Main Roll Forming Machine---Computer Control Box---Hydraulic Station---Automatic Cutting System---Finished Products Receving Table
Stud and track roll forming machine, high speed metal stud and track rolling machine | |
Equipment operation | Automatically |
Voltage | 380V,50/60Hz |
Thickness of material sheet | 0.3--1.3mm(normally) |
Width of material sheet | As drawing |
Control system | By PLC(imported brand) |
Cutting method | Hydraulic cutting |
Material of roller station | Gcr12 with heat treatment |
Formed width | As drawing |
Working speed | 28m/min |
Length of finished product | set in computer, machine will cut automatically |
Transmission type | gears |
You request,My responsibility
Quality Control:
a. strict quality checking system
b. Professional test skill
c. full check no matter raw material or the entire machine
Packaging standards :
1. rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well;
2. the oil hose and electric wires ae marked, and easy to be connected when used;
3.in container loading, sea-worthy, well fixed by wire rope, wooden block and nails.
HE BEI FEIXIANG ROLL FORMING MACHINERYCO,LTD;
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
Welcome to contact with me
For glazed tile forming machine,pls click here,
For slitting machine,pls click here,
