Led Downlight Light With 10w CREE Led Source
- Shenzhen
- Credit Card
You May Like
Product Details
| LED Light Source | CREE XP-G R2 | Warranty(Years) | 5 | |
| Input Voltage(V) | AC85-265V | Lamp Power(W) | 10 | |
| Lamp Luminous Flux(lm) | 680 | Lamp Luminous Efficiency(lm/w) | 68 | |
| Color Temperature(CCT) | Warm White | Working Temperature(℃) | -35, 65 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP33 | Certification | CE | |
| Model Number | CREE10W145mm | Place of Origin | Guangdong, China | |
| Brand Name | optosun |
Product Description
Specifications

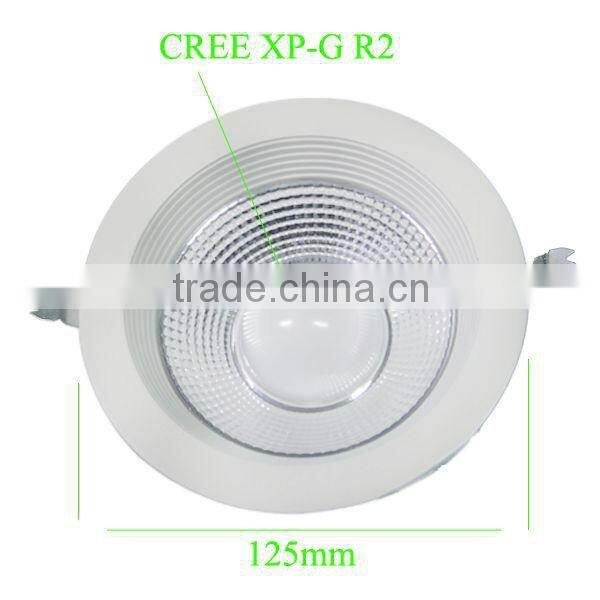

led downlight light1. CREE XP-G R2
2.Replacing 35/50W Halogen Downlight
3.5 years warranty
4.125mm Cutout size
led downlight light with 10w CREE led source
Specifications:
* 5%-100% Dimmable with Trailing Edge or Universa dimmer
*Replacing 35/50W Halogen Downlight
*Dimming Note: Do not load above 60% of dimmer
| Model | CREE10W145mm | Beam angle | 100° |
| Power | 10W | Material | Alu+PC |
| LED Source | CREE XP-G R2 | CRI | Ra>82 |
| LED Chip Size | 14*28mil | Working temp | -35°C-65°C |
| Input voltage | AC85-265V | working humidity | <95% |
| Power factor | >0.92 | Lifespan(LED) | 50000hrs |
| Power Supply Efficacy | 82% | Warranty | 5 years |
| Light efficiency | 68 | Cutout Size | 125mm |
| Lumilosity | 680lm | Color temp | 3000-3200K |
1.Using light emitting from sides way and guide light plate, making light effective and harmogeneous;
2.Proprietary design for excellent thermal management with aluminum housing;

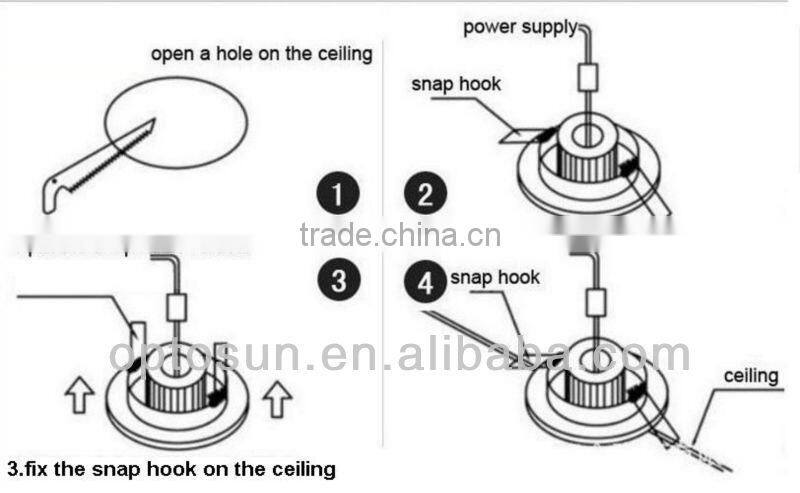

3.Easy installation and maintenance free, plug in to use,
4. CREE XP-G R2 as llight sources, long life span(>50,000hours)
5.Solid-state, high shock hibration resistant;
6..Beautiful appearance, High brightness output;
7. Adjustable beam angle;
8.Special different view angles mixing lighting design;
9.Green Product, No ultraviolet and infrared radiation, very short start time;
10.High luminance efficiency by using super bright LED, 90% of electricity can transform into visible light. Compared with the traditional high- pressure sodium lamp, LED lamp can save more than 80%.
11.Excellent color rendering CRI>82
Applications:

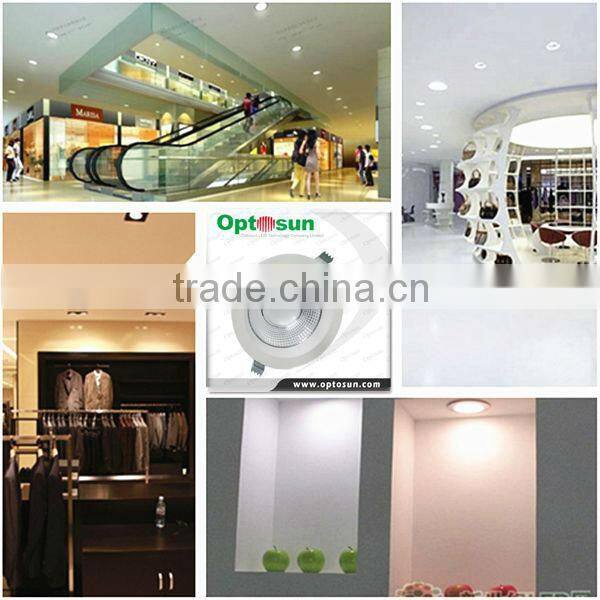

Office, Hospital, School, Factory, Shopping Mail, Supermarket, Household lighting, Parking Lot,etc.
This light can be used in any places where need energy-saving and pro- environment lights
Our Service:
1)Reply your enquiry in 24 working hours.
2)Experienced staffs answer all your questions in fluent English.
3)Customized design is available.OEM&ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
About us:
*100 workers;
*2500 square meter factory;
*6 years experience;
*3 years vendor of Wal-mart,ISO,CE RoHS certificated.
*Half an hour reach to Shenzhen port or HongKong, This is how we keep quality and competitives price for global valued customers.
Our factory:
