CE Appoved 48v 1000w Motor Bldc
- shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Voltage | 48V | Design | Brushless | |
Product Description
CE appoved 48v 1000w motor bldc

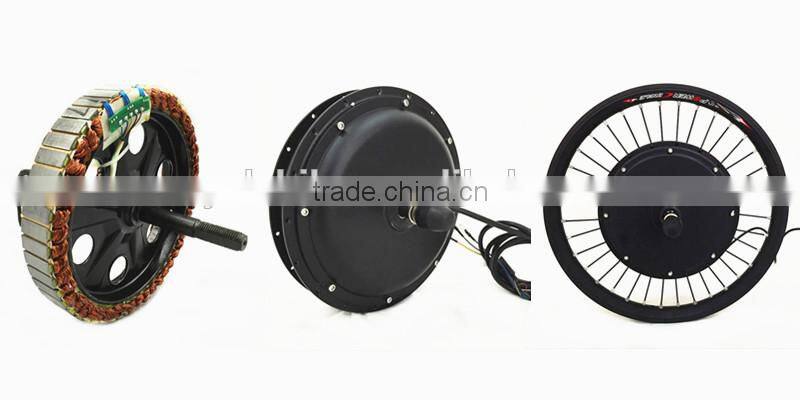

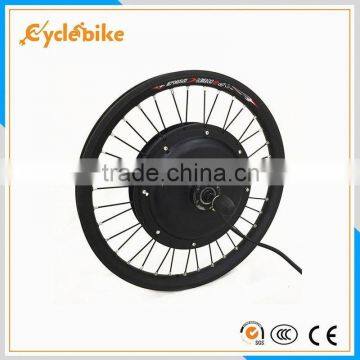

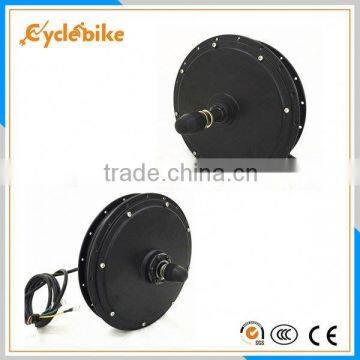

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
Model | NC481000 |
Motor power | 1000w |
Axle | 10mm* 14mm |
Type | Front or rear motor to choose |
Voltage | 48v |
Magnet Height | 30mm |
Design | Brushless gearless dc |
Windings | 11*5 |
Waterproof grade | IP54 |
RPM/min | 520 |
Cable size | 2mm2 |
Max torque | 40N.M |
Max Efficiency | >=88% |
Open size | 100mm for front motor, 135mm for rear motor |
Wheel size | 16-28inch |
Hall sensor | Optional |
Hall sensor angle | 120 degrees |
Integrate speed sensor | Optional |
Brake | Disc brake |
Surface color | dark black/ sliver white |
Temperature sensor | Yes |
N.W | 6.2kgs |

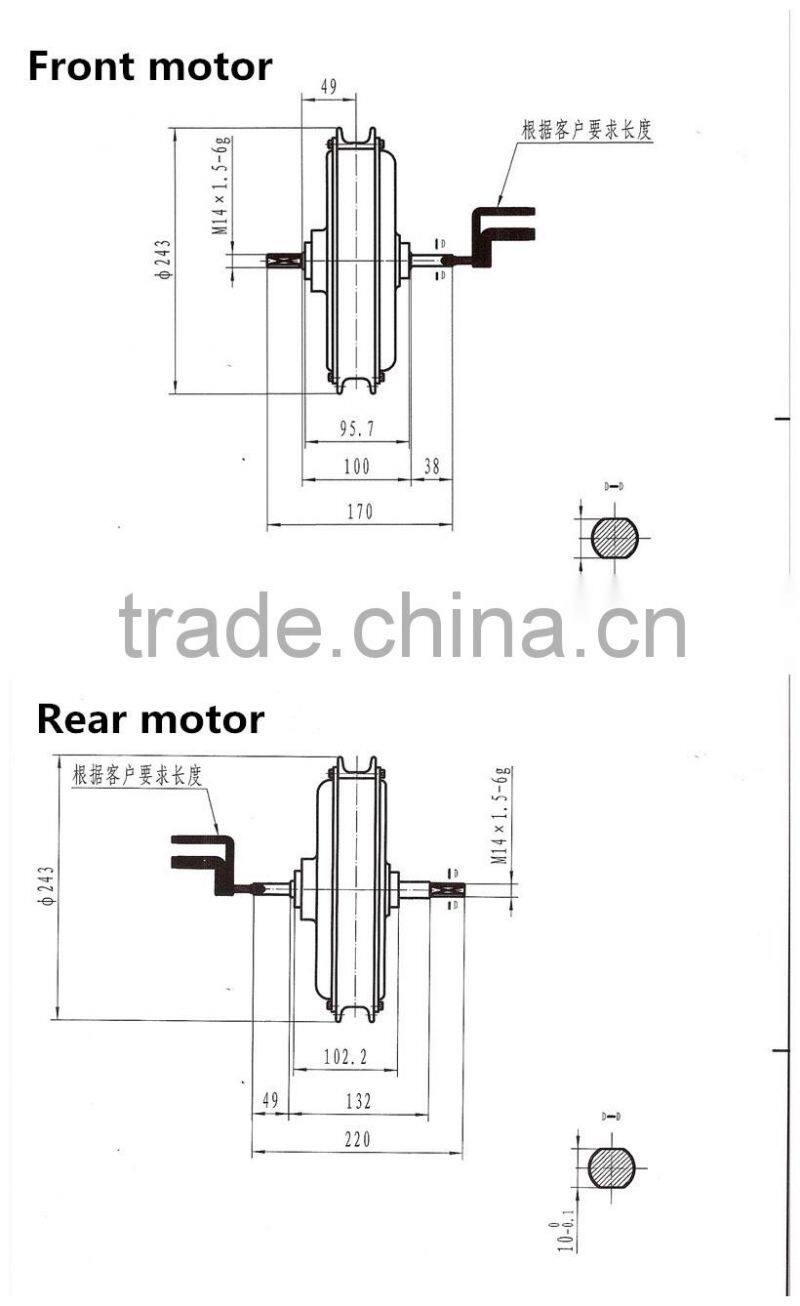

PRODUCT DRAWING
CE appoved 48v 1000w motor bldc
PRODUCT FEATURES
CE appoved 48v 1000w motor bldc
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM

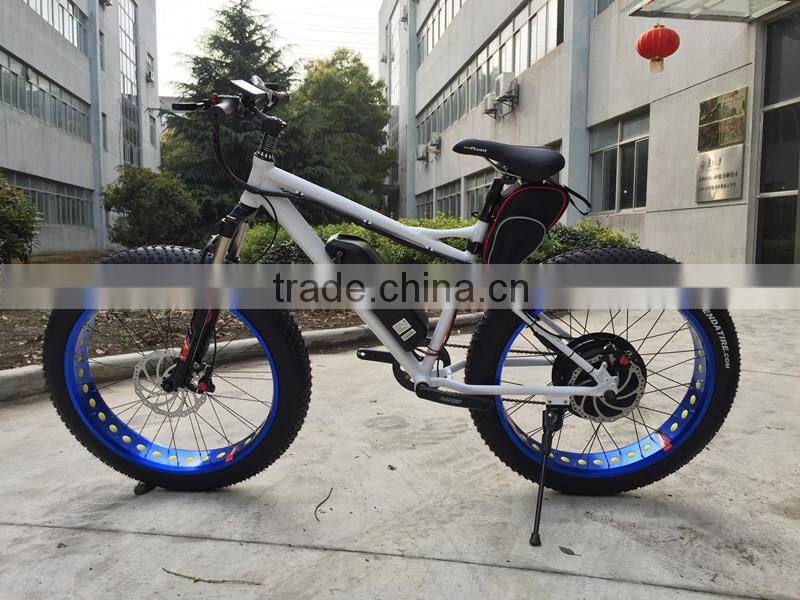

PRODUCT APPLICATION
CE appoved 48v 1000w motor bldc
