Home > Products > Dip Card Reader > dip card reader with smart bezel for gaming slot machine application
dip card reader with smart bezel for gaming slot machine application
- Shenzhen Hongkng
- T/T Credit Card PayPal
You May Like
-
compact smart card connect for public transportation indentification bus terminal payment terminal phone card reader
-
smart manual insert card reader for ATM card reader CRT-288
-
smart card reader with rs232 or usb interface for petro gaming atm information kiosk service terminal with DC 5V plastic and met
-
cheap and stable smart card reader for casino gaming slots with play tracking system in europe ce ceritificate available dc 5v
-
Manual insertion samrt card reader for Self-service Terminal hybrid card reader
-
card reader supports IC card ISO 7816-1 2 3 4 magnetic stripe RFID card reader 13.56Khz, metal bezel PVC bezel friendly use
Product Details
| Brand Name | CRT, Creator | Model Number | CRT-288, CRT-288 | |
| Place of Origin | Guangdong, China |
Product Description

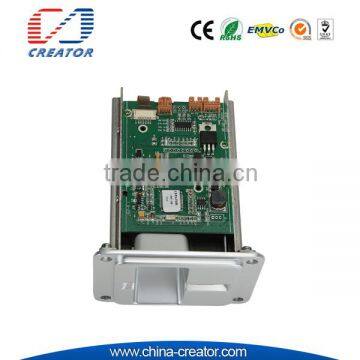

Dip Card Reader CRT-288
Model: CRT-288
Quick Details
CRT-288 series are dip card reader equipments for RFID/IC card operation, with the function of the card automatically lock the card,manual/auto card ejection
Features
Dip card reader CRT-288 has below main features:
- IC&RF card read &write
- RS232 interface
- DC12V ±5%
- Automatically lock the card,manual/auto card ejection
- Special design for protecting reader from foreign object
- Multiple bezel options
- PSAM board for option
- Special baffle design for protecting reader from foreign object
- EMV certified
Applications
- Self-service terminal
- Media inquires machine
- Vending machine
- Access control system
- Recharging machine
- Tanker
- Gaming machine
- Power changing terminal
Specifications
Item | Description |
Contact smart card | ISO 7816-2 |
CPU card (T=0, T=1) | |
Support T=0,T=1 SAM Card ( need to use PSAM board ) | |
Contactless smart card | support ISO14443 TYPE A&B card Mirfare S50 S70 UL |
Interface | RS232 |
Power | DC5V±5% |
Life time | IC card contact: 300,000 times min,Lock mechanism: 500,000 times min Micro switch: 500,000 times min
|
Environment conditions | Operation:0℃~50℃/0 ~ 90% RH (Non condensing) |
Storage:-25℃~80℃/0 ~ 95% RH (Non condensing) | |
Dimension | 78.2mm (W) * 25.5mm (H) * 112.0mm (L) without bezel |
Weight | Approx 240g |
Competitive Advantages
- IC/RF card read/write
- Mechanical lock structure
- Manual /auto card ejection
- Long life with landing contact
- 500,000 cycles durability
- Diversified bezels and bracket
Contact Us
- Creator(Shenzhen) Tech Co., Ltd.
- Contact nameYiko Lei Chat Now
- Phone86-755-26710992
- Address6/F,Block C3, Nanshan I Park, No.1001 Xueyuan Road, Nanshan District, Shenzhen, Guangdong
