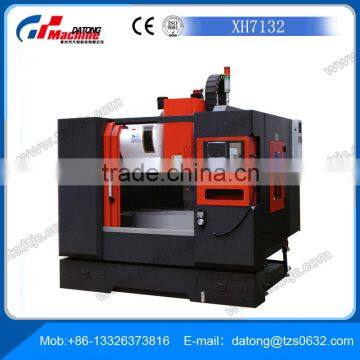

XH7132 Vertical Machining Center
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Vertical | |
Place of Origin | Shandong, China | Brand Name | DATONG | |
Model Number | XH7132 | Power(W) | 5.5kw | |
Dimension(L*W*H) | 2200*1750*2300 mm | Weight | 2700kg | |
Certification | ISO CE | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 8 m/min.
3.High-precision preloaded ball screws on all 3 axes.
4.Dual-arm 16 to24-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Full protection gurde ensures safe and contamination-free work.
8.Different Operating system as optional: Siemens, Fanuc, Mitsubishi.
Main specification | Unit | XH7132 | |
Table size L×W | mm | 800x320 | |
T slot QTY /width/interval distance | mm | 3-14-100 | |
Maximum load | kg | 300 | |
X travel | mm | 550 | |
Y travel | mm | 330 | |
Z travel | mm | 450 | |
Spindle nose to table | mm | 100-550 | |
Spindle center to column | mm | 370 | |
Spindle taper | BT40/120 | ||
Spindle driver | Belt | ||
Max. spindle speed | rpm | 8000 | |
Main motor | kw | 5.5 | |
Feed motor | X torque | n.m | 6 |
Y torque | n.m | 6 | |
Z torque | n.m | 5.5/7.5 | |
Rapid moving speed | m/min | 12/12/10 | |
Cutting speed | mm/min | 1-4000 | |
Ball screw (diametermm/pitch ) | mm | 32/06 | |
Accuracy | Positioning accuracy | mm | 0.016 |
Repeatability accuracy | mm | 0.008 | |
Tool changer | Funnel type (optional ) BT40 | 10 or 12 | |
Air pressure Mpa | Mpa | 0.6 | |
Machine weight | Frame | kg | 2200 |
Complete machine | kg | 2700 | |
Machine overall size : L×W×H | Frame | mm | 1600x1860x2100 |
Complete machine | mm | 2200x1750x2300 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
