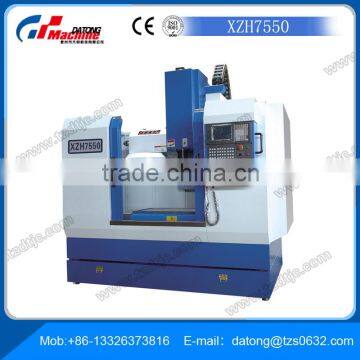

XZH7550 CNC Milling Drilling Machining Center
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Other | |
Place of Origin | Shandong, China | Brand Name | DATONG | |
Model Number | XZH7550 | Power(W) | 5.5kw | |
Dimension(L*W*H) | 2350*2100*2600mm | Weight | 4500kg | |
Certification | ISO CE | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications:
Used for drilling and milling
Get the CE certificate
Specification | Unit | XZH7550 |
Table size | mm | 1000X545 |
Table travel(X/Y) | mm | 850/500 |
Spindle box travel(Z) | mm | 600 |
Max drilling diameter | mm | Φ50 |
Milling capability | cm³/min | 45 |
Distance between spindle and table surface | mm | 200-800 |
Spindle center to column surface | mm | 445 |
X/Y/Z rapid travel | m/min | 15/15/10 |
Cutting feed rate | mm/min | 1600 |
Max table load | Kg | 300 |
T-slot(N/W/D) | mm | 3/18/100 |
Spindle speed | r/min | 5-500 or 20-2000 |
Spindle taper | / | BT-40 |
Max torque of spindle | Nm | 320 |
Main motor power | Kw | 5.5 |
Magazine capacity | / | 12 or 16 |
ATC type | / | Carousel type |
Max tool diameter | mm | 80X200 |
Max tool weight | Kg | 8 |
Guide ways | / | Box type |
Positioning accuracy | / | ±0.025 |
Repositioning accuracy | / | ±0.015 |
Torque of X/Y/Z axis AC servo motor | Nm | 10/10/18 |
Overall size | mm | 2350X2100X2600 |
Net weight/Gross weight | Kg | 4500 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
