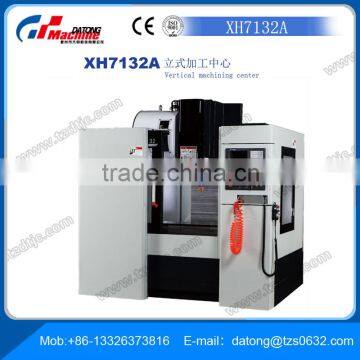

XH7132A Vertical CNC Machining Center
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Vertical | |
Place of Origin | Shandong, China | Brand Name | DATONG | |
Model Number | XH7132A | Power(W) | 5.5kw | |
Dimension(L*W*H) | 2100x1970x2170mm | Weight | 3200kg | |
Certification | ISO CE | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification
1.xh7132 vertical cnc milling machine is with Taiwan high speed spindle 8000rpm.
2.xh7132 is with box guideways on X,Y,Z axes with high stability.
3.The whole machine is with closed protection and electric cabinet, safe and beautiful.
4. The machine is with taiwan Hiwin ballscrew, NSK bearing.
| unit | XH7132A |
worktable : |
|
|
Table size | mm | 920x320 |
T slot | no | 3 |
Centre distance | mm | 85 |
T-Width | mm | 14 |
Max. load of worktable | kg | 300 |
machining range |
|
|
Longitudinal travel | mm | 620 |
Cross travel | mm | 350 |
Vertical travel | mm | 500 |
spindle nose to table surface | mm | 100-600 |
spidle axis to column surface | mm | 395 |
Spindle taper |
| BT40 |
Speed Range | rpm | 60-6000 |
spindle motor power | kw | 5.5(servo) |
cuttiing feed X/Y/Z | mm / min | 2.5-3000 |
rapid feed X/Y/Z | m / min | 18 (box guideways) 30/30/24(linear guideways) |
tool magazine capacity | piece | 16 |
tool magazine type |
| drum-type |
Max. tool diameter | mm | Φ150x350 |
Max. tool weight | kg | 8 |
Tool changing time | s | 7 |
positioning accuracy | mm | ±0.005/300 JIS |
positioning accuracy | mm | ±0.003/300 JIS |
others |
|
|
air pressure | Mpa | 0.5 |
overall dimensions(LxWxH) | mm | 2100x1970x2170 |
N/W | KG | 3200 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
