used Gear Hobbing Machine YK3150-3 for sale
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Gear Hobbing Machine | |
CNC or Not | Normal | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | Y3150/3 | |
Voltage | 220V/380V | Power(W) | 3000W | |
Dimension(L*W*H) | 1825x935x1730mm | Weight | 2400KG | |
Certification | ISO9001CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

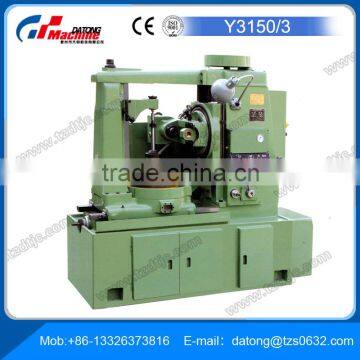

Gear Hobbing Machine YK3150-3
Feaature:
1.The machine is suitable for processing a variety of cylindrical squrgears,helical gears and worm gear.
2.The machine has sufficient rigidity.
3.The machine can produce the seven grade precision gears.
4.As the machine has the hydraulic balancing device to blance the cutting resistance of the knife rest,also can be used for smooth milling to improve machine productivity.
5.The machine is not only widely used in gear cutting,and easy to operate, also could be multi-machine management.
Specification:
Model | Y3150-3 | ||
Max working module | steel (mm) | 5 | |
Cast iron(mm) | 6 | ||
Max diameter cutting straight Spur gear | with column (mm) | 350 | |
without column (mm) | 500 | ||
Max diameter cutting Cylindrical helical gear
| Rotation angle 30° | 370mm | |
Rotation angle45° | 250mm | ||
Max vertical travel of hob (mm) | 260 | ||
Max length of cutting (mm) | 240 | ||
Distance from hob spindle to worktable surface (mm) | Max(mm)
| 320 | |
Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm | 25 | ||
Minimum distance from worktable surface to hob spindle axis (mm) | 170 | ||
The changeable Diameter of hob spindle(mm) | 22 27 32 | ||
Max diameter of hob (mm) | 120 | ||
Diameter of workingtable hole (mm) | 60 | ||
Diameter of worktable mandrel (mm) | 30 | ||
Speed of Hob main spindle | Grade | 8 | |
Range (r/min) | 50-275 | ||
The vertical feed of hob | 0.24-4.25 mm/r | ||
Main motor power | 3 kw | ||
Main motor speed | 1430 r/min | ||
Pump motor power | 0.125 kw | ||
Pump motor speed | 2790 r/min | ||
Net weight (inclusive all standard accessories) | 2100 kg | ||
Size(L*W*H)mm | 1825*935*1730 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
