Used for BoreholeVertical Drilling Machine Z5032/1 for sale Drilling Machinery
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Used for BoreholeVertical Drilling Machine Z5045C for sale Drilling Machinery
-
Used for BoreholeVertical Drilling Machine Z5040C for sale Drilling Machinery
-
Used for BoreholeVertical Drilling Machine Z5032C for sale Drilling Machinery
-
Used for BoreholeVertical Drilling Machine Z5045 for sale Drilling Machinery
-
Hydraulic Presses - KP100 for Bending, Blanking and Dies
-
Hydraulic Presses - KP70 for Bending, Blanking and Dies
Product Details
Condition | New | CNC or Not | Normal | |
Drilling Speed | 80-1250(50Hz)/95-1500rpm(Hz) | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | Z5032/1 Z5040/1 Z5045/1 | |
Voltage | Customer's Requirement | Power(W) | 750W | |
Dimension(L*W*H) | 1000x750x1850mm | Weight | 437/487kg | |
Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

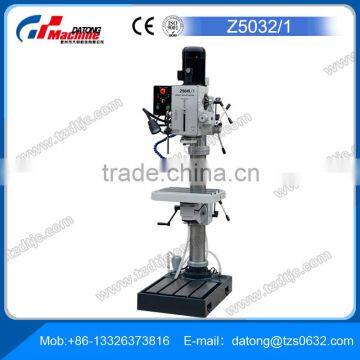

Vertical Drilling Machine Z5032/1
Specification:
1.With characteristic auto device for releasing tools for easily change tools.
2.Working table can be rotated 360 degrees.
Model | Z5032/1 | Z5040/1 | Z5045/1 | |
Max.drilling capacity | 32mm | 40mm | 45mm | |
Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 | |
Spindle travel | 130mm | 130mm | 130mm | |
Step of speed | 6 | 6 | 6 | |
Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | |
60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | |
Step of spindle auto-feeding | 6 | 6 | 6 | |
Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r | |
Min.distance from spindle axis to column | 290mm | 290mm | 290mm | |
Max.distance from spindle nose to worktable | 725mm | 725mm | 725mm | |
Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm | |
Max.travel of headstock | 250mm | 250mm | 250mm | |
Swivel angle of headstock(horizontal) | 360° | 360° | 360° | |
Max.travel of worktable bracket | 600mm | 600mm | 600mm | |
Worktable size of avaliablity | 380×300mm | 380×300mm | 380×300mm | |
Swivel angle of table horizontally | 360° | 360° | 360° | |
Table leaned | ±45° | ±45° | ±45° | |
Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm | |
Motor power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) | |
Voltage/Frequency | As customer's requirement | As customer's requirement | As customer's requirement | |
speed of motor | 1400 r.p.m | 1400 r.p.m | 1400 r.p.m | |
Cooling pump power | 0.04KW | 0.04KW | 0.04KW | |
Net weight/Gross weight | 437kg/487kg | 442kg/492kg | 442kg/492kg | |
Packing size | 1850×750 ×1000mm | 1850×750 ×1000mm | 1850×750 ×1000mm | |
Loading amount | 18pcs/20 container | 18pcs/20 container | 18pcs/20 container |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
