Home > Products > Drilling machine > Radial Drilling Machine ZQ3032(Mechanical speed,Automatic take-off and landing)
Radial Drilling Machine ZQ3032(Mechanical speed,Automatic take-off and landing)
- qingdao tianjin lianyungang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Radial Drilling Machine ZQ3032*9/10(Mechanical clamping,Mechanical speed)
-
Radial Drilling Machine ZQ3032*10(Mechanical speed,Automatic take-off and landing)
-
Radial Drilling Machine ZQ3032*9(Mechanical transmission,Mechanical clamping)
-
Bench drilling machine ZX-13E HOT SALE
-
Z4116C Bench Drilling Machine For Sale
-
Z4116B Bench Drilling Machine For Sale
Product Details
Condition | New | CNC or Not | Normal | |
Drilling Speed | 108-1000rpm | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | ZQ3032 | |
Voltage | 220V/380V | Power(W) | 2.2kw | |
Dimension(L*W*H) | 1235*600*1780mm | Weight | 800kg | |
Certification | CE,ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

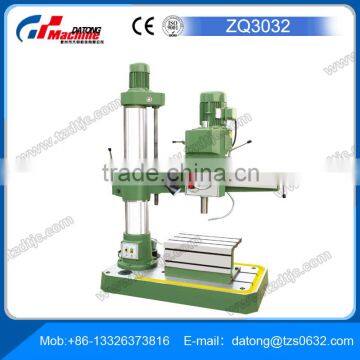

ZQ3032 Radial Drilling Machine
Features:
1.Nice shape appearance, even and harmonious overall arrangement.
2.Automatic mechanical transmission ,easy to use.
3.Reliable structure and skillful manufacture, the precision of machine can be durability guarantees.
4.Electric system is safe and reliable.
Specifications:
MODEL NO | ZQ3032×9/10 |
Distance from spindle nose to table surface(mm) | 220-980 |
Distance between spindle axis and column surface(mm) | 260-680/780 |
Max drilling diameter (mm) | 32 |
Spindle speed step | 6 |
Spindel taper | MT4 |
Spindel travel(mm) | 120 |
Spindle speed range(r.p.m) | 108-1000 |
The turning angle of arm | 360° |
The spindle allowed minimum torque (Nm) | 200 |
The spindle allowed maximum feeding resistance(N) | 5300 |
Main motor power(kw) | 1.5-2.2 |
Movements motor power(kw) | 0.75 |
Weight (kg) | 800 |
Overall dimensions(mm) | 1235 × 600 × 1780 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
