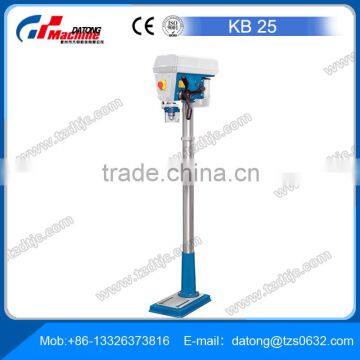

Column Drill Press KB25 Versatile Use in Workshop Applications, for training and small-parts productions
- Qingdao.Tinajin.Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Column Drill Press - TSB 35 Versatile Use in Workshop Applications
-
Column Drill Press - TSB 25 Versatile Use in Workshop Applications
-
Column Drill Press - SSB 40 Xn Universal Drill Press for Workshop Applications
-
Rapid Radial Drill Press - KSR 40 Advance Linear guides for flexible handling and maximum rigidity
-
Column Drill Press - SSB 50 F Super
-
Column Drill Press - SBT 35Heavy-duty Gear Head Drill Press with automatic feed
Product Details
Condition | New | CNC or Not | Normal | |
Drilling Speed | (12) 120 - 2580 rpm | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | Column Drill Press - KB25 | |
Voltage | 380V | Power(W) | 0.75kW | |
Dimension(L*W*H) | 1440x650x320 mm | Weight | 110kg | |
Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Column Drill Press - KB 25 for sale
Feature:
1.Swivels 45°
2.Rotates 360° around column
3.Adjustable depth stop
4.Quiet belt drive operation
5.FWD/REV toggle switch
6.Headstock runs in precision-bearings
7.12 speeds allow selection of optimum speeds at the workpiece
Specification:
Working area Drilling capacity Table set up area Spindle nose-to-table distance (max.) Spindle nose-to-foot distance Throat Column diameter | 25 mm 345x345 mm 140 - 850 mm 1.360 mm 216 mm 80 mm |
---|---|
Headstock Speed range Spindle mount Quill stroke | (12) 120 - 2.580 rpm MK 2 / MT 2 80 mm |
Drive capacity Motor rating main drive Supply voltage | 0,75 kW 380 V |
Measures and weights Overall dimensions (length x width x height) Weight | 1.440x650x320 mm 110 kg |
Standard Equipment:
chuck guard, drill chuck 16 mm, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
