Home > Products > Metalworking machines > Variable speed mini metal lathe A2-L13F

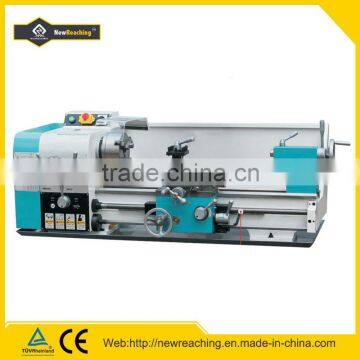

Variable speed mini metal lathe A2-L13F
US$ 1,020 - 1,220
/ Set
10 Sets(Min. Order)
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Other | |
| CNC or Not | Normal | Automatic Grade | Automatic | |
| Max. Swing Diameter | 330mm | Place of Origin | China | |
| Brand Name | new reaching | Model Number | A2-L13F | |
| Voltage | 220V | Power(W) | 1100w | |
| Dimension(L*W*H) | 132/142*76*65cm | Weight | 245kg | |
| Certification | CE ROHS EMC GS | After-sales Service Provided | No overseas service provided |
Product Description
Variable speed mini metal lathe A2-L13F
Product Description
A2-L13F(Arc style headstock and with operating bar)
| model | A2-L13F |
| swing over bed | 330mm |
| swing over carriage | 160mm |
| distance between centers | 600/700mm |
| bed with | 160mm |
| spindle bore | 38mm |
| spindle taper | MT5 |
| spindle speed | 60-1800pm |
| tool post travel | 100mm |
| Cross travel | 160mm |
| longitudinal travel | 680mm |
| longitudinal feed | 0.1-1.5mm/r |
| cross feed | 0.045-0.6mm/r |
| Metric threads | 15/0.5-4mm |
| inch threads | 23/9-40tpi |
| travel of tailstock sleeve | 85mm |
| tape of tailstock sleeve | MT3 |
| motor power | 1100w |
| net weight | 245/275kg |
| packing size | 132/142*76*65cm |
