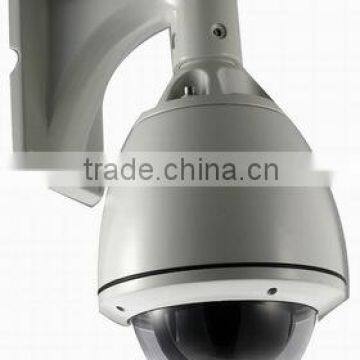

RY-9007 27X Optical Zoom Dome PTZ IP Camera Outdoor High Speed

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	RuiYe
Model Number	RY-9007	Type	Other, Analog Camera, Video Camera
Style	Dome Camera	Sensor	CCD
Technology	Pan / Tilt / Zoom	Special Features	Waterproof / Weatherproof

Power Supply	AC 24V, 3A
Power Consumption	24W
Pan Rotation Range	0°~360° endless
Speed	Speed between two preset positions 250°/s
	Pan speed 250°/s
	Tilt speed 130°/s
Tilt Range	90°
Automatic flip	Auto 180° flip when vertical 90°
Preset Position	256
Cruise Tracking Group	8 groups (16 preset position in each)
Communication	RS485Bus
Baud Rate(RS485)	1200/2400/4800/9600bps
Protocol	Pelco-D, Pelco-P,
Scan between 2 points	Yes
Speed limitation by long focus	the dome can auto-adjust the manually control speed based on the current focal lengh
Guard position	1
Preset position Precision	Less than 0.1° ± 0.03°
Temperature Operation	- 40 to 60 °C
Temperature Control	Auto/ Manual
Environmental humidity	0~95%(No Condensation)
Protection Grade	Weather Proof Housing, TVS1500W Lightning Proof Surge Proof

CAMERA

Image Sensor	1/4" Super Had CCD
Resolution.	420TV Line
Lens	f=3.25-88mm High Durability 27X Zoom Lens
Angle of View	48 degrees (w) Horizontal 3 degrees (t)
Sync System	Internal/Line Lock NTSC 60 Hz , PAL 50HzC
Minimum illumination	0.5Lux/ 0.05Lux with B/W mode
IR Cut Filter	Auto
Video Focus	Auto/Manual (Near-Far)
White Balance	Auto/OFF
BLC	Auto/OFF
Electric shutter	1/50 -- 1/12000s
S/N Ratio	>50dB
Video Output	Composite 1.0+/-0.2Vp-p BNC

RY-9007 27X Optical Zoom Dome PTZ IP Camera Outdoor High Speed
