sd hd sdi to hdmi converter with 1CH SDI loopback

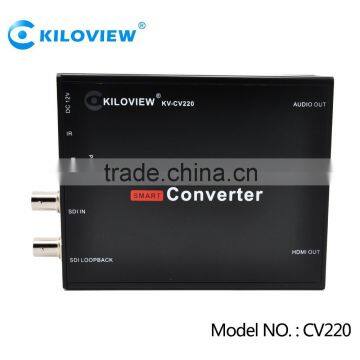

KV-CV220 sd hd sdi to hdmi converter with 1CH SDI loopback is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal.


KV-CV220 sd hd sdi to hdmi converter with 1CH SDI loopback is compatible with SD SDI(270M),HD SDI(1.485G) and 3G SDI(2.97G) standard, built-in SDI clock-recovery circuit and circuit equalizer that can recover attenuation and distortion SDI signal after long-distance transmission.


KV-CV220 supports many image enhancement and handling technology such as color conditioning,3D denoise,interlacing/progressive video conversion,video amplification/scale,frame rate convert to guarantee image conversion meet professional quality standards.


KV-CV220 could convert SDI signal to HDMI, and our products could process resolution ratio,frame rate and image scaling of different ports. Audio signal that embedded in SDI could embed to HDMI through separating and converting and simultaneously transmit to analog circuit output interface.


KV-CV220 supports HDMI DDC function and could self-adaptively output the best mode of HDMI/VGA. It supports remote control operation and could connect USB with PC for higher setup or firmware upgrading. KV-CV220 is equipped with free PC port management controlling software.


Our product sd hd sdi to hdmi converter with 1CH SDI loopback is widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia
advertisement and video security monitoring and so on.

SD: 525i @ 59.94Hz, 625i @ 50Hz

HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

720p @ 50Hz / 59.94Hz / 60Hz

1080i @ 50Hz / 59. 94Hz / 60Hz

1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

3G: 1080p @ 50Hz / 59.94Hz / 60Hz

*Support SMPTE 425M,

SMPTE424M,SMPTE292M;

*With 1 CH SDI signal loopback;

*HDMI audio/analog audio output simultaneously

*High quality 10bit YUV4:2:2 conversion, keeping color not distortion;

*Professional image enhancement, denoise, color conditioning, de-interlace and scaling;

*Support OSD and menu operation windows;

*Support HDMI DDC, self-adapt the best mode of HDMI;

*Support all above formats UP/DOWN interconversion;

*Support Interlace/Progressive interconversion & frame rate convert;

*Blue screen warning when the signal loss;

*Support users to choose specified output format by remote-controller and set image output ratio.

Specifications:
