KILOVIEW SDI Encoder applied in broadcasting and TV fields

Kiloview sdi encoder h.264 excellence compatibility, best image quality and supporting wide signal formats.

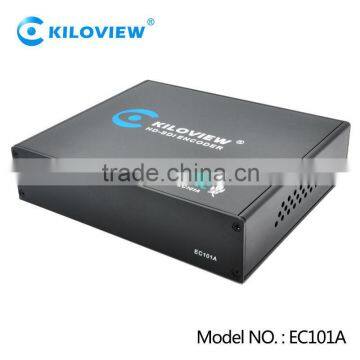

KV-EC101A sdi encoder is a HD video network encoding transmission product with high performance. KV-EC101A supports SD-SDI (270M) and HD-SDI (1.485G) digital video and audio input, decoding H.264 (High Profile/Main Profile/Baseline) for video and AAC or G.711 for audio.

KV-EC101A sdi encoder supports SDI formats 525i (480i), 625i (576i), 720p, 1080i1080p (maximum 30Hz), supporting SDI embed audio or analog audio through external Line In (alternative).

Kiloview sdi encoder h.264 independent R&D, HD losseless, uncompression and low delay

KV-EC101A sdi encoder supports dual stream encoding, main stream high up to 1080p@30fps / 720p@60fps, sub stream encoding is up to 720x576@30fps. KV-EC101A video encoding rate is adjustable between 512Kbps and 20Mbps,AAC audio encoding rate is adjustable between 16Kbps and 256Kbps. Under encoding bit rate 2.5Mbps, it could truly restore video with 1920x1080 resolution rate, no obvious visual damage.



• Supports SD/HD-SDI interface and AES/EBU embedded audio;
• Support analog audio (Line-in) input and analog audio output (Line-out);
• Support 1080p30/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i,etc., automatically identify input signal format, no need manual operation;
• H.264 High Profile compressed technology, high image quality, high acoustic fidelity, encoding delay is lower than 50ms;
• Intelligent network controls delay, decoding delay is lower than 200 ms in typical network environment;
• Encoding rate is adjustable and image quality could be controlled;
• Support two-way audio talkback, RS-485 signalling passthrough;
• AAC-LC Hi-Fi audio encoding and G.711 audio encoding;
• Support main stream high up to 1080p@30fps / 720p@60fps, sub stream encoding is up to 720x576@30fps;
• Support RTP/RTSP transmission protocol;

• Support RTMP push protocol, compatible with streaming media server like Wowza/FMS/RED5;

• Support ONVIF 1.1/2.0, compatible with various NVR system;
• Support Pelco-D / Sony VISCA PTZ control;
• Web based management, online video preview;
• Provide SDK for second development.
