24S 72v 20/40A bms for lifepo4 battery packs 40152 24s1p

FOB Price

US$ 1 - 100 / Piece

30 Pieces(Min. Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	oem
Model Number	YB-25	Base Material	plastic
Copper Thickness	oem	Board Thickness	oem
Min. Hole Size	oem	Min. Line Width	oem
Min. Line Spacing	oem	Surface Finishing	oem

Product Description

Specifications

1.Factory price
2.Welcome OEMs and ODMs
3.Quick Delivery
4.1-Year Warranty For manufacturing defects only
5.Free Samples

Product Description

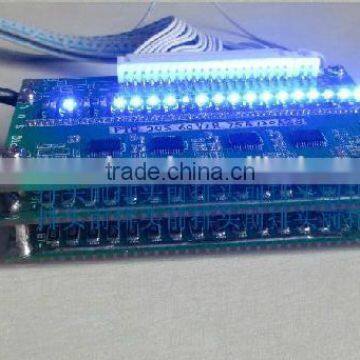

24s 72v lifepo4 battery BMS PCM PCB board 20/40A

No.	Item		standard
1	Voltage	Charging voltage	lifepo4(3.65V/1cell)
		Single section equilibrium voltage	lifepo4:3.60V±0.025V
2	Current	Single section equilibrium current	0~200mA(adjustable)
		Single section consumption current (consumable)	≤20μA
		Maximum continuous discharge current	20A
3	Overcharge protected	Charging test voltage	3.8~4.4V(adjustable)
		Charging detection delay time	0.96S—1.4S
		Charging recovery voltage	3.8~4.4V(adjustable)
4	Overdischarge protected	discharge detection voltage	1.9~3.1V(adjustable)
		discharge detection delay time	115—173mS
		discharge recovery voltage	1.9~3.1V(adjustable)
5	Over-current protected	Over current detection voltage	0.6V
		Over current detection current	40A
		Over current detection delay time	7.2ms—11ms
		recovery mode	Disconnect load automatic recovery
6	Short circuit protection	Detection state	External short circuit
		Detection delay time	200-500us
		recovery mode	Disconnect load automatic recovery
7	Inside resistance	Protection circuitMOSFET)	≤30mΩ
8	temperature	Operating temperature range	-40~+85°C
		Storage temperature range	-40~+125°C

Note:

Any close above 3.65 v input a string of battery, then equilibrium, balanced with light, which full of be clear at a glance all the way!

Any shut down a string of battery is lower than 2.50 v output. Completely protect your expensive of lithium iron batteries!

Balanced current increased to 80 from 80 ma ma, electrify equilibrium time is shorter. better

High precision integrated chip control, high stability;

MOS tube drive: able to discharge, over current situation rapidly shut off, over current situation is solved by using the MOS tube, such as can't shut off quickly, during internal resistance increases, lead to rising temperatures, even burned MOS tube.

Packaging & Shipping

Package: 40pcs per carton.

Delivery time:2~10 working days,Bulk pls contact me.

Weight: 10kg

Size: 40*30*22.5CM

Ship way: DHL,UPS,TNT,FEDEX,SF express or by Sea.

Our Services

1.Samples: Free, customers pay ship cost.

2.OEM and ODM serice offer.

3.Warrant:1 year
