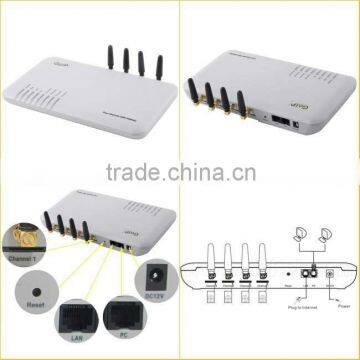

DBL IMEI changeable 4 SIM cards GOIP-4 GSM VOIP Gateway 4 ports GoIP Gateway Quad band

VoIP GSM Gateway GoIP-4 bridges the GSM and the IP networks by enabling voice communications. It is installed on the Mobile SIM card, you can register the GSM telephone on the VoIP Soft switch .It can be easily combined into arbitrary number of channels of Large Gateway Group. Low price, perfect sound quality and powerful function make GoIP GSM inevitable choice of system Integrators, traffic Business and soft switch Manufacturers.

Key Features

Provide 4 cellular channels for IP-PBX

Open Standard VoIP Protocols (SIP&H.323)

Single or Multiple Server Registrations

Two 10/100 Ethernet for WAN / LAN connections

Peer-to-Peer IP Calls

Quad band GSM module: 850MHz, 900 MHz, 1800 MHz, 1900MHz

Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer

Line Echo Cancellation

VLAN and QoS support

NAT Transversal and Router functions

Voice prompts, HTTP Web, Auto Provision support for configuration and updates

Highly stable embedded Linux operating system in high performance ARM 9 Processor

Enhanced Features

LEDs for Power, Ready, Status, WAN, PC, GSM

Dial in mode or dial out mode only

Call forward from GSM to VoIP and VoIP to GSM

Dial Plan

Password protection for both GSM dial in or dial out

Retransmit GSM Caller ID to VoIP terminal

Dynamic selection of codec

Advanced jitter buffer

Automatic traversal of NAT and firewall

VLAN / Qos

Echo cancellation for Speakerphone

Comfort noise generation (CNG)

Voice activity detection (VAD)

Auto provisioning (requires auto provisioning server)

On line firmware upgrade

Multi-language support: English and Chinese

Supported Standards

ITU: H.323 V4, H.225, H.235, H.245, H.450

RFC 1889 - RTP/RTCP

RFC 2327 -SDP

RFC 2833 - RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals

RFC 2976 - SIP INFO Method

RFC 3261 - SIP

RFC 3264 - Offer/Answer model with SDP

RFC 3515 - SIP REFER Method

RFC 3842 - A Message Summary and Message Waiting Indicator

RFC 3489 (STUN)- Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)

RFC 3891 - SIP "Replaces" Header

RFC 3892 - SIP Referred-By Mechanism

draft-ietf-sipping-cc-transfer-04 - Session Initiation Protocol Call Control Transfer

Codec: G.711 (A/µ law), G.729A/B, G.723.1

DTMF: RFC 2833, In-band DTMF, SIP INFO

Web-base Management

PPP over Ethernet (PPPoE)

PPP Authentication Protocol (PAP)

Internet Control Message Protocol (ICMP)

TFTP Client

Hyper Text Transfer Protocol (HTTP)

Dynamic Host Configuration Protocol (DHCP)

User account authentication using MD5

Free Software

SMS Server

SIM Server ( Sim Bank Scheduler Server )

Relay Server

Remote Access

Hardware Specifications

Processor: ARM9E 133MHz

DSP: VPDSP101-4 100MHz

Memory: RAM 16MB/ Flash 4MB

GSM Module: 850MHz, 900MHz, 1800MHz, 1900MHz

Power: 12 VDC 4A (110V-220V) (AC/DC adapter included)

Power consumption: 30W maximum

Operating temperature: 10°C to 40°C (32°F to 104°F)

Storage temperature: 0°C to 50°C (32°F to 122°F)

Size: 195mm (W) x 340mm (L) x 60mm (H)

Weight: 1KG (Including AC/DC Adapter)

Warranty: one year
