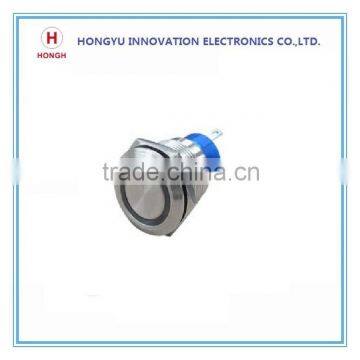

push button switch with non- illuminated 19mm
- shenzhen
- T/T D/P D/A
You May Like
-
IP67 19mm led type illuminated momentary metal switch
-
22mm Metal Pushbutton Metal Pushbutton switch
-
16mm 19mm 22mm 25mm LED illuminated momentary metal switch
-
Illuminated with Ring/Point Lamp Series Anti-Vandal Metal Push Button Switch
-
electrical rocker switch dpdt rocker switch
-
electrical rocker switch spdt rocker switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | HONGH | |
| Model Number | H19mm metal switch MPB | Protection Level | IP67 IK10 | |
| Max. Current | 5A | Max. Voltage | 250VAC |
Product Description
push button switch with non- illuminated 19mm
Specification:
| Rating: | Ith 5A/250VAC resistive load 3A/250VAC |
| Contact resistance: | 50mΩ max@1A 12V DC(initial value) |
| Insulation resistance: | 1000mΩ min.at 500V DC |
| Dielectric strength: | 2000v RMS@sea level |
| Operation temperature: | -20°C to 55°C |
| Mechanical life: | Momentary 1000000 cycles self-lock 500000 cycles |
| Electrical life: | 50000 make and break cycles at full load |
| Torque: | 5~14Nm |
| Panel thickness: | 10mm (diameter 22.20mm) |
| Operation pressure: | 1pole 1.5~2.5N/2POLE 2.2~3.5N |
| Travel: | About 3.2mm |
| Ingress protection: | IP67,IK10(Stainless) |
Material :
Features:Light weight,short size,customized.
Self-introduction :
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises.
Photos for viewing
Certifications :
What is the application of this part ?
Hongyu metal switches are applied to : Industrial remote controller,medical,communication
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
