Pharmaceutical Rigid Pvc Film

Material	PVC		Type	Other, Calender Film
Usage	Other, Food&Medicine Film		Feature	Moisture Proof
Hardness	Rigid		Processing Type	Multiple Extrusion
Transparency	Transparent		Place of Origin	Hebei, China
Brand Name	YOUNKER

Specifications

Pharmaceutical PVC Rigid Sheet
Material: High Standard Sanitary PVC Resin
Usage: Pharma Blister Packing
Hardness: Rigid

CERTIFICATE OF ANALYSIS
Name		PVC FILM			Color
Test QTY		20 meters			MFG Date
Structure		243mm x 250 micron			Report Date
Test Item and Conclusion( Standard: YBB00212005)
Item			Specification		Test Result
Appearance			The PVC Sheet Should be transparent uniform. Disallow to have the wrinkledness, greasy dirt, eyewrinker, perforation, impurity, Fisheye's Diameter >1.3mm		Match The     Norm
Size	Width		≥300±2		––
			≤300±1		±0.2
	Thickness mm		0.20-0.40 ≤±0.02		±0.01
Identify	Infrared spectrum analysis		Should be uniform to the antitheses spectrum		Match The     Norm
	Density g/sqcm		1.35≤p≤1.45		1.37
Physics	Water               Vapor Transmission g/sqm.24h 23°C, RH90%		≤2.5		1.2
	Oxygen Transmission       sqcm/sqm·24h· 0.1Mpa		≤30		19
	Tensile Strength Mpa		MD ≥44		66
			TD ≥44		65
	Falling Ball Impact     Brittle Rate		TD ≤20		0
			MD ≤20		0
Heating Shrinking rate %			±6		TD   -2
					MD +2
Heating Sealing Strength N/15mm			≥7.0		8.9
The Content of VCM mg/kg			≤1		<1
Test of Extraction	Degree of Clear		Ought to clear		Clear
	Test of Oxidation		≤1.5ml		0.8
	Heavy Metal mg/kg		≤1		<1
Non-Volatile	Water mg		≤30.0		3
	65% Ethanol mg		≤30.0		3.1
	Hexane mg		≤30.0		2.3
Barium			Ought to clear		Match The Norm
Microbial Limit Tests	Bacterium		≤1000/100sqcm		<30
	Fungus, Saccharomycetes		≤100/100sqcm		<30
	Escherichia Coli		Ought to clear		Match The Norm





Pharmaceutical Grade PVC Rigid Sheet is a packing material manufactured by calender with the characteristics of high luster, glass clear transparency, and good barrier resistance .The materials has excellent suction plastic formation and good folding self-adhesion performance . The PVC Rigid Sheet is mainly used as visual packing of pharmaceutical tablets and capsules packed by pharmaceutical factory blister machine.



1. Specifications

Thickness range: 0.1mm to 0.8mm

Max width up to 800mm, 20kg/roll,max is 55kg/roll



2. Color Available

Glass clear, Yellow, Red, Amber, Green, Orange, Golden Yellow, Dark & light Blue, White Opaque etc



3. Features

It has the best barrier properties ,Moisture resistance which can extend the storage period of drugs..



4. Usage:

Application For packing capsules, pills, and tablets etc



5. Apperance

The followings such as Perforation, Peculiar smell, obvious damage, bubble, wrinkle, dirt and other defects are not allowed.



6. Dimension

Width:no more than 800mm.

Roll Diameter: 76 mm or your requirement,

And the accurate dimension based on customers' pharmaceutical packing machine.



7. Packing

PVC rigid film in roll is packed at 20KGS net weight per piece or it can be packed according to the requirements of consumers. double PE Inside or export carton outside , foam plugs, 1ton/pallet with stretch film. The storage life of the product is one year.



8. Productive Capacity

Our yearly capacity is 10,000 Metric Tons, Our PVC rigid film is adopting 100% new high standard sanitary PVC resin and produced in the 100,000 level purified workshops.

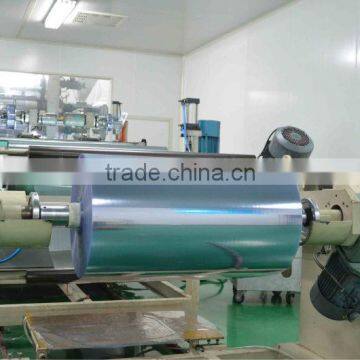

9.Factory management and environment

 Under GMP management,   400 square meters Laboratory and 2,000 square meters work shop which is

100,000 garde purified clean room



10. Shipping Port

Any port in China



11. Shipping Terms

EXW,  FOB,  CFR,  CIF and etc,  Just on customers' requirement.



12. Payment Terms

T/T 30% prepayment,   Confirmed & Irrevocable L/C at sight.
