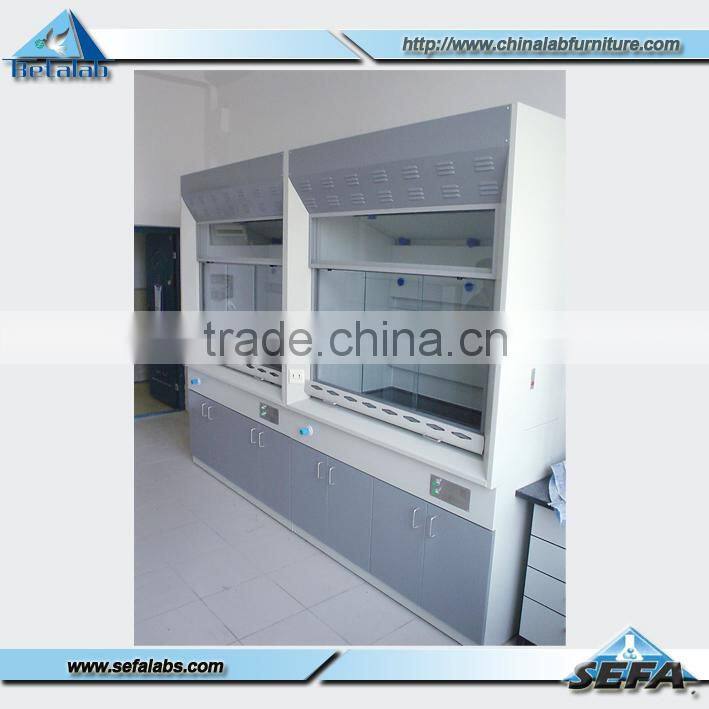

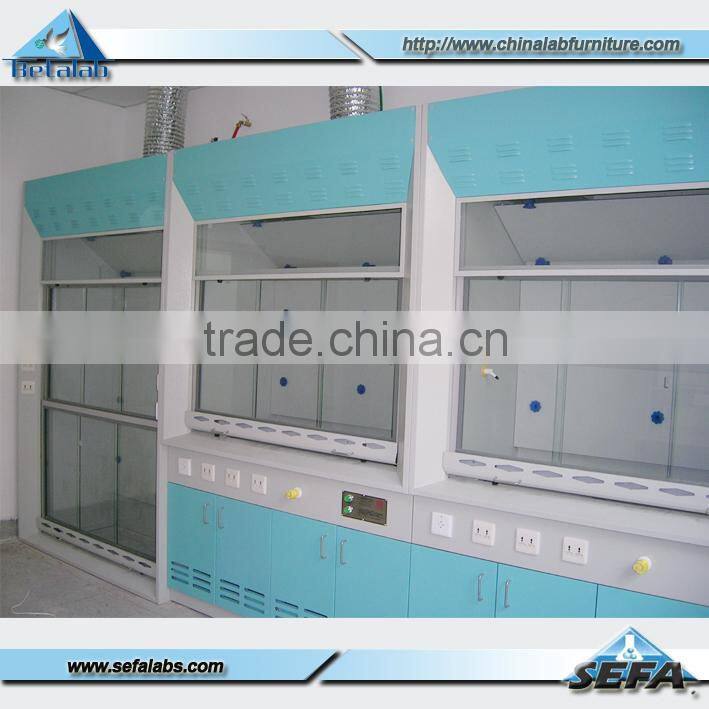

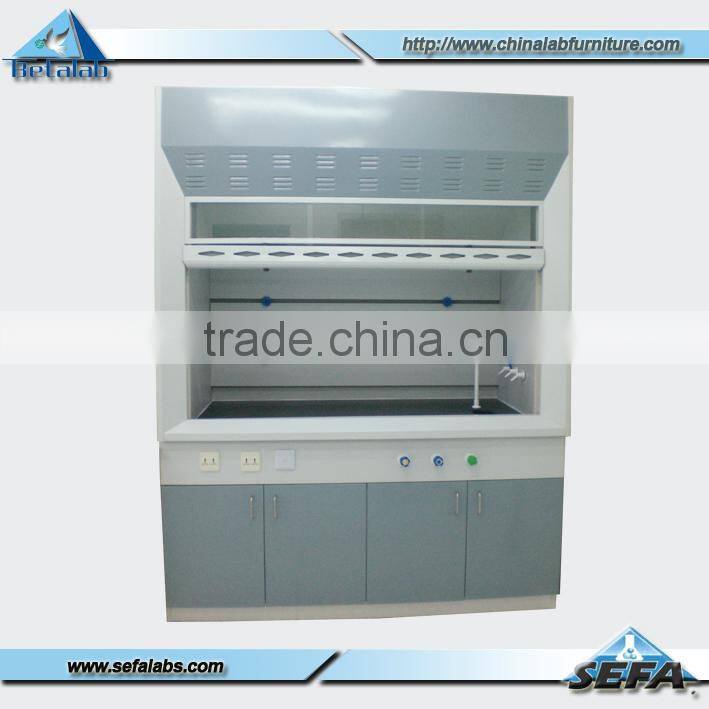

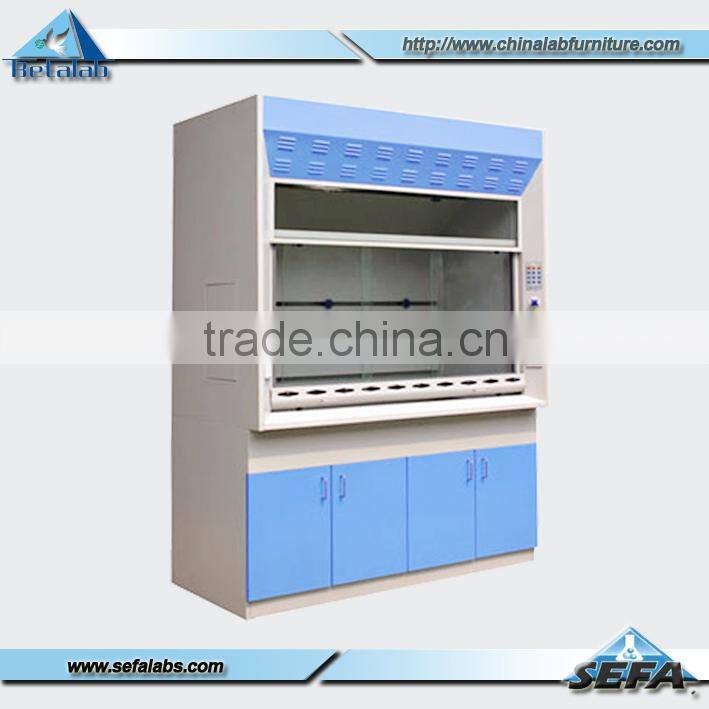

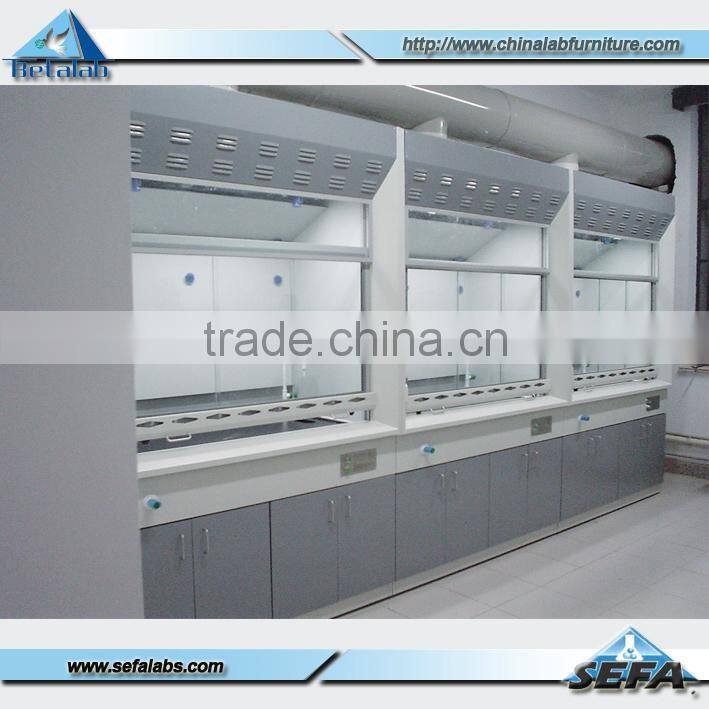

Steel Fume Cupboard Electric Exhaust Valve

Product Name

Steel Fume Cupboard Electric Exhaust Valve

Size

1200(W)*850(D)*2350(L) mm;

1500(W)*850(D)*2350(L) mm;

1800(W)*850(D)*2350 (L) mm.

Casework

1.0mm thickness of 304 stainless steel plate, after acid washing, phosphide and electrophoresis, sprayed with good quality anti-corrosion static coating.

Inside Lining

5mm thickness of Compact.

Worktop

1)19/20mm thickness EPOXY, Black Color

3)20mm thickness GRANITE ,

4)25mm thickness STAINLESS STEEL

5)19mm thickness WILSONART CHEMSURF/POSTFORMED MALAMINE (FORMICA) Black , Gray Color

6)20mm thickness CERAMIC, Black Color

Sash

Reinforced Glass

Sash Handle

2mm Stainless steel.

Illumination

with not less than 300 Lux 30W fluorescent lamp set

Cup sink

304 Stainless Steel/Oval shaped PP Cup sink

Water Tap

Molded in one piece copper water tap, epoxy powder coating surface with a ceramic valve.

Valve

1Water valve. (by custom)

Exhausting Duct

Anti-corrosion PP/PVC duct

Plinth

1.0mm thickness 304 stainless steel sheet.

Technical specification

Noise: less than 60db (International standard), Face velocity: 0.5m/s, 220V

Function

With an intelligent automatic delay protection device to exhaust residual corrosion air completely and prolong the service time of fume cupboard.

Socket

4 Electric sockets, (By custom)

Exhaust fan

not include exhausting duct &exhaust fan, will provide after receiving the detailed design of exhaustion duct.

China (Mainland)
