Hot Sale Serviceable Safe Secure High Pressure Pump With High Quality
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BAQIU | |
| Model Number | PM45 | Theory | Vortex Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electricity | Pressure | Low Pressure | |
| Application | Other, water |
export standard colour carton packing
Product Description
| Hot Sale Serviceable Safe Secure High Pressure Pump With High Quality |
 | |
| Model | Power | Max.Flow | Max. Head | Inlet/ Outlet | Max. Suct | N.W | Packing demension | 20ft | |
| Kw | Hp | L/min | m | Inch | m | Kg | mm | ||

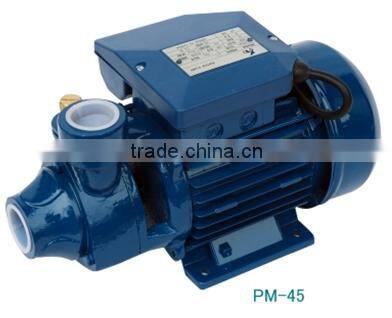

| PM45 | 0.37 | 0.5 | 40 | 35 | 1"X1" | 9 | 5.6 | 270X150X165 | 3800 |

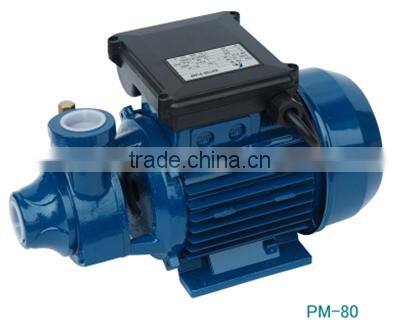

| PM80 | 0.75 | 1 | 50 | 60 | 1"X1" | 9 | 9.4 | 310X180X210 | 3800 |
| 1.Pump material |
| Pump Body: Cast Iron |
| Impeller: Brass |
| Motor bracket:Aluminum |
| Shaft with rotor:Stainless Steel or Cs45# |
| Mechanical Seal: Ceramic-Graphite |
| Copper winding |
| 2. Operation Conditions |
| Suction head up to 8M |
| Liquid temperature up to 40C |
| Ambient temperature up to 40C |
| Max.Pressure:6Bar |
| 3.Pump motor |
| 2-pole induction motor:50Hz/60Hz |
| Insulation:Class B |
| Protection:IP44 |
| With capacitor and thermal overload protection |
| 4.Application |
| Clean water without abrasive particles,non-aggressive liquid,domestic use |
| In particular for delivering water in combination with small pressure stes and for irrigation |
| Installed in enclosed places,or at least protected against inclement weather. |

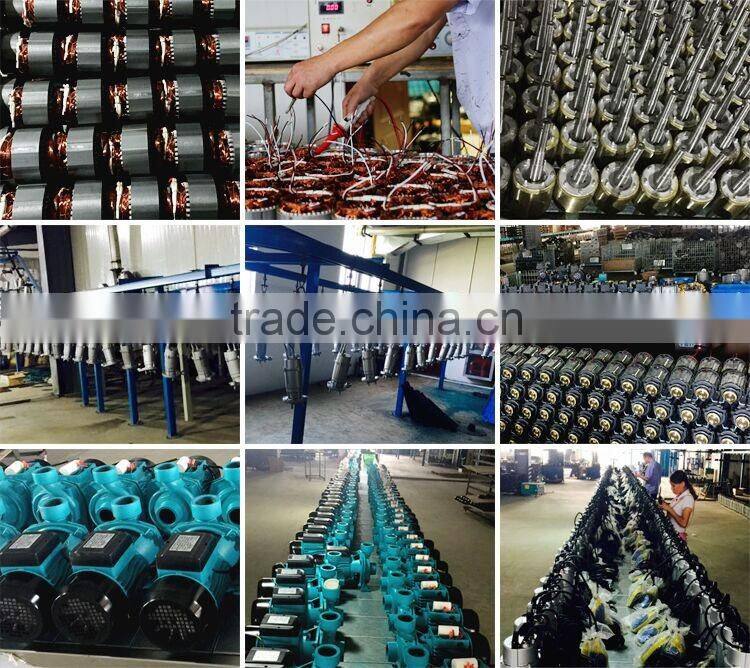

| Work shop area | |||||||||
|
| BAQIU Company Introduction |
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi, Wenling China.We are integratd manufactural factory. |
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
| More choices if you like ... | |||||||||
| | | |||||||
| | | |||||||
Company Profile
We are located in the home town of Chinese water pump-- Daxi, Wenling, Zhejiang, China, is an integrated manufacture and trading enterprise. Our major productions are all kinds of water pumps, air compressor, welding machine, gasoline engine generator, diesel generator, fan, fishery machinery, food machine, spray cooling humidification equipment and so on. Quality always stands the first and honesty is our concept. We provide reasonable price, punctuality delivery and satisfying service. We sincerely welcome all the friends from the world to join in us and develop together.
