Product Details
| Place of Origin | Jiangsu, China | Brand Name | Golink | |
| Model Number | HSG500 |
Product Description
It is sutablefor bundled logs or single log ,and is wideily used in port ,forestry center and log processing yard, with tower cranes,traveling cranes and orther type of cranes.
Electro hydraulic timber grab
Material:Q345b
Function: loading bundled logs or single log
Drawing and parameter:
Type
 HSG-12  | Dead weight
 Kg  | Volume
 M2  | SWL
 t  | Size (mm)  | ||||||
A  | B  | C  | D  | E  | F  | G  | ||||
HSG400-12  | 980  | 0.4  | 2.0  | 1790  | 1405  | 660  | 975  | 1585  | 1805  | 600  |
HSG500-12  | 1150  | 0.5  | 3.2  | 1965  | 1540  | 730  | 1080  | 1760  | 2005  | 800  |
HSG600-12  | 1680  | 0.6  | 4.0  | 2120  | 1660  | 795  | 1175  | 1920  | 2185  | 900  |
HSG800-12  | 1850  | 0.8  | 5.0  | 2410  | 1880  | 910  | 1350  | 2205  | 2510  | 1080  |
HSG1000-12  | 2160  | 1.0  | 6.3  | 2650  | 2065  | 1010  | 1495  | 2440  | 2785  | 1100  |
HSG1250-12  | 2580  | 1.25  | 8.0  | 2920  | 2270  | 1120  | 1660  | 2705  | 3090  | 1200  |
HSG1600-12  | 2670  | 1.6  | 10.0  | 3270  | 2540  | 1265  | 1875  | 3060  | 3490  | 1250  |
HG2000-12  | 3120  | 2..0  | 12.5  | 3605  | 2795  | 1405  | 2080  | 3395  | 3870  | 1360  |

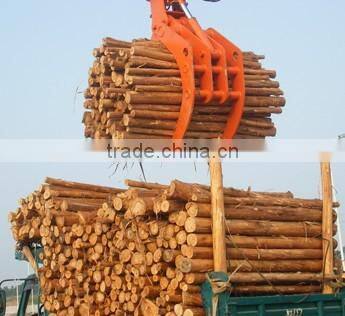

Pictures:

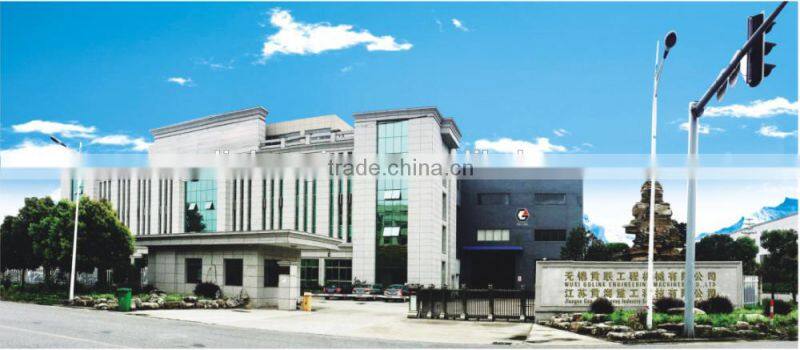

our company

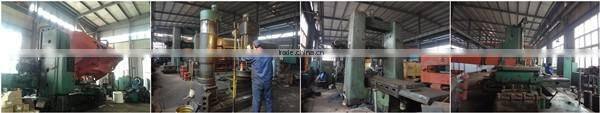

Our workshop

We supply all kinds attachments for excavator. We can help you slove any problems because of our rich experience.
Wish we can have a good relation ship with our high quatily products.
Any question please contact us. We are glad to help you.
1.We provide high quality excavator attachments.
2.We choose the best material for our bucket and own experienced skills
3.We can design and make buckets according to our customer request.
4.We can also support the shipment for our customer
5.Fast delivery time and good after-sales service.
1.Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What color can you produce ?
Yellow ,If you need special, please advise.
Thanks a lot! Any question please contact us.
