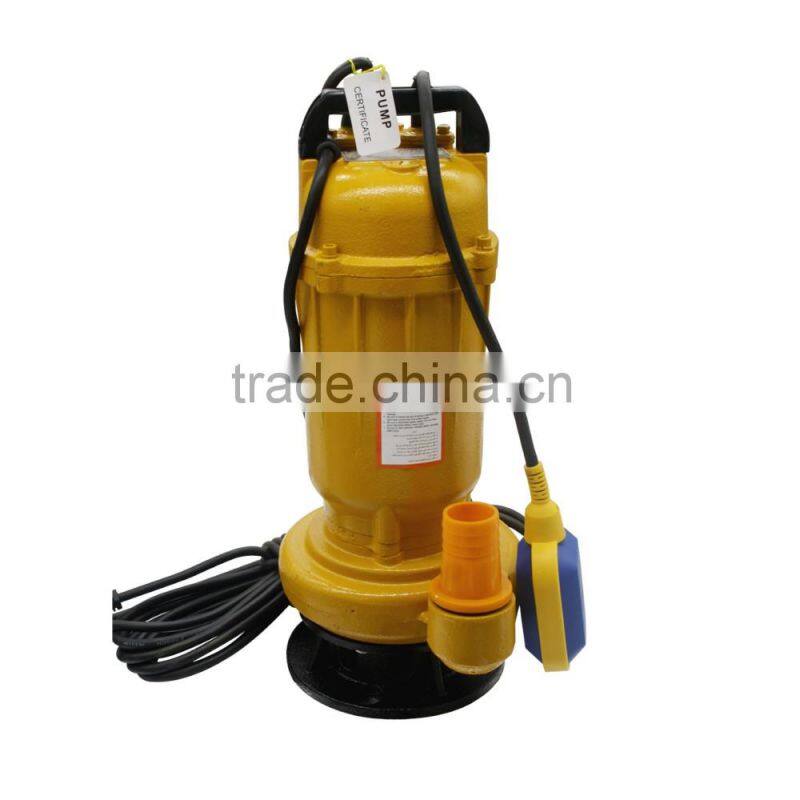

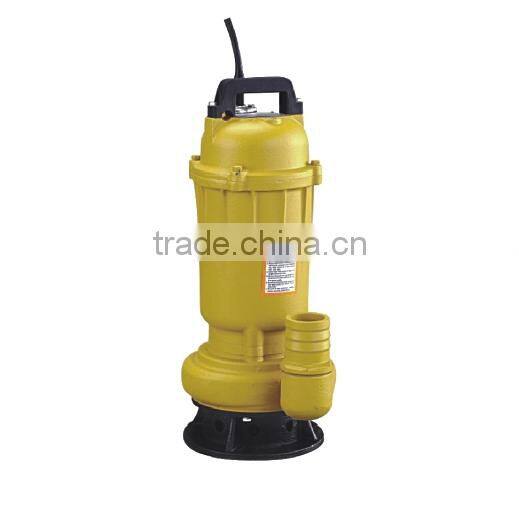

High Volume Submersible Water Pump for Farming Irrigation

FOB Price

US$ 8.9 - 19 / Piece

100 Pieces(Min. Order)

Port NINGBO
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BAQIU
Model Number	WQD	Theory	Other, submersible pump
Structure	Single-stage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	Low Pressure
Application	Submersible

Packaging Details

export standard strong colour carton

Product Description

high volume submersible water pump for farming irrigation

WQ(D) Application

WQ(D) Submersible sewage pump is composed of motor,water pump and sealing part.The water pump has

impeller-volute structure,and it is under the single or three phase asynchronous motor.Mechanical seal is used as the

motive seal between motor and water pump,and oil reasisting rubber O ring works as the static seal for the rabbet.

Thus,the reliability of our machine is ensured.Meanwhile,the rotor shaft is made of stainless steel,so reliable machanical

strength of the shaft is obtained,and the abrasion resistance and corrosion resistance of the shaft are both improved.

Also,it facilitates the disassembly and maintenance of impeller

Operating conditions

Our pump is able to work normally and continually if the following requirements are met.

Medium temperature:Not over +40℃

PH range of medium:4~10

Max.density of medium:1.2x103kg/m³

Voltage fluctuation range:10% of rated voltage

submersion depth:≤5meters

Motor

Single phase

Insulation class:B

Protection:IP44

Work shop area

BAQIU Company Introduction

1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,

Wenling China.We are integratd manufactural factory.

2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they

have won favorable views from customers both at home and aboard and passed some domestric.

3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe,

Australia and Southeast Asia etc.

4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying

service.We sincerely welcome all the friends from the world to join in us and develop together.

Packaging & Shipping

Shipping & Payment

1.FedEx/DHL/UPS/TNT for samples

2.Batch goods delivered by sea

3.Customers specifying freight forwarders or negotiable shipping methods

4.Delivery Time:7-15 days for samples; 25-30 days for batch goods

5.30%T/T or 100%LC,balance against the copy of B/L

More choices if you like ...

How to order?

1. Please tell us some detail information, such as the Capacity, Head, Medium, Voltage etc.

2. We can recommend pumps for you according to your requirements as well.

3. If you have the certificate requirements, please let me know.

4. We will make quotation for you. After your confirmation, PI will send to you.

5. We will arrange the order for you as soon as receiving your payment.

6. After the goods finished, we will send the goods to you.

7. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so any change of goods are available.

Await for your kind inquiry ! My co-worker and i will do our best to supply good service for you
