Product Details
| Place of Origin | Zhejiang, China | Brand Name | BAQIU PUMP | |
| Model Number | 1WZDB-45 | Theory | Other, Vortex Pump, Self prining | |
| Structure | Other, Single-stage Pump, Clean water | Usage | Water | |
| Power | Other, Electric, Electic | Standard or Nonstandard | Other, Standard, Standard | |
| Fuel | Other, electric, Electric | Pressure | Other, Low Pressure, High Pressure | |
| Application | Other, Sewage, Draw water |
STANDARD EXPORT COLOUR PACKING
Product Description

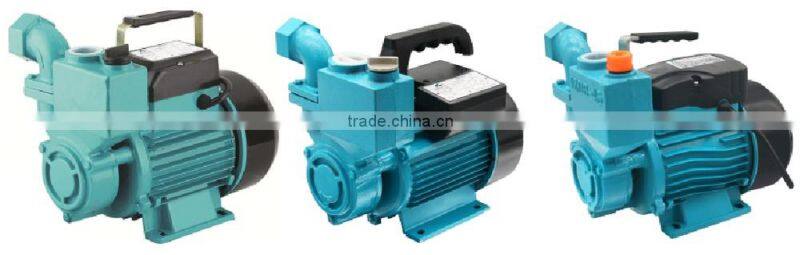

Single Stage Single Suction Pump,Centrifugal Pump
ZDB Series pumps are constituted with clean water pump, Non-return valve and air-water separation room which located on the upside of the pump body. During operating, no need to use foot valve, what you should do is just to leave some water in the pump body, after a few minutes running, the water will be sucked out relying on the pump body itself's effect. This series pumps are ideal equipments for household well water pumping.
| Application |
| *Clear water,non-aggressive liquid only without sand or other solid mppurites. |
| *Bigger suction with self priming. |
| *Low power. |
| *Installed in enclosed places,or at least protected against inclement weather. |
| Operating Conditions |
| *Suction lift up to 8m. |
| *Liquid temperature up to +40℃ |
| *Ambient temperature up to +40℃ |
| *Max. working pressure:6 bar. |
| Motor |
| *2-pole induction motor:50Hz. |
| *Insulation:Class B. |
| *Protection:IP 44. |
| *With capacitor and thermal overload protection. |
| Material |
| *Pump body:Cast iron. |
| *Motor bracket: Aluminum or Castiron. |
| *Impeller:Brass. |
| *Shaft with rotor:Stainless steel or Cs45#. |
| *Mechanical seal:Sillcon carbide-Graphite. |
| *Copper winding. |
RPM:n=2850 r/min
| TYPE | POWER | MAX.FLOW | MAX.HEAD | INLET/OUTLET | G.W | PACKING DIMENSION | |
| (Kw) | (Hp) | (L/min) | (m) | (Inch) | (Kg) | (mm) | |
| IZDB-35 | 0.35 | 0.5 | 40 | 35 | 1"×1" | 8 | 275×200×240 |
| IZDB-45 | 0.55 | 0.75 | 55 | 45 | 1"×1" | 9.5 | 295×200×260 |
| IZDB-55 | 0.65 | 0.9 | 55 | 55 | 1"×1" | 10 | 295×200×260 |
| IZDB-65 | 0.75 | 1 | 50 | 65 | 1"×1" | 10.5 | 295×200×260 |
