SW-PL1 2015 Food Grade PP Belt Packaging Machines

Overview:

1. Application:

It is mainly apply in food, metal and plastic industries, suitable for all solid granular products automatic weighing and packing, such as Rice, Pulses, Tea, Coffee beans, Candies / Toffees, Tablets, Cashews, Potato / Banana wafers, Snack foods, Fresh & frozen foods, Dried fruits, Pasta pieces, Detergents, Hardware items, Spices, Soup mixes, Sugar, nail, plastic ball, etc.

Available products

Bag Style

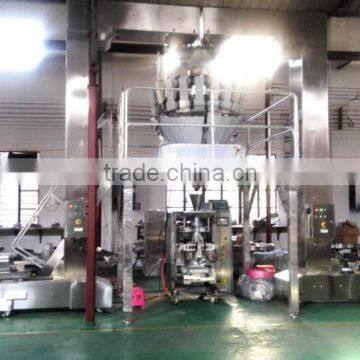

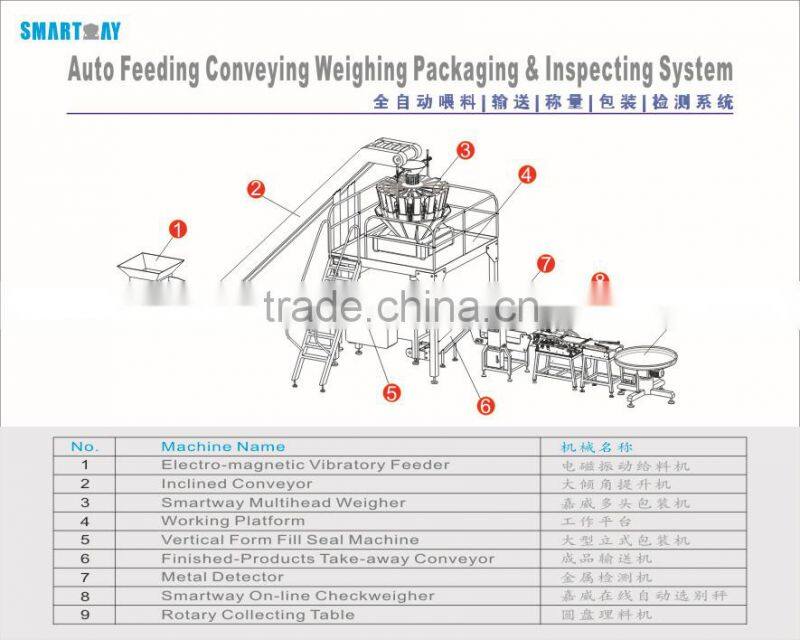

2. Machines List:

1). Z Bucket Conveyor
2). Multihead weigher (Available 10-24 head weigher)
3). Supporting Platform

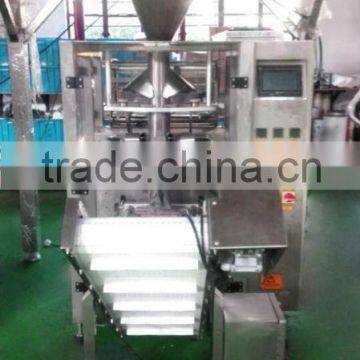

4). Vertical Form Fill Seal Machine (Bag width 50-400 mm)
5). Output conveyor
6). Metal Detector (OPTION)
7). Check weigher (OPTION)
8). Collect Table (OPTION)
9). Nitrogen Generator (OPTION)

3. Working Principle

1). Filling products on vibrator of Z bucket conveyor on floor;
2). Products will be lifted on the top of multihead weigher for feeding;
3). Multihead weigher will automatic weighing according to preset weight;
4). Preset weight products will be dropped to VFFS machine for bag sealing;
5). Finished package will be outputed to metal detector, if with metal machine will alarm, if not will go to check weigher
6). Product will be passed through check weigher, if over or less weight, it will be rejected, if not, pass to rotary table
7). Products will get to rotary table, and worker put them into paper box

Feature:

1). Fully-automatically procedures from material feeding, weighing, filling and bag-making, date-printing to finished products output;

2). High weighing precision and efficiency;

3). Multi-languages touch screen for various clients, English, French, Spanish, etc;

4). Food contact parts disassembling without tools, which is easier to clean;

5). Double film pulling belt with servo system

6). Designed and Manufactured in accordance with the CE Safety regulations

7). Only control touch screen to adjust bag deviation. Simple operation.

8). Film running auto centering as optional;

9). Air film roll bar for saving time while change finish running film roll.

Specifications:

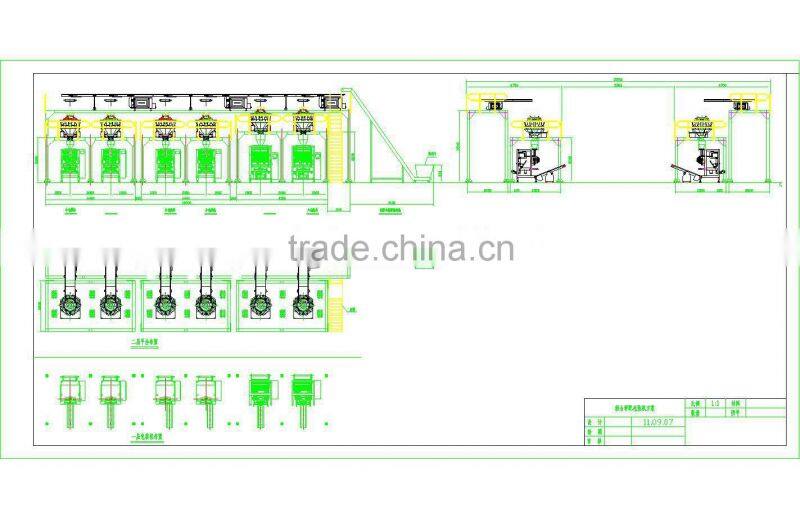

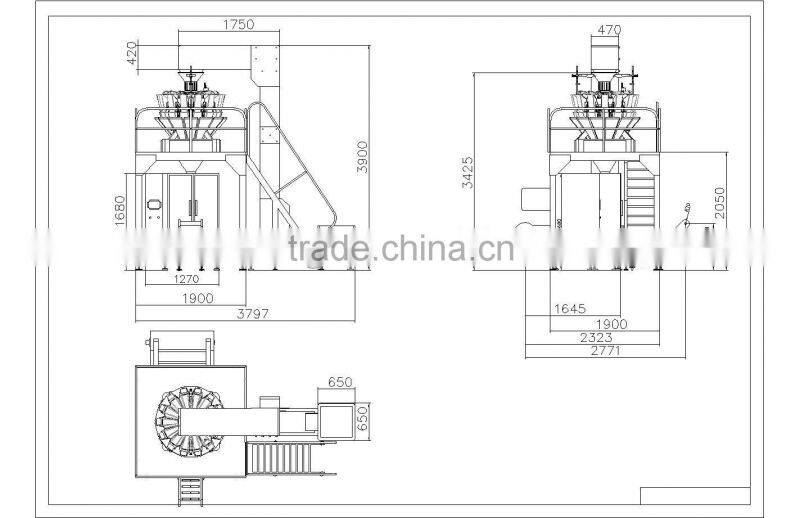

Drawing:

Options:

1. Feeding Machine

1). Vibration auto adjustment
Function: vibrator feeder will auto adjust vibration according to product volume inside the hopper

2). Water and air blow device
Function: auto cleaning and drying after daily work

3). SUS304 Gear
Function: apply in moisture environment

2. Filling Machine

1). 0.5L/1.6L/2.5L/5.0L hopper available
Function: suitable for all kind of volume products

2). Dimple Plate
Function: apply for sticky product

3). Timing Hopper
Function: shorter discharge distant

4). Mixture
Function: Mixing 2-4 kinds of product into one bag

3. Vertical Packaging Machine

1). Thermal Transfer Printer
Function: easy change printing content and layout

2). Bag Former
Function: for different bag width

3). Gusset bag/Euro Hole/Easy Open
Function: different bag shape

Packing and delivery:

1. Polywood case,

2. delivery: 20 days for production

3. warranty: 15 months of the date delivery
