Shandong Famous Brand Landfill Compactor for Rubbish Quality Choice
- Qingdao port
- T/T Money Gram
You May Like
Product Details
| Condition | New | Application | road compactor | |
| Power Type | Diesel | Brand Name | shangong | |
| Model Number | sem6020 | Place of Origin | Shandong, China | |
| Power(W) | 129kw | Dimension(L*W*H) | 6165*2340*3175mm | |
| Weight | 22T | Certification | iso9001 | |
| Warranty | 1500h | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.sem6020 landfill compactor2.World class technology background
3.Top brand engines
4.World class hydraulic components

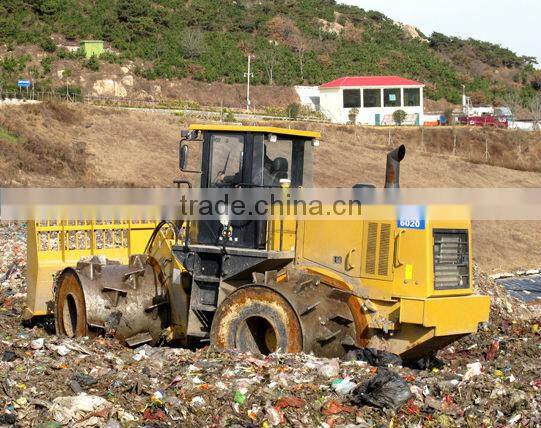

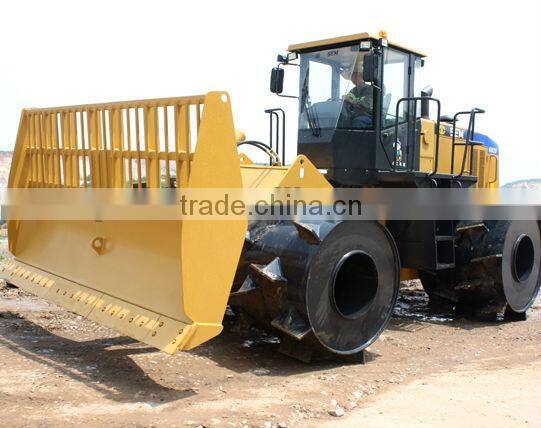

shandong famous brand landfill compactor for rubbish
Overview
•Weichai in-line 6-cylinder, water cooled, turbo-charged, direct injection diesel engine with optional cold start system
•World class articulated truck technology providing better reliability and durability
•Steel wheel-Caterpillar patented chopper teeth technology with unique structure
•Torque converter isolated from countershaft transmission structure
•Both front and rear axles use complete slip-limited differentials, four-wheel drive, wet brake applied for front axle
•Spacious and air conditioned cab with optional ROPS
•Bottom guard prevents ingress of waste into the machine and engine compartment
•Cooling system adopts frame structure design--good cooling capability and good reliability
•The key components in the hydraulic and electric systems are all imported from world-famous manufacturers, ensuring good reliability and long service life.
Main Specifications |
|
Operating Weight | 20,000 kg |
Rolling Width | 3,530 mm |
Wheelbase | 3,300 mm |
Gradeability | 58% |
Swing Angle | ±10º |
Ground Clearance | 523 mm |
Overall Dimension L*W*H | 7310x3530x3370mm |
Engine |
|
Model | Weichai WD10G220E |
Rated Gross Power | 162 kW/217 hp |
Brake System |
|
Brake Type | Wet Brake |
Wheel |
|
Wheel With (F/R) | 1,200 mm |
Wheel Diameter (F/R) | 1,400 mm |
Teeth QTY | 28 |
Steering |
|
Min.Turning Radius | 7,200 mm |
Steering Angle | ±36º |
Blade |
|
Blade Height | 1,965 mm |
Blade Angle | 3,658 mm |
Optional equipment
Standard
WEICHAI Engine
SEM House-made transmission
SEM House-made axle

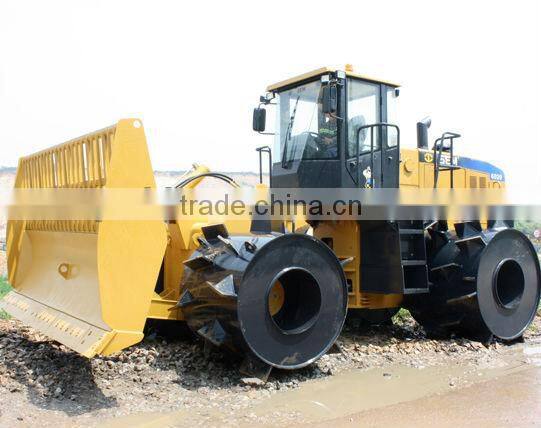

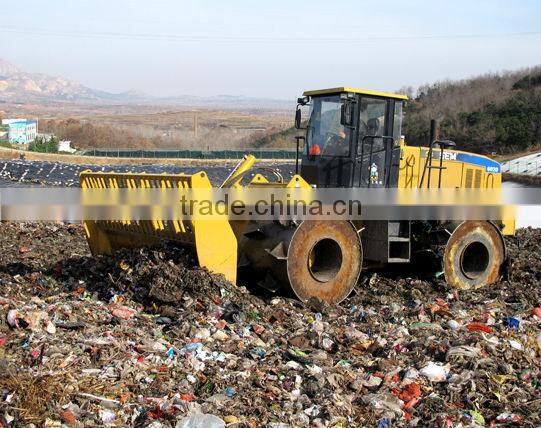

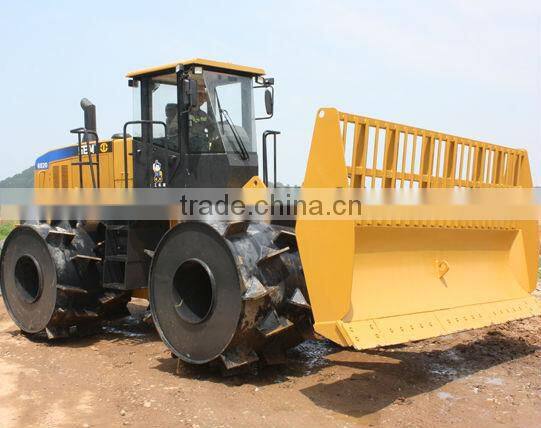

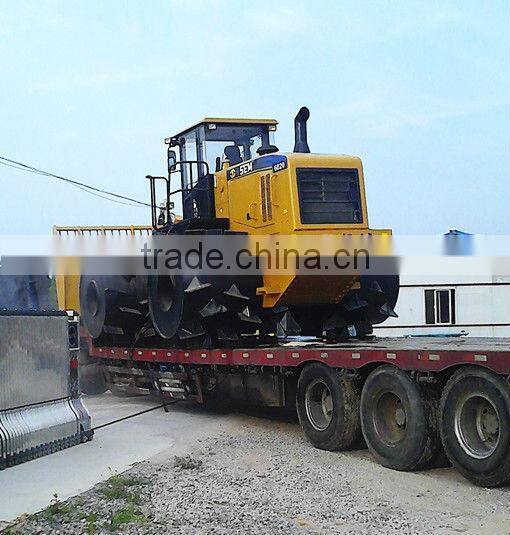

more details about the compactor

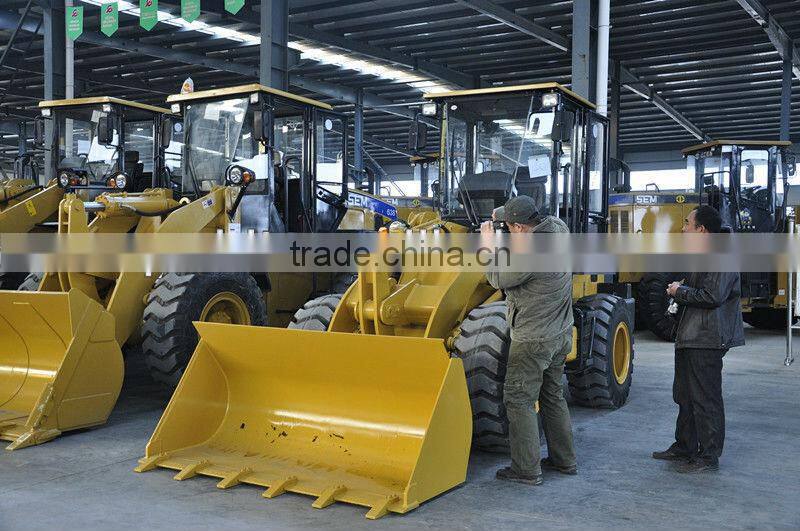

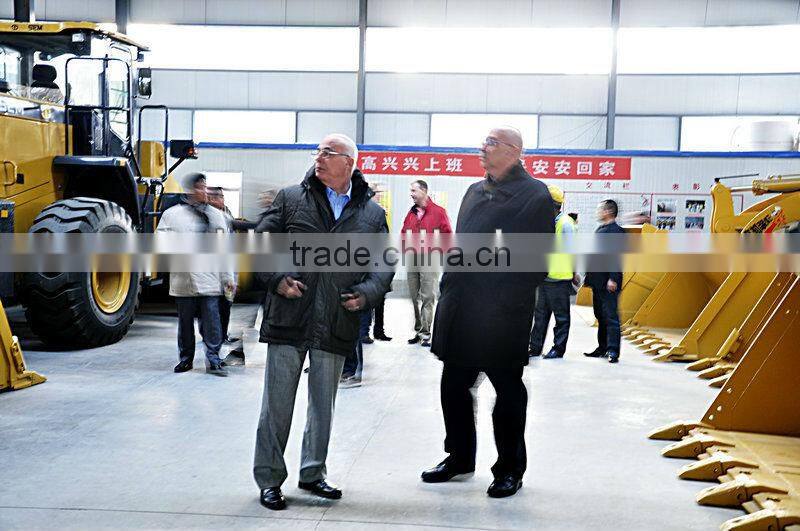

the visitors in our factory in qingzhou the biggest production base of construction machinery equipment
About CHANGHUI
Engaged in machinery package, assembly and disassembly for import and export, Changhui have the completely autonomous management about import and export. Besides, freight forwarders and principal-agent import & export business is also included.
We focus on engineering machinery import & export and domestic trading, including Wheel loader, backhoe loader, forklift loader,mining loader,underground loader,mucking loader,electric loader, Sand-excavating ship,dredger vessels, grader, Forklift,placer gold extraction equipment system of sand & sand washing equipment and other farm equipment construction machinery.The series of the loader include SEM SAM SWM SZM LQ LOVLO XCMG SDLG HYUNDAI DOOSAN KOMATSU YN YX WZ ZL etc.
