Home > Products > PP spunbond production line for nonwoven fabric > PP Spunbonded Production Line for Non-woven
PP Spunbonded Production Line for Non-woven
US$ 300,000 - 680,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | MS/ZR | |
| Model Number | 1600mm/2400mm/3200mm | Voltage | 380V | |
| Power(W) | 700KW | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Description
PP spunbonded production line directly uses polypropylene as raw material into mesh by melt spinning, then makes it into fabric by strengthening with thermal bonding. It is suitable for medical sanitary material, agriculture fabric, furniture decoration and packing materials, etc..
2. Follow chart of production:
Raw material---- Melting extrusion---Filtering----Measuring---Spinning--Cooling-----stretching----Net making----Heating pressure---winding---slitting----final product
Raw material---- Melting extrusion---Filtering----Measuring---Spinning--Cooling-----stretching----Net making----Heating pressure---winding---slitting----final product
A. PP Spunbonded non-woven production line
1)The whole line is well structured and easy to operate
2)The whole line is highly automated
3)Control elements are of well-know make, high performance and reliable technologies
4)The whole line are controlled by PLC and operated with touch-screen
5)The allocation of the main frame and auxiliary equipment can be Special designed and adjusted according to customers requirement.
1)The whole line is well structured and easy to operate
2)The whole line is highly automated
3)Control elements are of well-know make, high performance and reliable technologies
4)The whole line are controlled by PLC and operated with touch-screen
5)The allocation of the main frame and auxiliary equipment can be Special designed and adjusted according to customers requirement.
| B. Technical parameter specification | ||||
| ITEM | EFFECTIVE | GSM | ANNUAL OUPUT | EMBOSSING PATTERN |
| S | 1600mm | 10-200 | 1500T | Diamond, oval, cross and line |
| S | 2400mm | 10-200 | 2400T | Diamond, oval, cross and line |
| S | 3200mm | 10-200 | 3000T | Diamond, oval, cross and line |
| SS | 1600mm | 10-200 | 2500T | Diamond, oval, cross and line |
| SS | 2400mm | 10-200 | 3300T | Diamond, ovial, cross and line |
| SS | 3200mm | 10-200 | 5000T | Diamond, ovial, cross and line |
C. Service
1). Delivery:
We can assemble the line before delivery and invite you come to our factory to inspect the equipment as per your requirement if needed. When you accept the quality of the line, then we will arrange delivery.
2). Training and Installation:
When you receive the whole equipment, we will send 4-5 engineers to your factory for installation and testing. Meanwhile, we will train your workers how to operate the line and normal daily maintenance..
3). After-sales service
In the following year, if you have any problems of the production line, you can send e-mail to us to consult or invite our engineer for service at your site. We will send the professional engineers to help you to solve the problems timely..
1). Delivery:
We can assemble the line before delivery and invite you come to our factory to inspect the equipment as per your requirement if needed. When you accept the quality of the line, then we will arrange delivery.
2). Training and Installation:
When you receive the whole equipment, we will send 4-5 engineers to your factory for installation and testing. Meanwhile, we will train your workers how to operate the line and normal daily maintenance..
3). After-sales service
In the following year, if you have any problems of the production line, you can send e-mail to us to consult or invite our engineer for service at your site. We will send the professional engineers to help you to solve the problems timely..

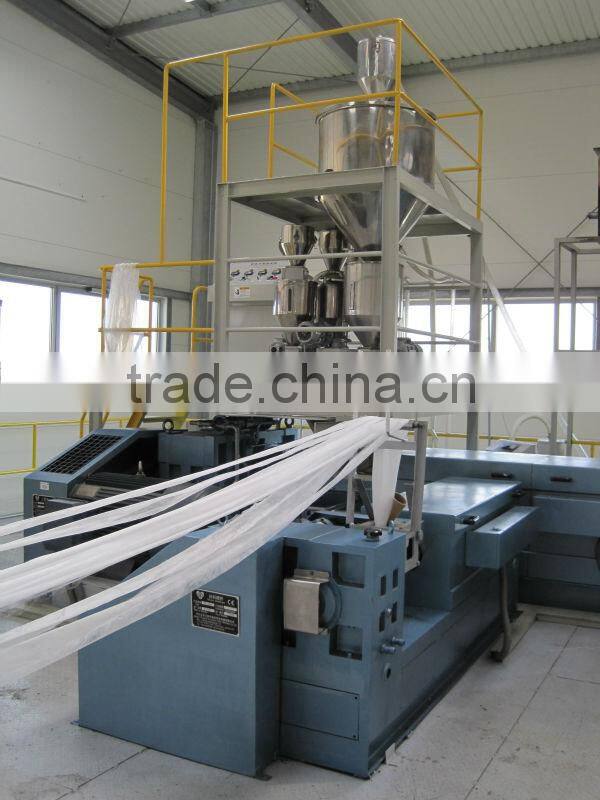

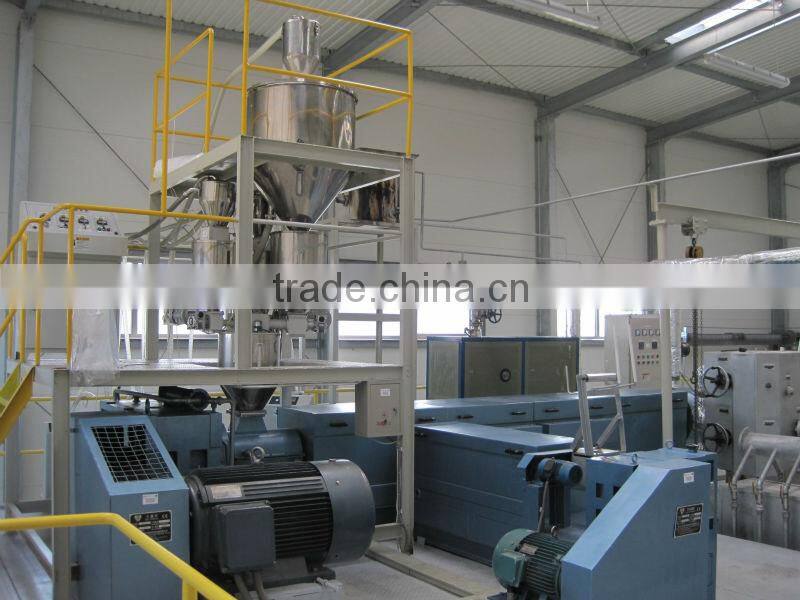

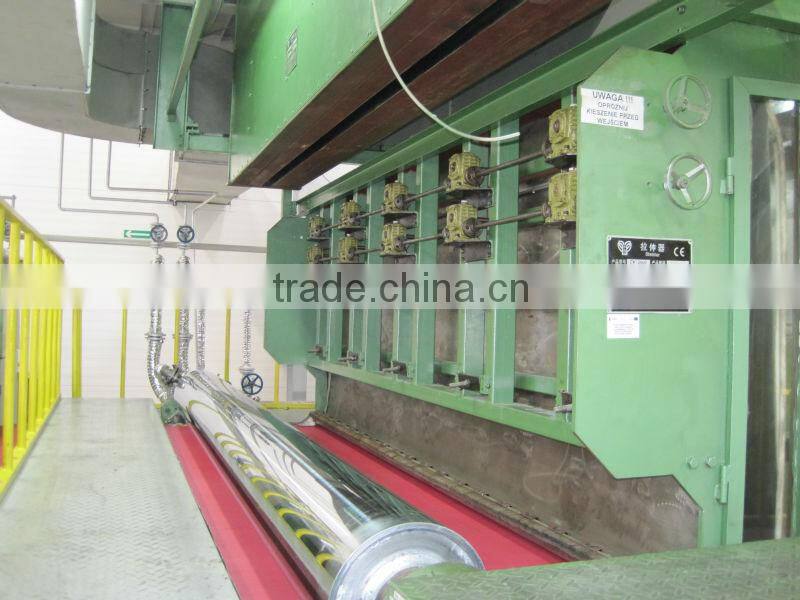

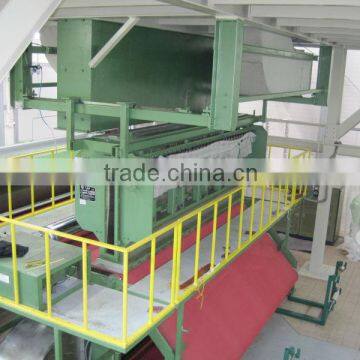

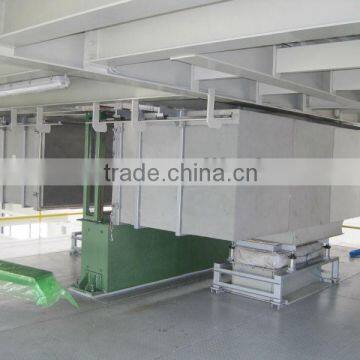

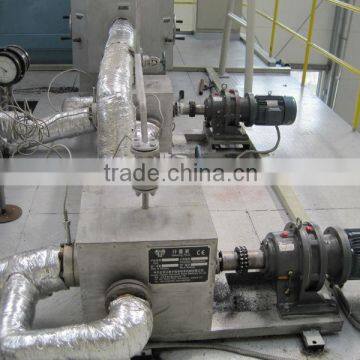

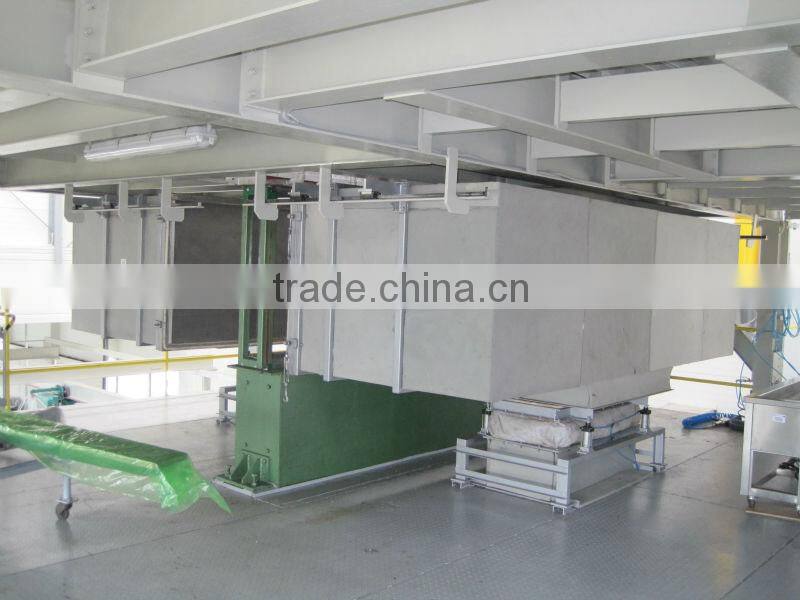

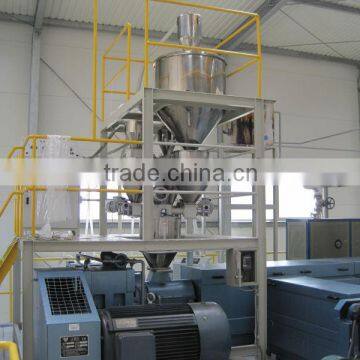

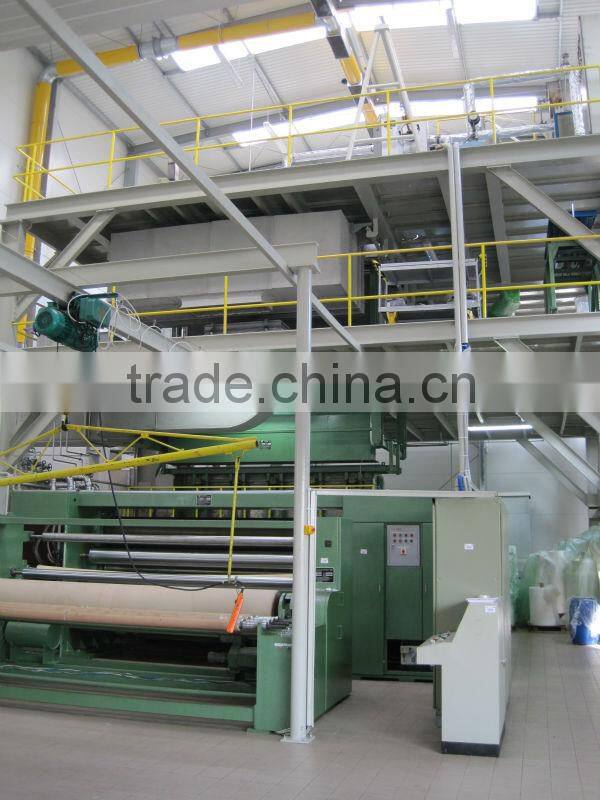

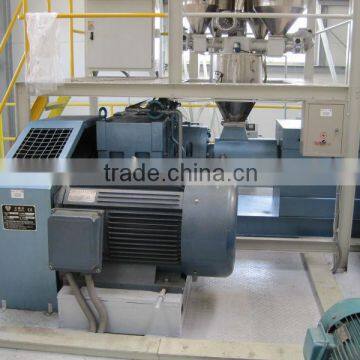

3. Pictures
