Deep Water Excavator Undercarriage, Model: JYFT-170

Place of Origin	Shandong, China		Brand Name	JINYI
Model Number	JYFT-170		Condition	New
Moving Type	Crawler Excavator		Operating Weight	35Ton
Machine Weight	17Ton		Rated Speed	7-9 Km/Hour
Certification	ISO9001, CE		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1.6mm Thick steel board, 3 chains on each pontoon
2.Assemble Doosan or ETON walking motor
3.Quality warranty 2 year or 2500H



We are one of  the biggest manufacturers of swamp excavators(amphibious excavator) in China,specialized in design, manufacturing and supplying kinds of dredging equipment, i.e. JYSL series Amphibious Excavators (swamp excavators), JYFT series Floating Pontoon (swamp undercarriages), long reach boom and sticks etc. We produce amphibious excavators with operating weight 15-65 Ton.The JYFT series pontoon we produced can be fitted to the upper part of 8-30 ton normal excavators, e.g. Caterpillar, Hitachi, JCB, Volvo, Komatsu, Kobelco, Daewoo, Doosan, Sumitomo and so on. In this case, customers could easily change their normal excavator to swamp excavator. Customers are better to provide us with sizes of central joint and swing bearing. We will design mounting frame for connection of upperstructure and undercarriage.





APPLICATION of JYSL series amphibious excavator:

1.Deepening of canal, river channel and river mouth

2.Swamp land clearing at mining area, plantation and forest

3.Building bund for flood prevention and land reclamation

4.Building bund wall for fish and shimp ponds and salt making industry

5.Sludge clearing of lakes, ponds and water reservoir

6.Digging trenches for oil and gas piping installation

7.Transporting and clearing landslide and flood hit area

8.Swamps and wetlands construction

9.Road construction through wetlands.







Specification of JYFT-170 Floating Pontoon:

Model of Pontoon Undercarriages			JYFT-170
Pontoon Undercarriage
	Pontoon Size	Weight of Pontoon, (Ton)	17
		Length of Pontoon, (mm)	10000
		Width of Pontoon, (mm)	1500
		Height of Pontoon, (mm)	1840
		Number of Compartments	3
	DOOSAN brand walking motors		√
	3 independent compartments in each pontoon		√
	Internally Strengthening Design inside Pontoon		√
	Heavy Duty Track System		√
	Heavy Duty and Ph-resistant Steel Material		√
	Anticorrosion Paint plus Finishing Paint		√
Reinforced Heavy Duty Bottom		√
Steel Materails of Track Rollers		√

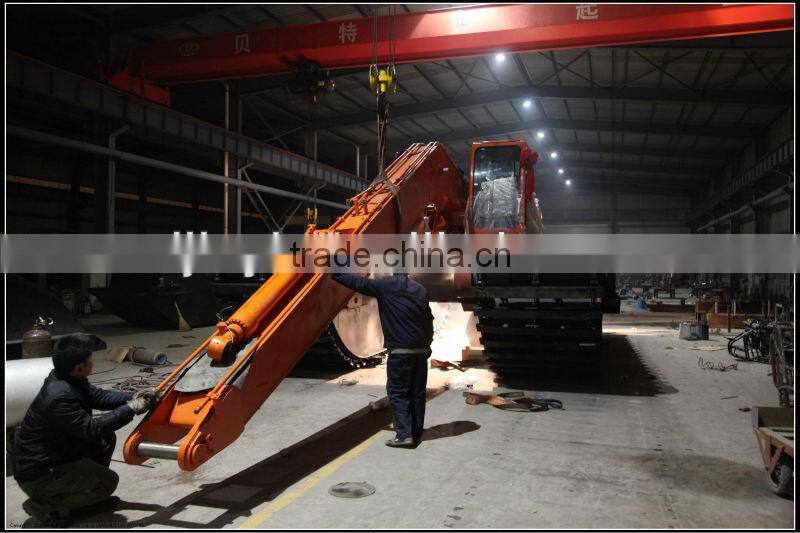

Production of JYFT floating pontoon:

Buyers Visiting

Installation of JYSL steel pontoon

JYSL Amphibious Excavator working performance:

We also produce chains and tracks:
