14 Ton Germany Type Semi-trailer Axle
- qingdao
- T/T Credit Card
You May Like
Product Details
| Parts | Trailer Axles | OEM No. | kt-156994 | |
| Max Payload | 16ton | Size | 13ton 14ton 16ton 20ton | |
| Place of Origin | Shandong, China | Brand Name | KETIAN | |
| Model Number | KTG |
Product Description

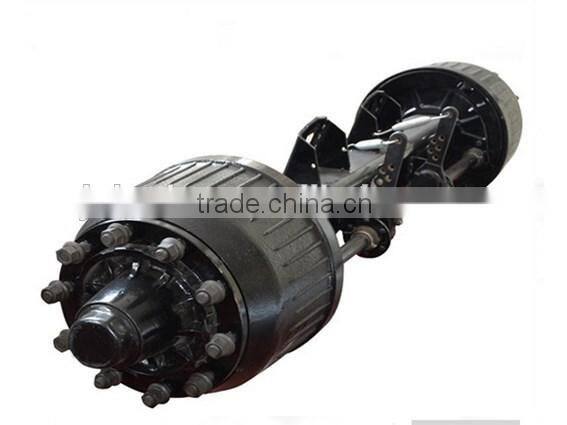

14 ton germany type semi-trailer axle
1)Reasonable structure.
2)Good bracking quality .
3)High-intensity.
4)Big rigidity.
5)Long life as well as strong bearing capacity.
6)Passed the national authoritative department ’s monitor.

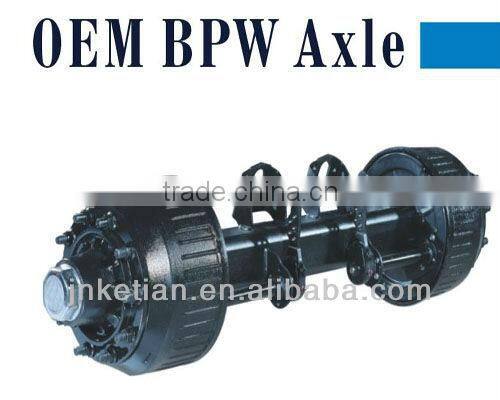

Semi trailer spare parts BPW German Axle
Information:
1. Max Capacity: 14000
2. Distance of Chamber: 355mm
3. Track: 1840mm
4. Axle Beam: 150
5. Brake Size: 420x200
6. Length: 2188mm
7. Bearing: 33215/33119
8. Weight: 416kg

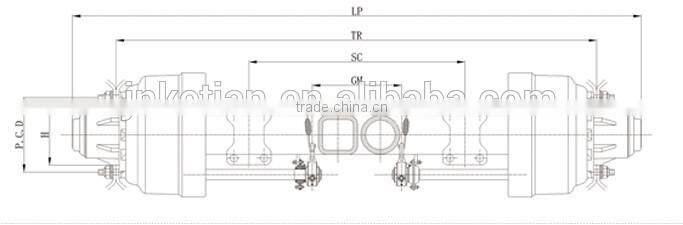

Trailer Axle specification:
German type axle
Model | Rated Load | Total Length | Track | Axle Tube (mm) | P.C.D (mm) | H | Studs |
KTG-12T | 12000 | 2144 | 1840 | 150*150*12 | Φ335 | Φ281 | 10-M22*1.5 ISO |
KTG-14T | 14000 | 2198 | 1840 | 150*150*14 | Φ335 | Φ281 | 10-M22*1.5 ISO |
KYG-16T | 16000 | 2272 | 1850 | 150*150*16 | Φ335 | Φ281 | 10-M22*1.5 ISO |
American type axle
Model | Rated Load | Total Length (mm) | Track | Axle Tube (mm) | P.C.D (mm) | H | Spring | Studs |
KTA-10.5T
| 10500 | ~2165 | 1820 | Φ127 | Φ335 | Φ281 | ≥950 | 10*M22*1.5 |
KTA-13T
| 13000 | ~2185 | 1840 | Φ127 | Φ335 | Φ281 | ≥930 | 10*M22*1.5 |
KTA-13T
| 13000 | ~2185 | 1840 | 150*150 | Φ335 | Φ281 | ≥930 | 10*M22*1.5 |
KTA-14T
| 14000 | ~2185 | 1840 | 150*150 | Φ335 | Φ281 | ≥930 | 10*M22*1.5 |
KTA-16T
| 16000 | ~2205 | 1850 | 150*150 | Φ335 | Φ281 | ≥940 | 10*M22*1.5 |
KTA-20T
| 20000 | ~2252 | 1850 | 150*150 | Φ335 | Φ281 | ≥940 | 10*M24*1.5 |
14 ton germany type semi-trailer axle
Our mainly productions:
1)fifth wheels (2" and 3.5"),
2)king pins (2" and 3.5",weldable and Bolton),

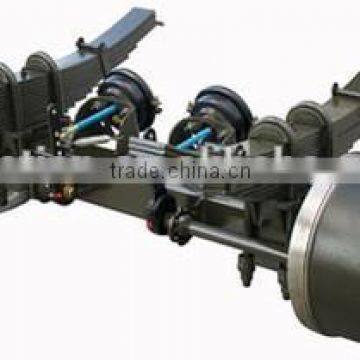

3)suspensions (bogie, spoke bogie, American suspension and German suspension etc),
4)axles (American and German, BPW type and FUWA type,spokeaxle, low loader, concave axle),
5)landing gears (inboard gear and outboard gear),
6)other components like twist container locks, screw locks, brake chamber, wheels, tires, and other functional components are also available.

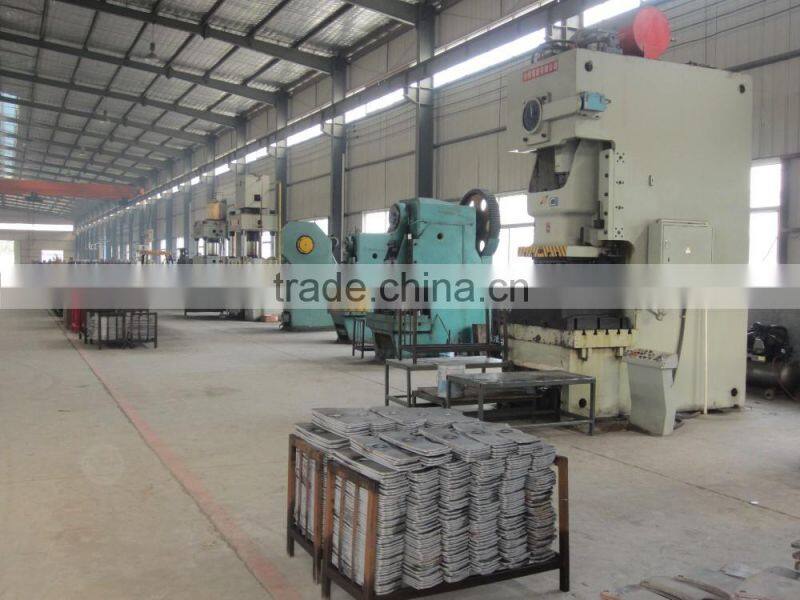

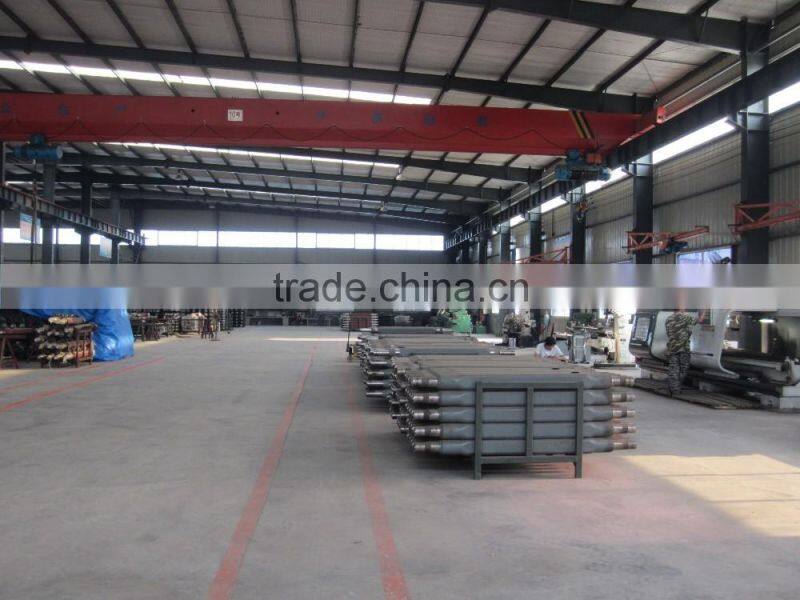

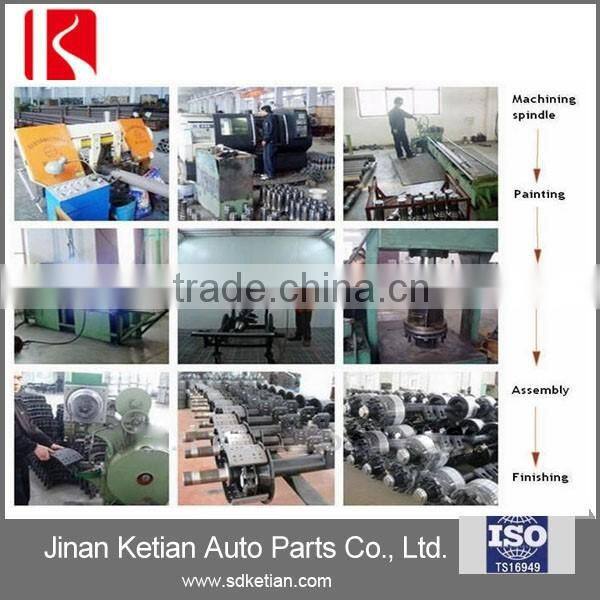

Our Factory

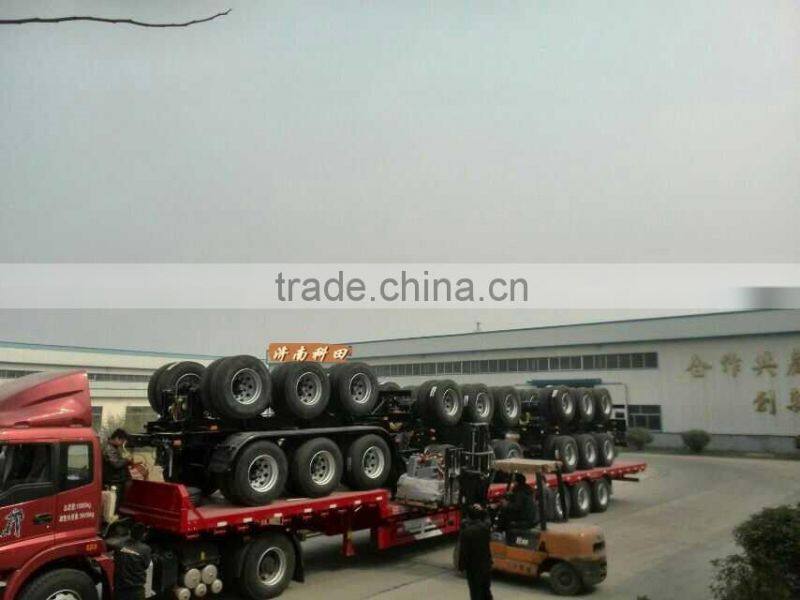

Our Show
Our Certificate
Welcome to patronize!Thanks!
Contact Us
- Jinan Ketian Auto Parts Co., Ltd.
- Contact namejuan deng Chat Now
- Phone86-0531-88154588
- Address604, Bldg. 2, Xiyuan Mansion, Huaiyin Dist.
