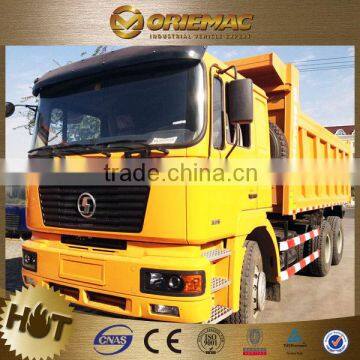

Shacman truck dumper SX3254JM384 6X4 dumper price

Cabin

Air suspension MAN F2000 cab, sleeper, hydraulic shock absorb adjustable seat,

safety belt, adjustable steering, warm air system, sunroof, sun cap, bumper

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WD615.50

European technology WEICHAI with MAN EVB technology

MAX Horse power:

290HP/213KW

Gear box

Applied American technology

Max torque:1350NM

Model:

FAST 9JS135

Speed:

9speed, 1reverse

Axle(front/rear)

Front axle

7.5ton MAN technology non-driving steering axle

Tandem

13ton STEYR technology double reduction, hub redactor driving axle,

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting.

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)

Steering

ZF technology, driver sit at the left hand side

Tyre

10+1 spare tyre with rim

11.00-20 bias tyre

Suspension system: strongthen heavy duty Leaf spring type

Front/Rear

10/12

Dump body:

Inside size of Body(mm): 5600x2300x1500, 8x6mm, made of high intensity steel

Lifting type: Middle lifter “T” type hydraulic system. Refer to picture

Overall dimension(mm): 8329x2500x3450(Length x width x height)

Wheelbase

3800+1350mm

Track:

Front/Rear

2035/1850

Approach/Departure angle

28/30

Front /Rear overhang

1525/1654

Max speed

77km/h

Kerb weight:

12500kg

Oil tank capacity

300L fuel tank
